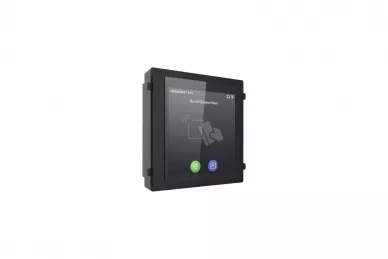

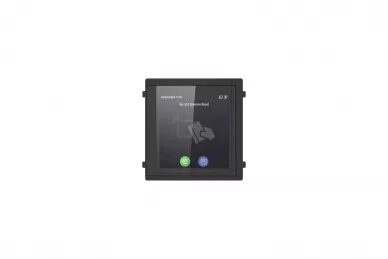

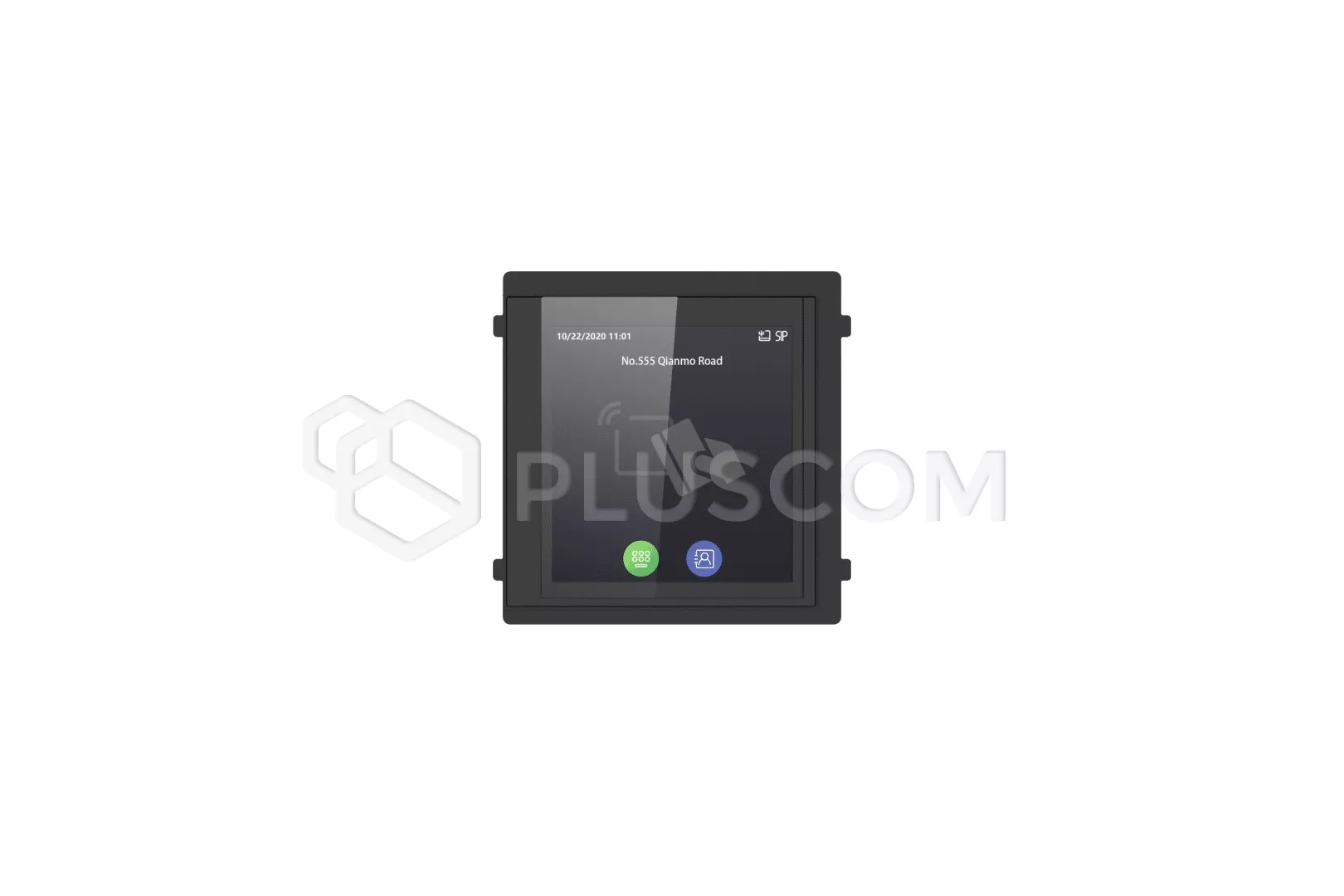

Hikvision DS-KD-TDM


Technical parameters:

System parameters

  • Operating system: Linux
  • ROM: 32 MB
  • RAM: 128 MB

Display parameters

  • Screen size: 4-inch
  • Type: IPS touch screen
  • Resolution: 480 x 480
  • Brightness: 500 cd/m2

Audio parameters

  • Audio compression standard: /
  • Audio input: /
  • Audio output: Buzzer
  • Audio quality: /
  • Volume adjustment: /
  • Power output: /

Network parameters

  • Wireless network: Only AP mode

Authentication

  • Card reading frequency: 13.56 MHz
  • Card reading distance: 2 cm
  • Card type: Mifare card

Device interfaces

  • TF card: Reserved
  • DIP switch: 8 bits
  • Cascade interface: 2

General

  • Installation: Surface, flush
  • Protective level: IP65, IK8
  • Working temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimensions: 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
  • Power supply: 12 VDC, supplied by the main module
  • Power consumption: ≤ 4 W
  • Language: English,French,Portuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
