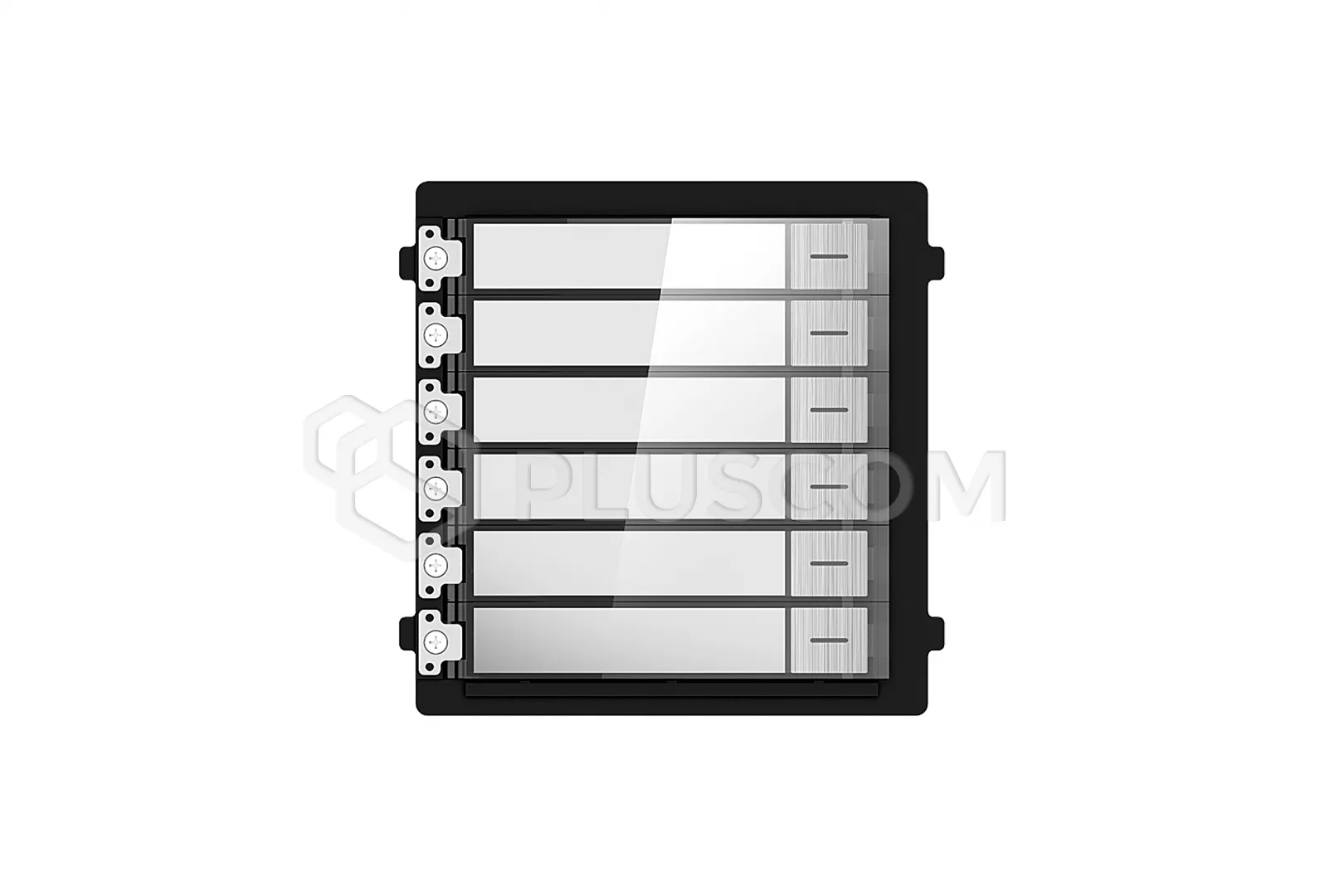

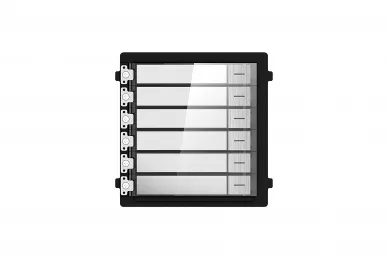

Hikvision DS-KD-KK business card holder module

53,84 EUR including 23.00% VAT
Product code: #22493
Manufacturer: Hikvision
  • 6 buttons with backlight
  • 6 slots for a business card
  • Configured with iVMS-4200
  • Requires the DS-KD8003-IME1 or DS-KD8003-IME2 module
  • Tightness class: IP65
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

HIKVISION DS-KD-KK Business card holder


DS-KD-KK is a business card holder module, dedicated to work with a video intercom module DS-KD8003-IME1 or DS-KD8003-IME2, through which the power is supplied, 2nd generation Hikvision IP video intercom system. To the main features and the tasks of the module include:
  • calling the subscriber's number
  • making a video call
  • 6 backlit keys and business card slots
  • configuration with iVMS-4200
  • RS485 input and output

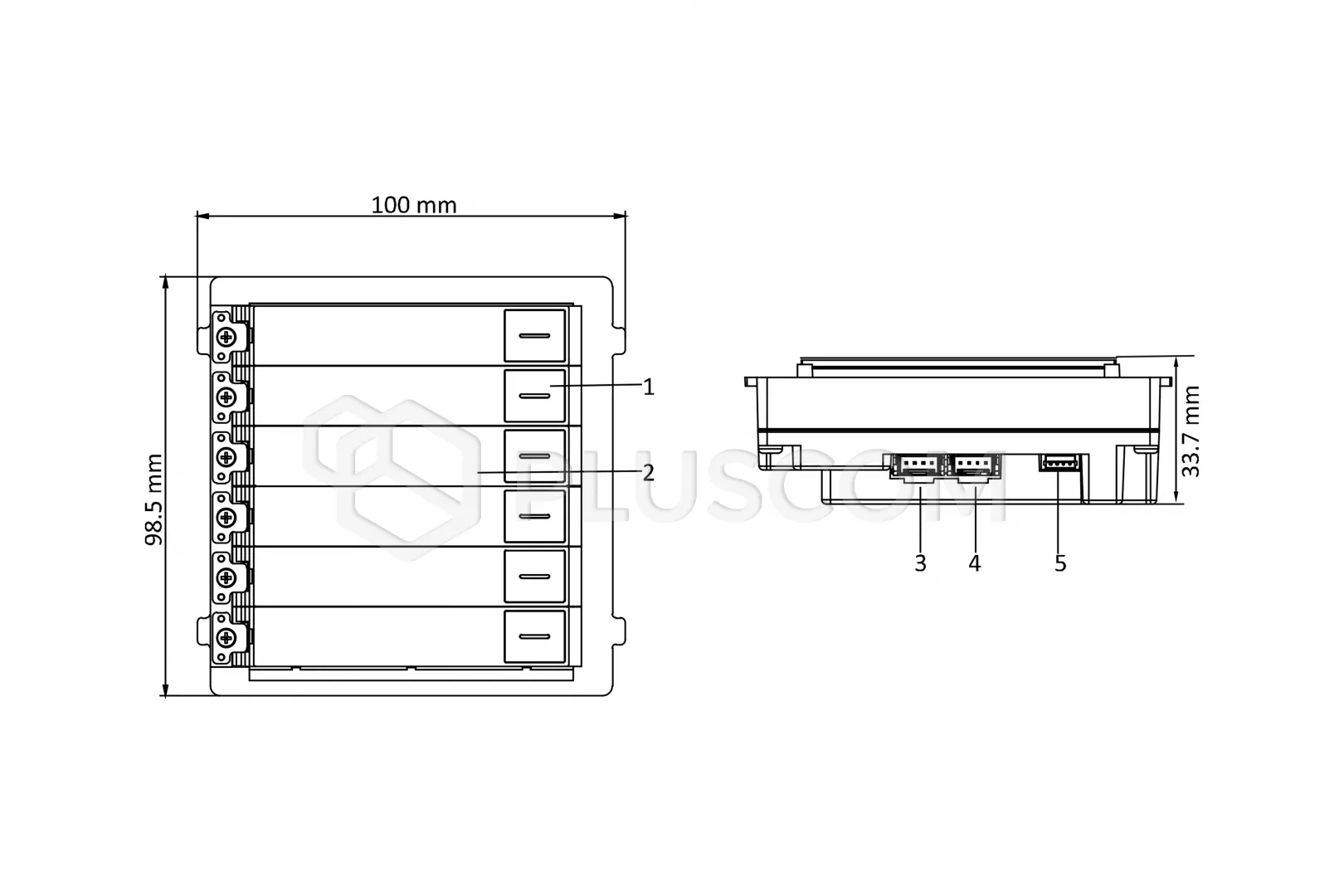

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • Processor: Embedded MCU Processor
  • Moduleconnecting: 2 (1 input, 1 output)
  • Debug: 1
  • Physical button: 6
  • DIP switch: 8
  • Powered by DS-KD8003-IME1
  • Power consumption: ≤ 2 W
  • Working temperature: -40° C to +55° C
  • IP protection level: IP65
  • Dimension: 98.2 × 100.2 × 33.7 mm
  • Weight: 190 g
Download
Datasheet 0.67 MB
User manual 3.59 MB
