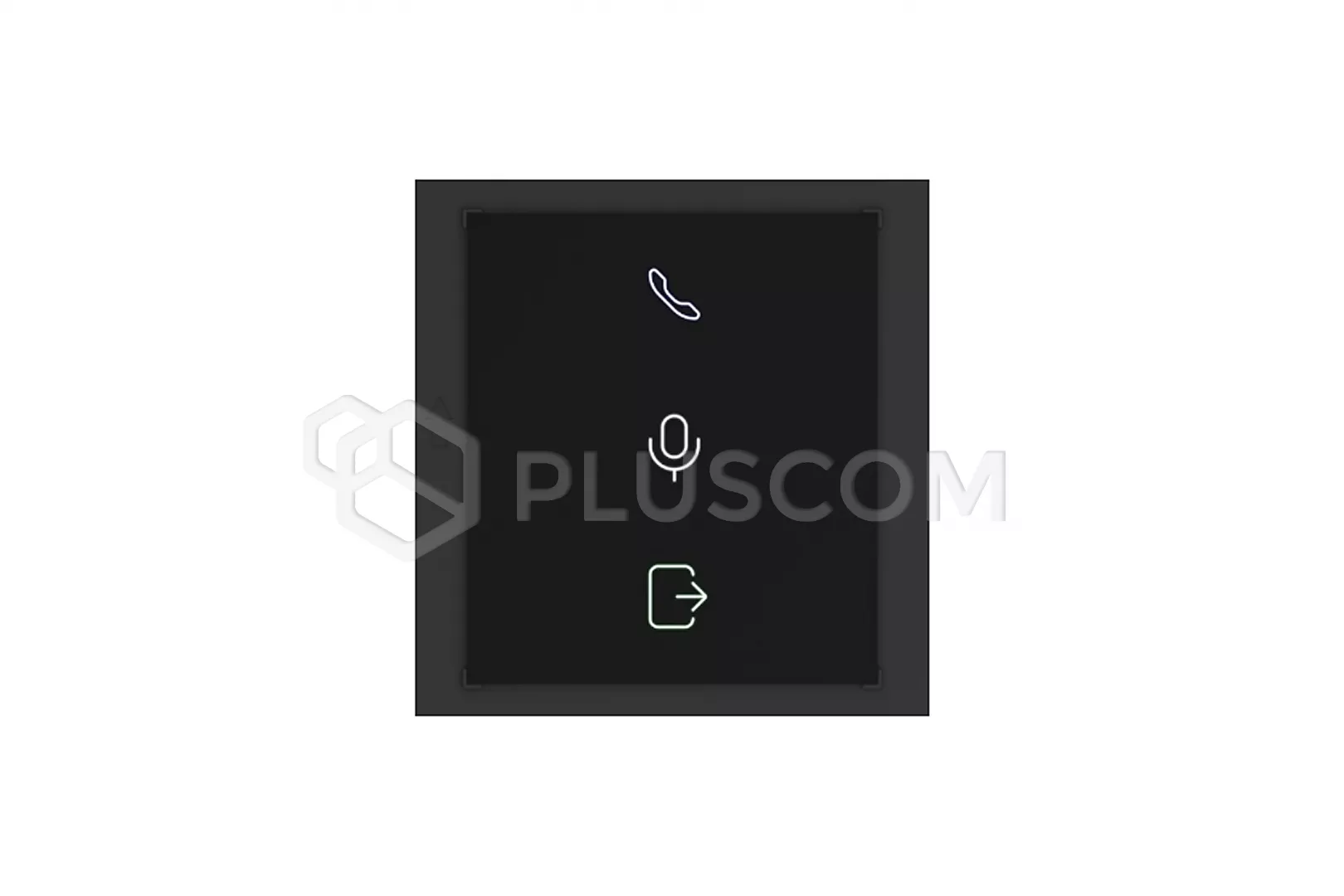

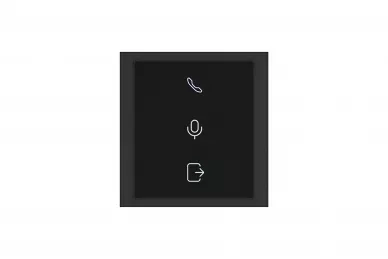

Hikvision DS-KD-IN Indicator module

44,90 EUR including 23.00% VAT
Product code: #22496
Manufacturer: Hikvision
  • Illuminated icons informing about the door station status
  • Information about the opening status of the wicket
  • Configured with iVMS-4200
  • Requires the DS-KD8003-IME1 or DS-KD8003-IME2 module
  • Installation in dedicated housings
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Hikvision DS-KD-ACW3 Surface-mounted housing Hikvision DS-KD-ACW1 Surface-mounted housing Hikvision DS-KD-ACW2 Surface-mounted housing

HIKVISION DS-KD-IN Indicator module


DS-KD-IN is an indicator module, dedicated to work with a video intercom module DS-KD8003-IME1 or DS-KD8003-IME2, through which the power is supplied, 2nd generation Hikvision IP video intercom system. To the main features and the tasks of the module include:
  • signaling about establishing connection
  • signaling about the conversation
  • signaling about opening the gate
  • configuration with iVMS-4200
  • two RS485 connectors

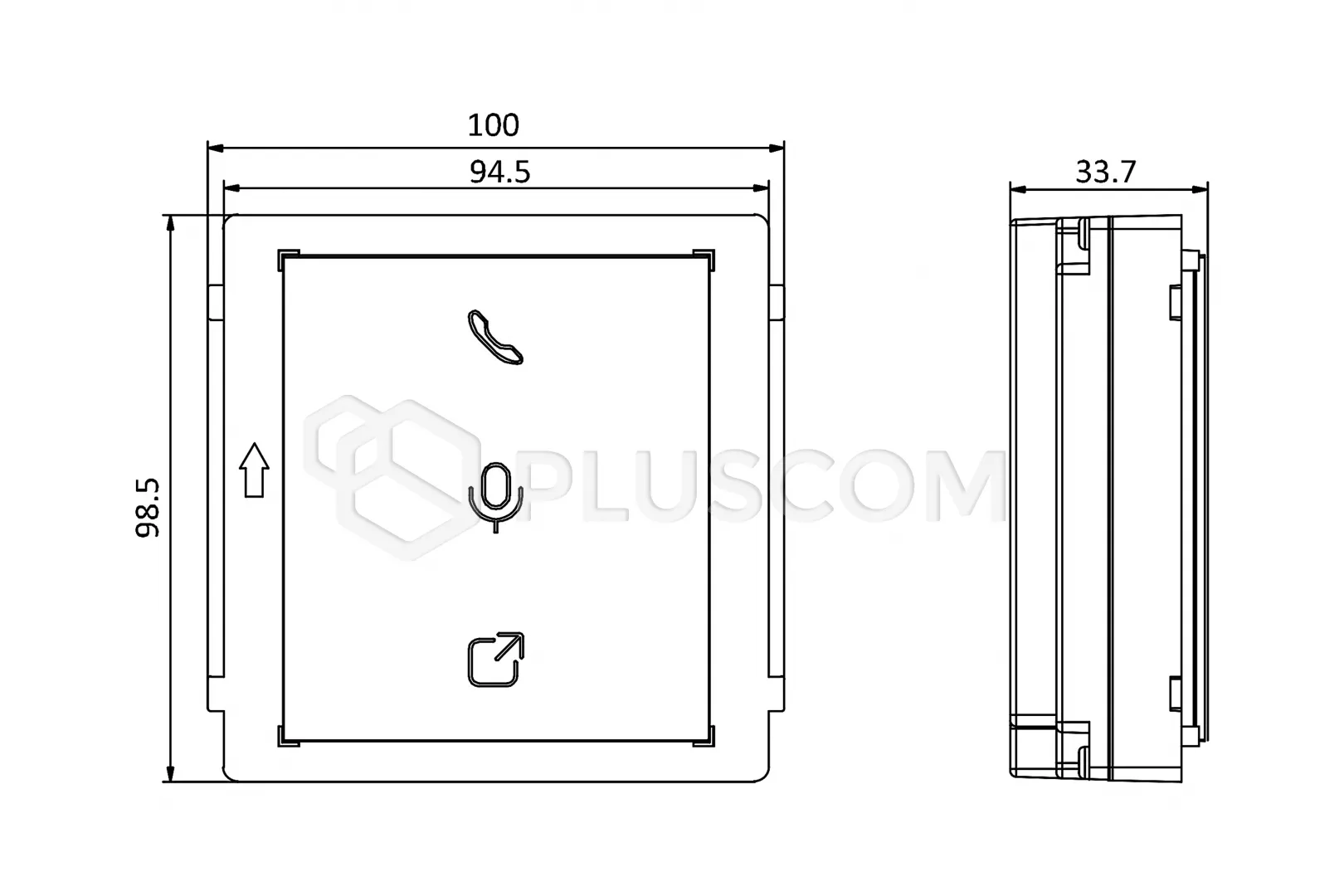

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • processor: Embedded MCU
  • illuminated icons
  • interface:
    • 1x input (RS-485)
    • 1x output (RS-485)
    • 1x Debug
  • power supply: 12V via DS-KD8003-IME1 or DS-KD8003-IME2
  • power consumption: ≤ 2W
  • working temperature: -40 ° C ... 60 ° C
  • tightness class: IP65
  • dimensions: 98.5 x 100 x 33.7 mm
  • weight: 165g
Download
Datasheet 0.91 MB
