Hikvision DS-KAW50-1N Power supply

28,24 EUR including 23.00% VAT
Product code: #18388
Manufacturer: Hikvision
  • Output voltage 12 V DC (11-14V DC)
  • Number of output: 1
  • Protection SCP, OLP, OVP
  • LED power indicator
  • Dimensions: 98×97×38mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-KAW50-1N Power supply 12 VDC/4,2 A/50W

The Hikvision DS-KAW50-1N power supply is designed for supplying 12V DC, Hikvision door station and video intercoms.
The cooling of the PSU is carried out with free air flow. LED power indicator

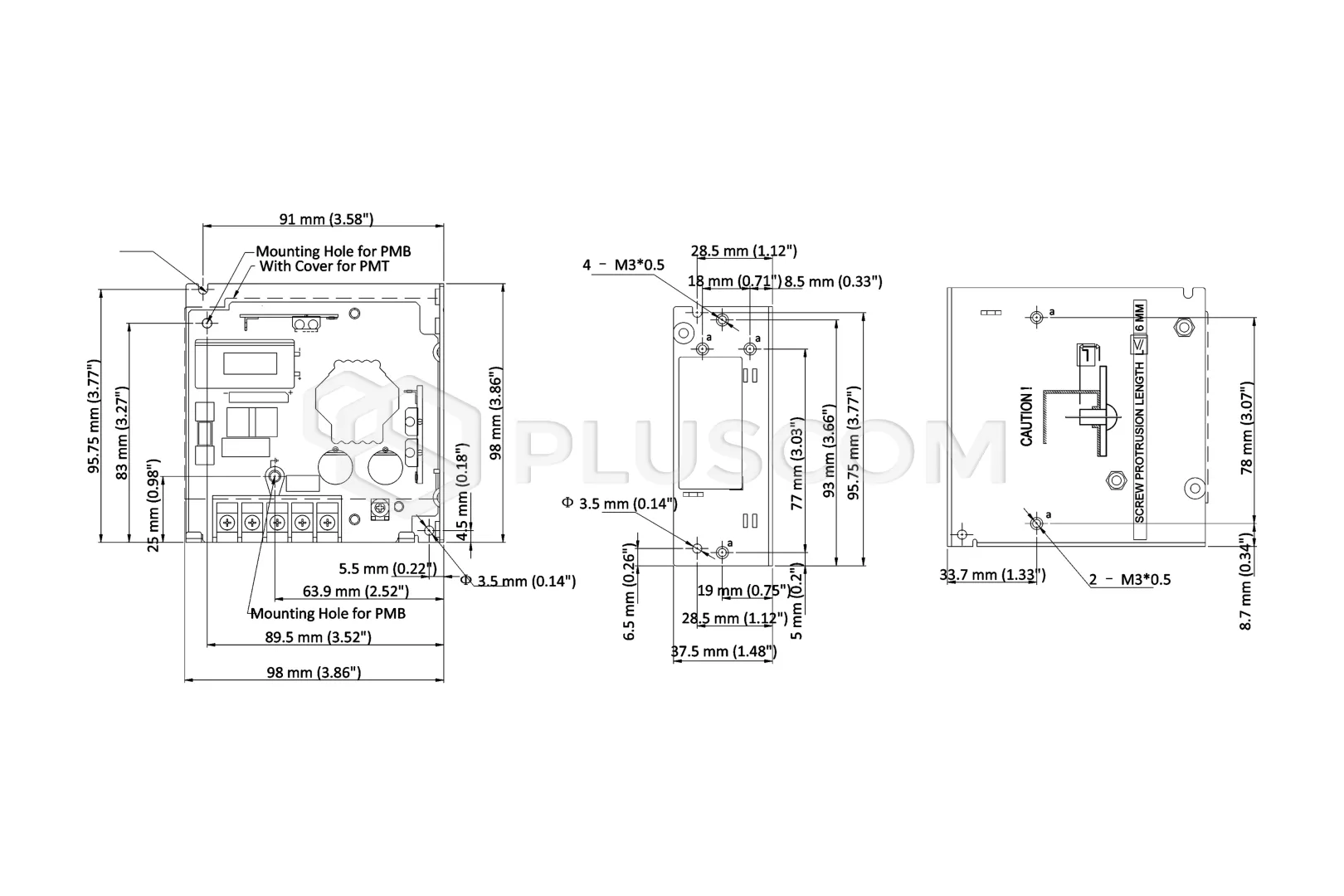

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • Input voltage: 100 V - 240 V AC
  • Output voltage: 12 V DC
  • Voltage adjustment range: 11-14 V DC
  • Output current: 4,17 A
  • Output power: 50 W
  • LED power indicator
  • Working temperature: 70 °C
  • Dimensions: 98×97×38mm
  • Weight: 0.23kg
PROTECTION:
  • short circuit protection
  • load protection
  • over power voltage protection

Download
Datasheet 0.53 MB
