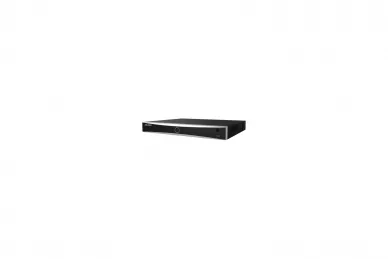

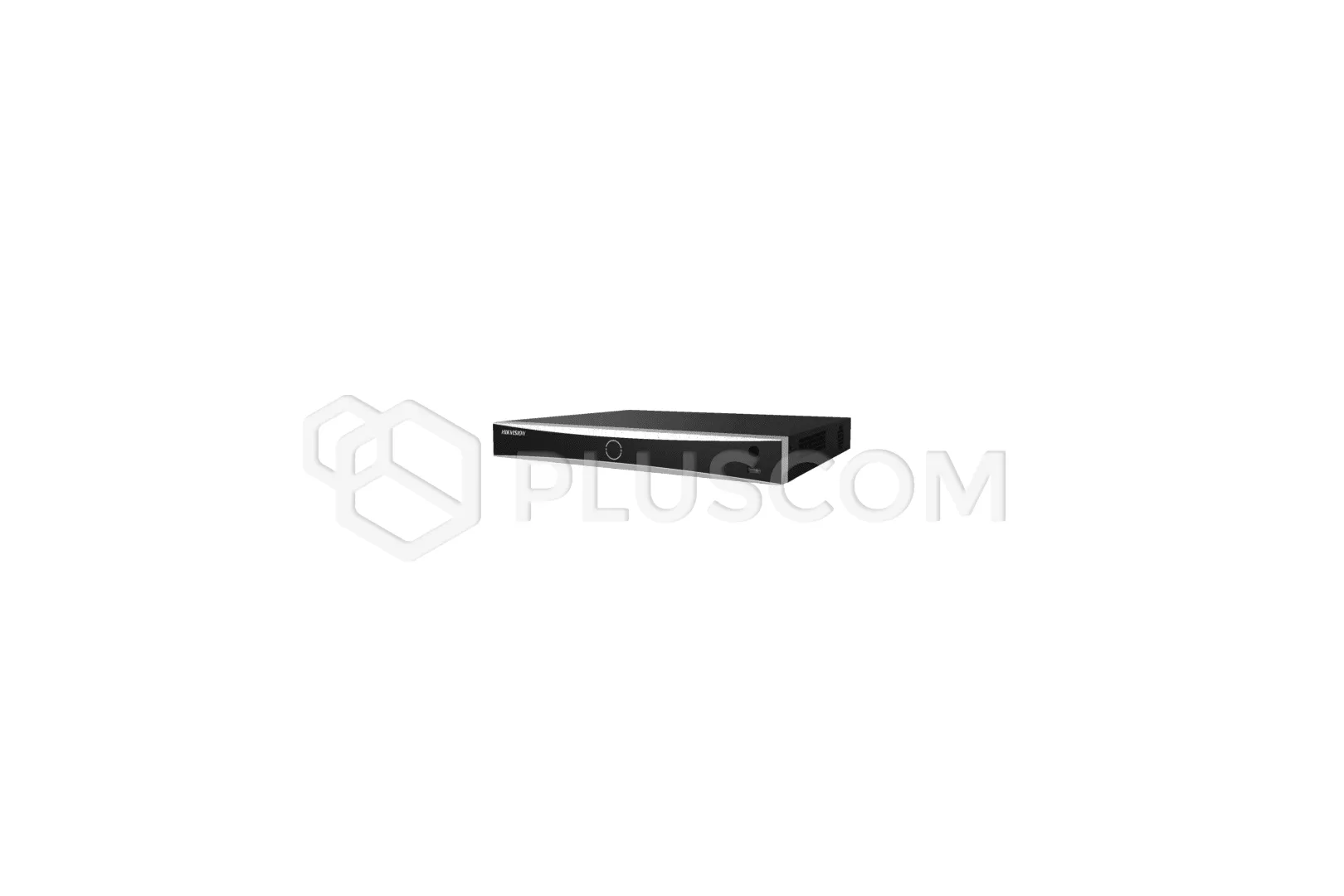

Hikvision DS-7632NXI-K2

637,13 EUR including 19.00% VAT
Product code: #33970
Manufacturer: Hikvision
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-7632NXI-K2


Technical parameters:

Facial Recognition

  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
  • Facial Detection and Analytics Performance: 1-ch human face capture
  • Face Picture Comparison: 4-ch face picture comparison alarm

Motion Detection 2.0

  • Human/Vehicle Analysis: 32-ch

Video and Audio

  • IP Video Input: 32-ch
  • Incoming Bandwidth: 256 Mbps
  • Outgoing Bandwidth: 160 Mbps
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI/VGA independent output
  • CVBS Output: N/A
  • Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ)

Decoding

  • Decoding Format: H.265/H.265+/H.264+/H.264
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback: 16-ch
  • Decoding Capability: AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

  • SATA: 2 SATA interfaces
  • Capacity: Up to 10 TB capacity for each HDD
  • USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarm In/Out: 4/1

General

  • Power Supply: 12 VDC, 3.3 A
  • Consumption: ≤ 15 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Certification

  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
