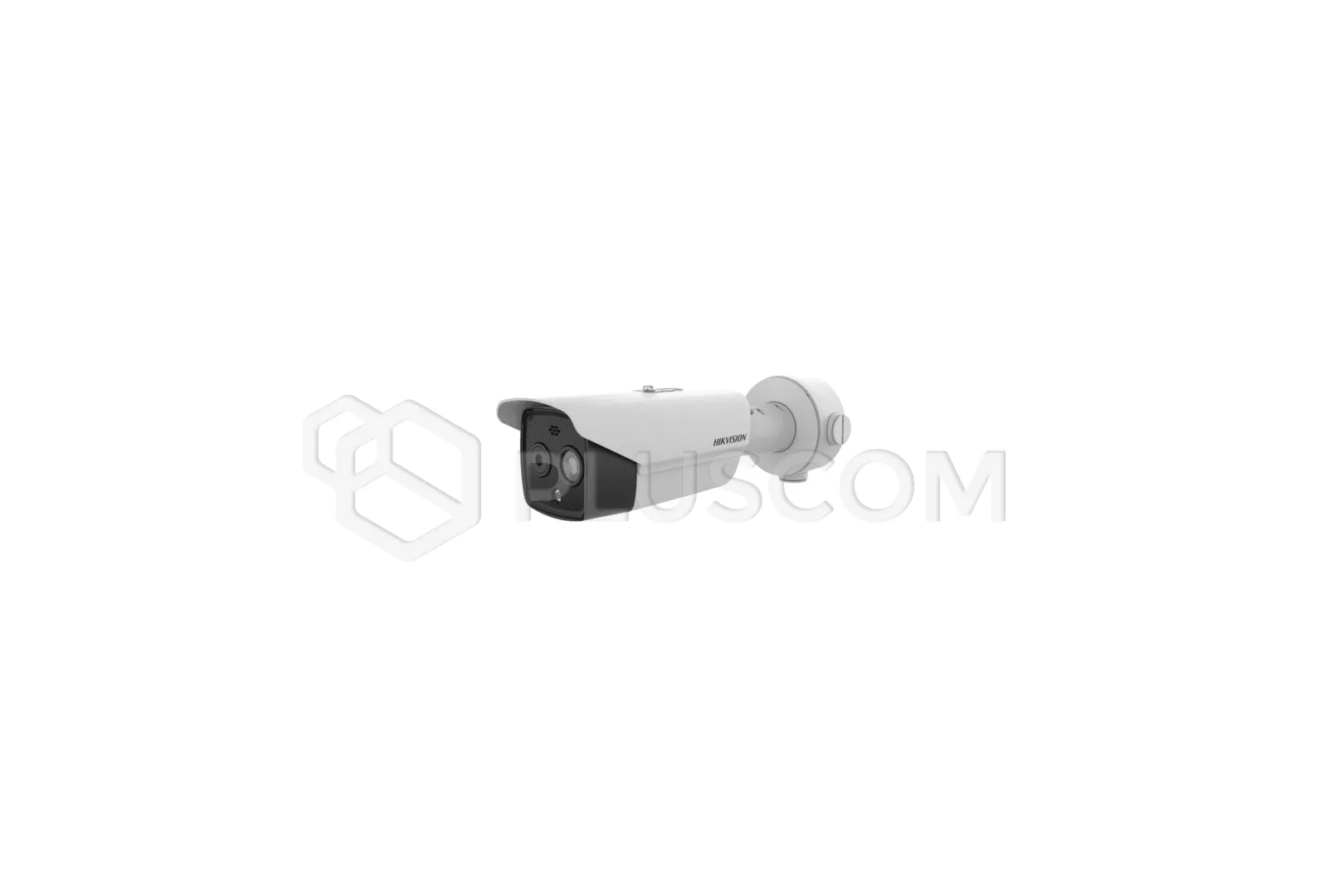

Hikvision DS-2TD2628T-3/QA

Hikvision DS-2TD2628T-3/QA

Technical parameters:

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution: 256 x 192
• Pixel Pitch: 12 μm
• Spectral Range: 8 μm to 14 μm
• NETD: ≤ 40 mK (@25° C,F# = 1.0)
• Focal Length: 3.6 mm
• IFOV: 3.33 mrad
• Aperture: F1.0
• Field of View: 50.0° × 37.3° (H × V)
• Min. Focusing Distance: 0.5 m
• Digital Zoom: ×2, ×4

Optical Module

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 2688 × 1520
• Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Field of View: 84.0° ×43.1° (H × V)
• Focal Length: 4.3 mm
• Shutter Speed: 1 s to 1/100,000 s
• White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
• Day & Night Mode: IR Cut Filter with Auto Switch
• WDR: 120 dB
• Aperture: F 1.6

Image Effect

• Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
• Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
• Target Coloration: Yes. Supported in white hot and black hot mode.

Illuminator

• IR Distance: Up to 30 m
• IR Intensity and Angle: Automatically adjusted

Audible and Visual Alarm

• White Light Range: Up to 30 m
• Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
• Audio alarm: Yes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)

Smart Function

• VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range: -20°C to 550°C (-4°F to 1022°F);
• Temperature Accuracy: Max (±2°C, ±2 %)

Video and Audio

• Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream: Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
• Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
• Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP
• Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
• Simultaneous Live View: Up to 20 channels
• User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
• Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• Client: iVMS-4200, Hik-Connect

Interface

• Alarm Input: 2, alarm input (0-5 VDC)
• Alarm Output: 2, alarm output (alarm response actions configurable)
• Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio Output: Linear level, impedance: 600 Ω
• Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
• Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

• Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
• Power Consumption: 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
• Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
• Protection Level: IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection
• Dimensions: 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
• Weight: 1550 g (3.41 lb)
