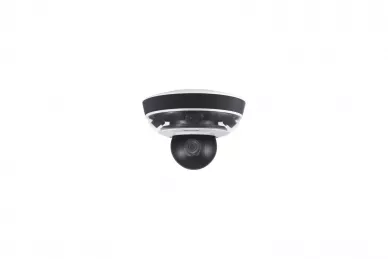

Hikvision DS-2PT5326IZ-DE(5-50mm)(4mm)


Technical parameters:

Camera

  • Image Sensor: 1/2.8" progressive scan CMOS
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 Lux with IR
  • Shutter Speed: 50 Hz: 1/25 s to 1/30,000 s60 Hz: 1/30 s to 1/30,000 s
  • Focus: auto;manual;semi-auto
  • Day & Night: ICR
  • BLC: yes
  • WDR: digital WDR
  • HLC: yes
  • 3D DNR: yes
  • Defog: yes
  • Regional Exposure: yes
  • Regional Focus: yes
  • White Balance: auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
  • Digital Zoom: 8x
  • Optical Zoom: [PTZ channel] 10x
  • Privacy Mask: up to 8 masks
  • General Function: IP address filter;video tampering alarm;privacy mask
  • Optical Defog: no

Lens

  • Focal Length: [Panoramic channel]：4mm[PTZ channel]：4.7 mm to 47 mm, 10× optical zoom
  • Zoom Speed: approx. 2.5 s
  • FOV: [Panoramic channel]：Horizontal field of view: 80.7° × 3Vertical field of view: 43.5°[PTZ channel]：Horizontal field of view: 58.6° to 6.4° (wide - tele)Vertical field of view: 35.1° to 3.6° (wide - tele)Diagonal field of view: 7.4° to 65.6° (wide - tele)
  • Aperture: [panoramic channel] F1.6, [PTZ channel] F1.6 to F3.0

Illuminator

  • IR Distance: 50 m

PTZ

  • Movement Range (Pan): [PTZ channel] 0° to 350°
  • Movement Range (Tilt): [PTZ channel] 0° to 90°
  • Pan Speed: pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 60°/s, preset speed 60°/s
  • Proportional Zoom: [panoramic channel]: no; [PTZ channel]: yes
  • Presets: 300
  • Patrol Scan: no
  • Pattern Scan: no
  • Power-off Memory: [panoramic channel]: no; [PTZ channel]: yes
  • Park Action: preset
  • 3D Positioning: [panoramic channel]: no; [PTZ channel]: yes
  • PTZ Status Display: [panoramic channel]: no; [PTZ channel]: yes
  • Preset Freezing: [panoramic channel]: no; [PTZ channel]: yes
  • Scheduled Task: preset;dome adjust;dome reboot
  • Shake Detection: no

Video

  • Max. Resolution: 1920 × 1080
  • Stream Type: main stream;sub-stream
  • Main Stream: Panoramic camera:Main stream:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)PTZ camera:Main stream:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Sub-Stream: Panoramic camera:50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)PTZ camera:50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
  • Video Compression: H.265;H.264;MJPEG
  • Video Bit Rate: 256 Kbps to 8192 Kbps
  • H.264 Type: main profile;high profile
  • H.265 Type: main profile
  • SVC: yes
  • ROI: yes

Audio

  • Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2
  • Audio Bit rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 128 Kbps(MP2L2)

Smart Features

  • Face Capture: no
  • Face Comparison: no
  • Basic Event: video tampering alarm;motion detection;exception
  • Smart Event: intrusion detection;line crossing detection;audio exception detection
  • Smart Tracking: no
  • Smart Record: ANR

Network

  • Protocols: IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;DHCP;PPPoE;Bonjour
  • API: Open-ended API; ISAPI;Hikvision SDK;Third-party management platform;Open Network Video Interface;CGI
  • Simultaneous Live View: Up to 4 × 4 channels
  • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
  • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web Browser: IE8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

Interface

  • On-board Storage: up to 256 GB
  • Alarm Input: 1 alarm input
  • Alarm Output: 1 alarm output
  • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output: 1 audio output

General

  • Power: 12 VDC; Hi-PoE
  • Power Consumption and Current: 12 VDC, 3.33 A and Hi-PoE, 42.5 to 57 VDC, 1.41 AMax.27 W (Max. 9 W for IR)
  • Operating Conditions: -30℃ to 65℃ (-22°F to 149°F)
  • Material: PC & Aluminum alloy
  • Dimensions: Φ 271.3 mm ×243.1 mm (Φ 10.68" × 9.57")
  • Weight: Approx. 3.2 kg (7.05 lb)

Approval

  • Protection: IP66
