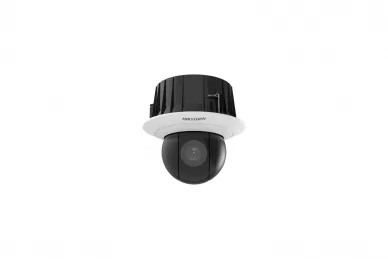

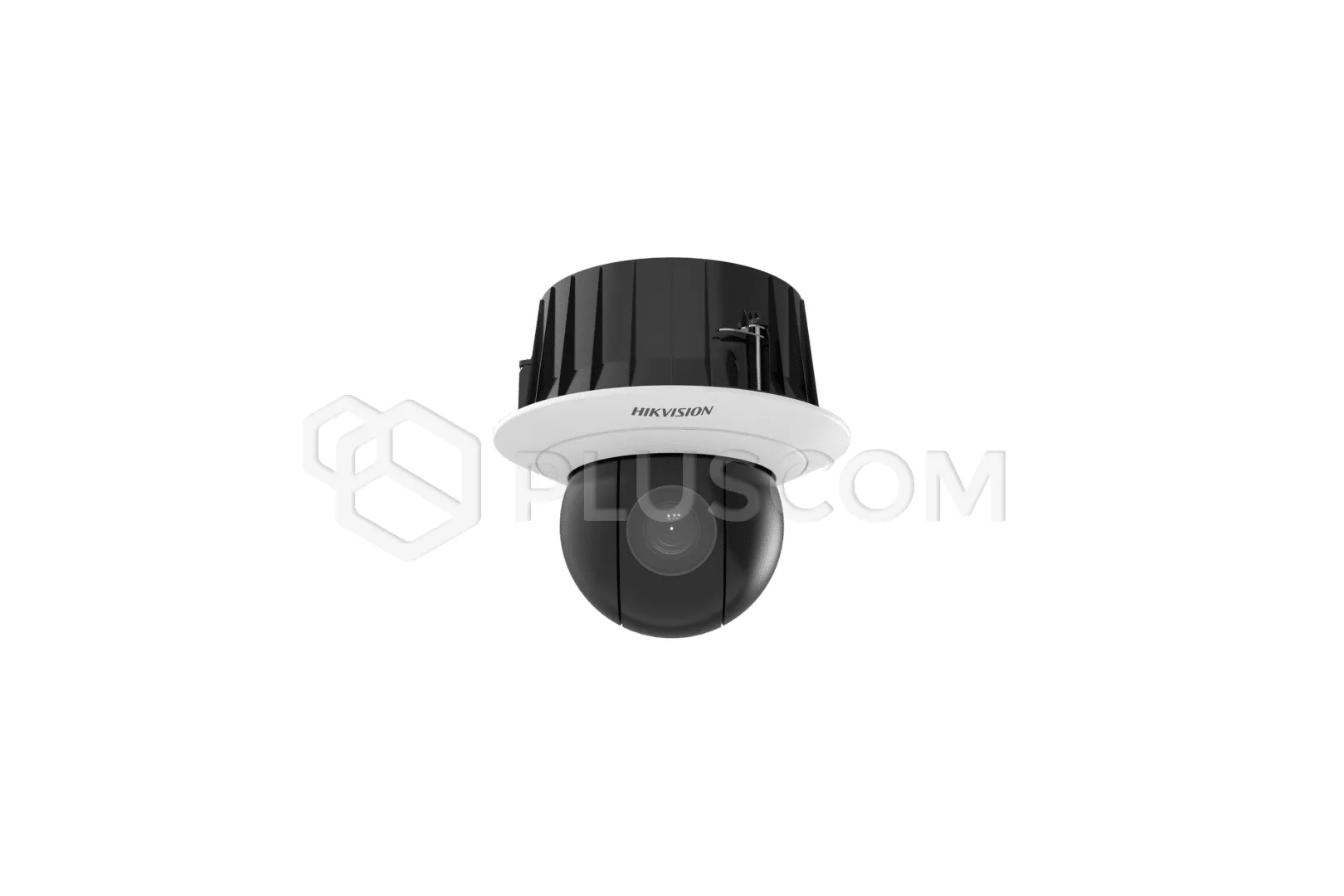

Hikvision DS-2DF6A832X-DE3(T5)

3559,80 EUR including 19.00% VAT
Product code: #36227
Manufacturer: Hikvision
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2DF6A832X-DE3(T5)


Technical parameters:

Camera

  • Image Sensor: 1/1.8＂ progressive scan CMOS
  • Min. Illumination: color: 0.002Lux @ (F1.5，AGC ON);B/W: 0.0002Lux @(F1.5，AGC ON)
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Focus: auto;semi-auto;manual
  • Day & Night: ICR
  • BLC: yes
  • WDR: 140 dB WDR
  • HLC: yes
  • 3D DNR: yes
  • Regional Exposure: yes
  • Regional Focus: yes
  • Digital Zoom: 16x
  • Optical Zoom: 32x
  • Privacy Mask: up to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • DORI: Detect (25px/m): 2690 mObserve (63px/m): 1067 mRecognize (125px/m): 538 mIdentify (250px/m): 269 m
  • General Function: mirror, password protection, watermark, IP address filter

Lens

  • Focal Length: 6.7 mm to 214.4 mm, 32× optical
  • Zoom Speed: approx. 4.5 s
  • FOV: Horizontal field of view: 56.6° to 2.0° (wide-tele),Vertical field of view: 33.7° to 1.2° (wide-tele),Diagonal field of view: 63.4° to 2.3° (wide-tele)
  • Aperture: F1.5

PTZ

  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -20° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Zoom: yes
  • Presets: 300
  • Patrol Scan: 8 patrols
  • Pattern Scan: 4 pattern scans
  • Power-off Memory: yes
  • Park Action: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Preset Freezing: yes
  • Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

  • Max. Resolution: 3840 × 2160
  • Main Stream: 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920×1080, 1280 × 960, 1280×720)60Hz: 24fps (3840 × 2160,2560 × 1440, 1920×1080, 1280 × 960, 1280×720)
  • Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)60Hz: 24fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: H.265;H.264;MJPEG
  • H.264 Type: baseline profile;main profile;high profile
  • H.265 Type: main profile
  • H.264+: yes
  • H.265+: yes
  • SVC: yes

Audio

  • Audio Compression: G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features

  • Face Capture: yes
  • Basic Event: alarm input and output;motion detection;video tampering alarm
  • Smart Event: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;object removal detection;unattended baggage detection
  • Smart Tracking: manual tracking;event tracking
  • Smart Record: ANR;Dual-VCA
  • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network

  • Client: Hikcentral;Hik-Connect;iVMS-4200
  • Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Interface

  • Communication Interface: 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
  • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input: 7 alarm inputs
  • Alarm Output: 2 alarm outputs
  • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output: 1 audio output, line level, impedance: 600 Ω
  • RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive

General

  • Power: 12 VDC, PoE
  • Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Dimensions: Ø 290 mm × 274.8 mm (Ø 11.42" × 10.82")
  • Weight: Approx. 3.8 kg (8.38 lb.)
  • Web Client Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

  • EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019);
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

Network

  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  • Simultaneous Live View: Up to 20 channels
  • User/Host: Up to 32 users,3 levels: Administrator, Operator and User
  • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
