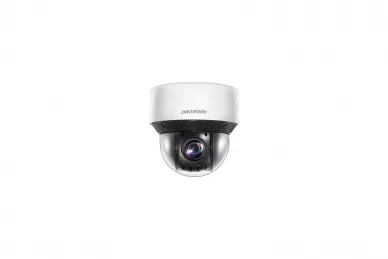

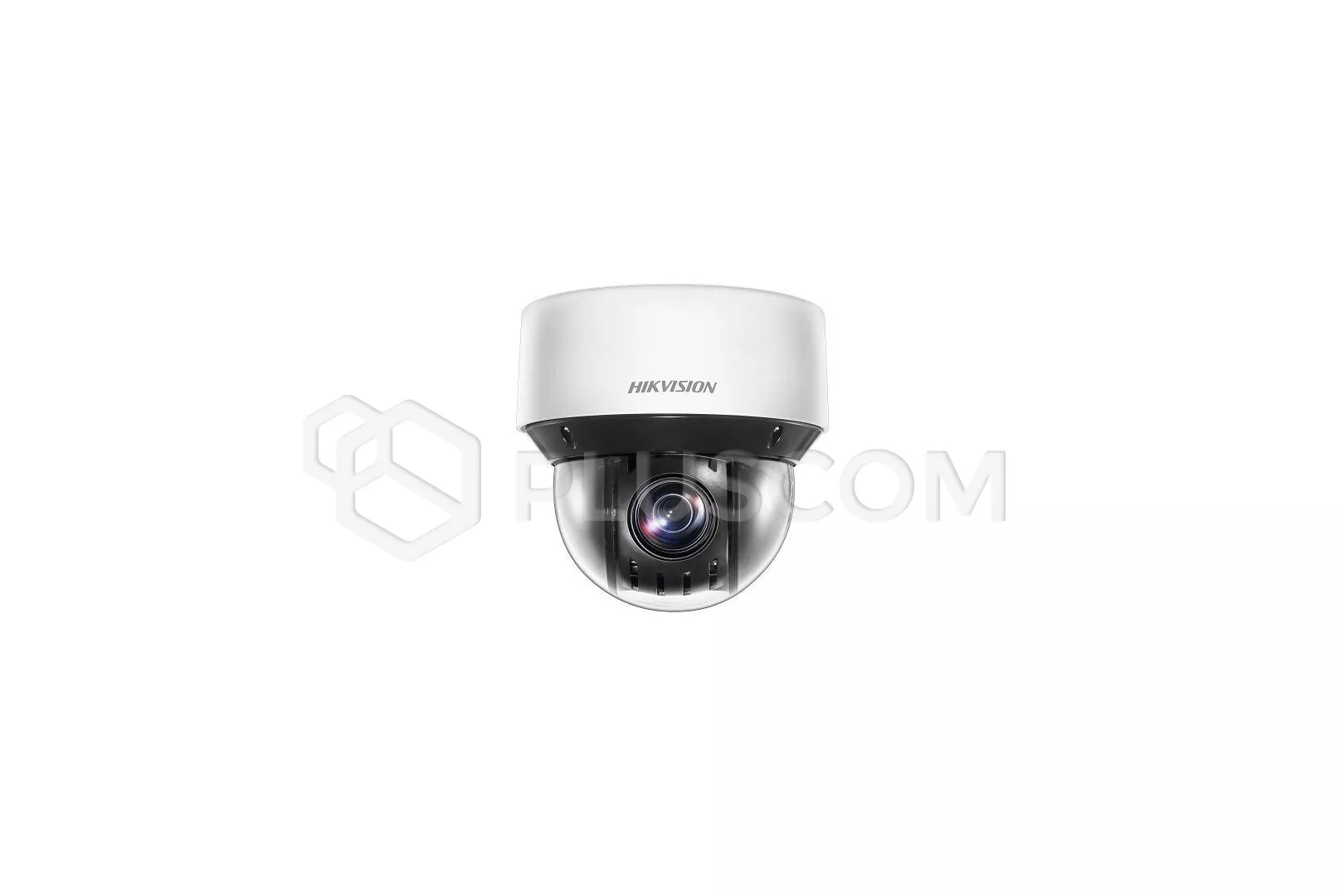

Hikvision DS-2DE4A425IW-DE(S6)

1281,32 EUR including 20.00% VAT
Product code: #25328
Manufacturer: Hikvision
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Day & Night: IR cut filter
  • Zoom: 25x optical, 16x digital
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2DE4A425IW-DE(S6)


Technical parameters:

Camera

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Day & Night: IR cut filter
  • Zoom: 25x optical, 16x digital
  • Slow Shutter: Yes

Lens

  • Focal Length: 4.8 to 120 mm
  • FOV: Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
  • Focus: Auto, semi-auto, manual
  • Aperture: Max. F1.6
  • Zoom Speed: Approx. 3.4 s

Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: IR Distance: up to 50 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

PTZ

  • Movement Range (Pan): 0° to 360°
  • Movement Range (Tilt): -5° to 90°
  • Pan Speed: Pan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
  • Proportional Zoom: Yes
  • Presets: 300
  • Preset Freezing: Yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
  • Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Scheduled Task: preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust
  • Power-off Memory: Yes

Video

  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream

Audio

  • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
  • Audio Sampling Rate: AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Version 18.12), Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE 10-11, Chrome 57+, Firefox 52+, Safari 11+


  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ＞52dB
  • Defog: Digital Defog
  • Image Stabilization: No
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
  • Regional Focus: Yes
  • Regional Exposure: Yes

Interface

  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm: 2 inputs, 2 outputs
  • Reset: Yes

Event

  • Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
  • Smart Event: Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General

  • Power: 12 VDC, Max. 18 W; PoE (802.3at)
  • Dimension: Ø 169 mm × 161 mm (Ø 6.65" × 6.34")
  • Weight: Approx. 2.45 kg (5.40 lb.)
  • Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • General Function: Mirror, password protection

Approval

  • Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Application Scene

  • Application Scene: -
