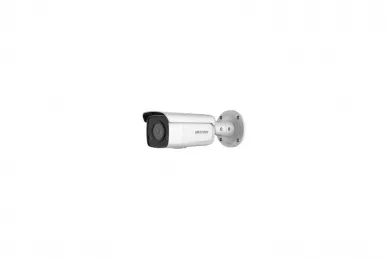

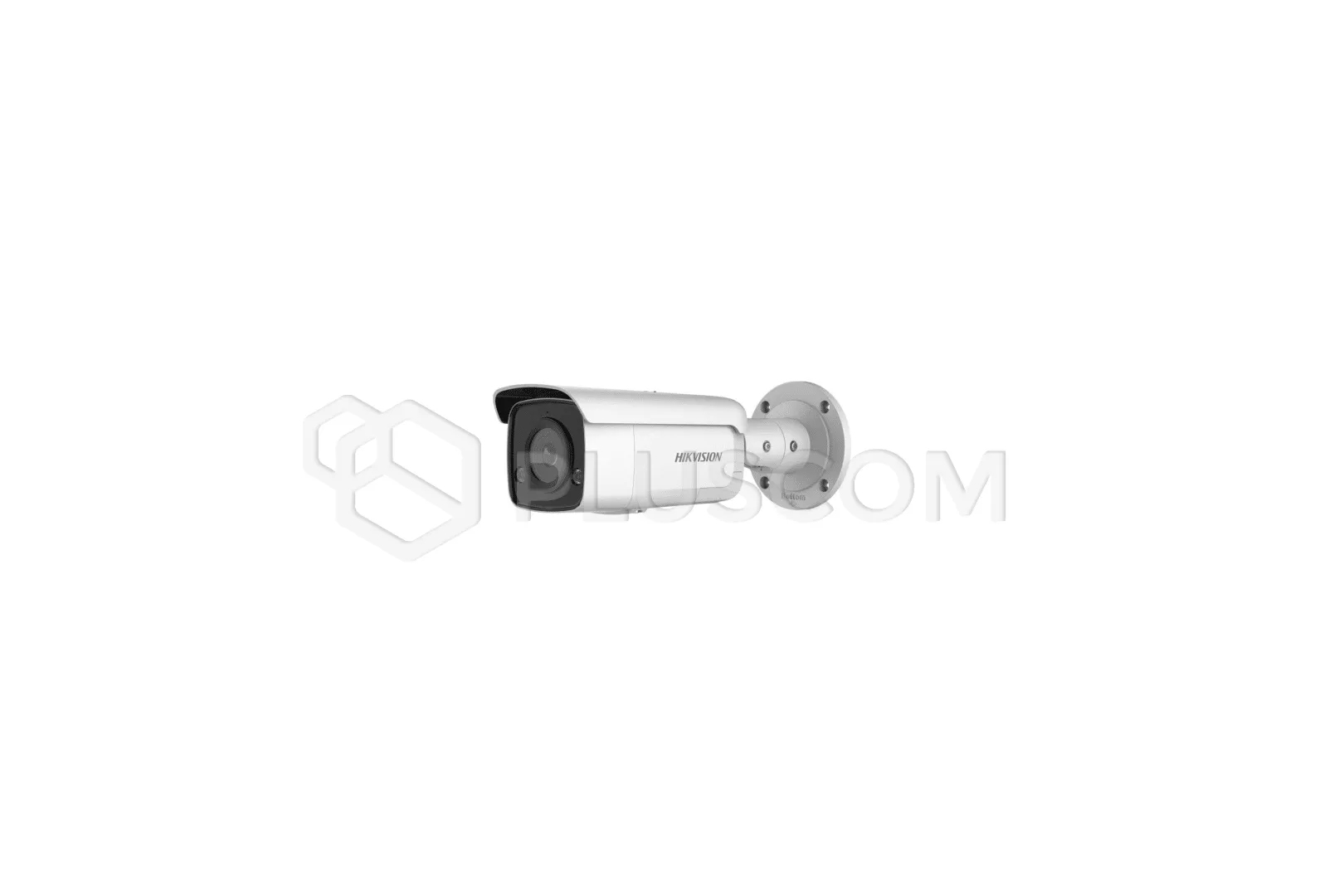

Hikvision DS-2CD2T46G2-ISU/SL(2.8mm)(C)

199,82 EUR including 22.00% VAT
Product code: #35069
Manufacturer: Hikvision
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2CD2T46G2-ISU/SL(2.8mm)(C)


Technical parameters:

Camera

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

  • Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.4

DORI

  • DORI: 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: Up to 60 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

  • Audio Type: Mono sound
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Built-in Microphone: Yes
  • Built-in Speaker: Power: 2 W. Max. sound pressure level: 10 cm: 97 dB.
  • Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:2.2 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 10 Ω, interface type: non-equilibrium
  • Alarm: Visual alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key: Yes

Event

  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection
  • Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning

Deep Learning Function

  • Face Capture: Yes

General

  • Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plugPoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max: 12 W
  • Dimension: Ø105 mm × 287.6 mm (Ø4.1" × 11.3")
  • Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 7.5" × 7.1")
  • Weight: Approx. 1135 g (2.5 lb.)
  • With Package Weight: Approx. 1624 g (3.6 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)
