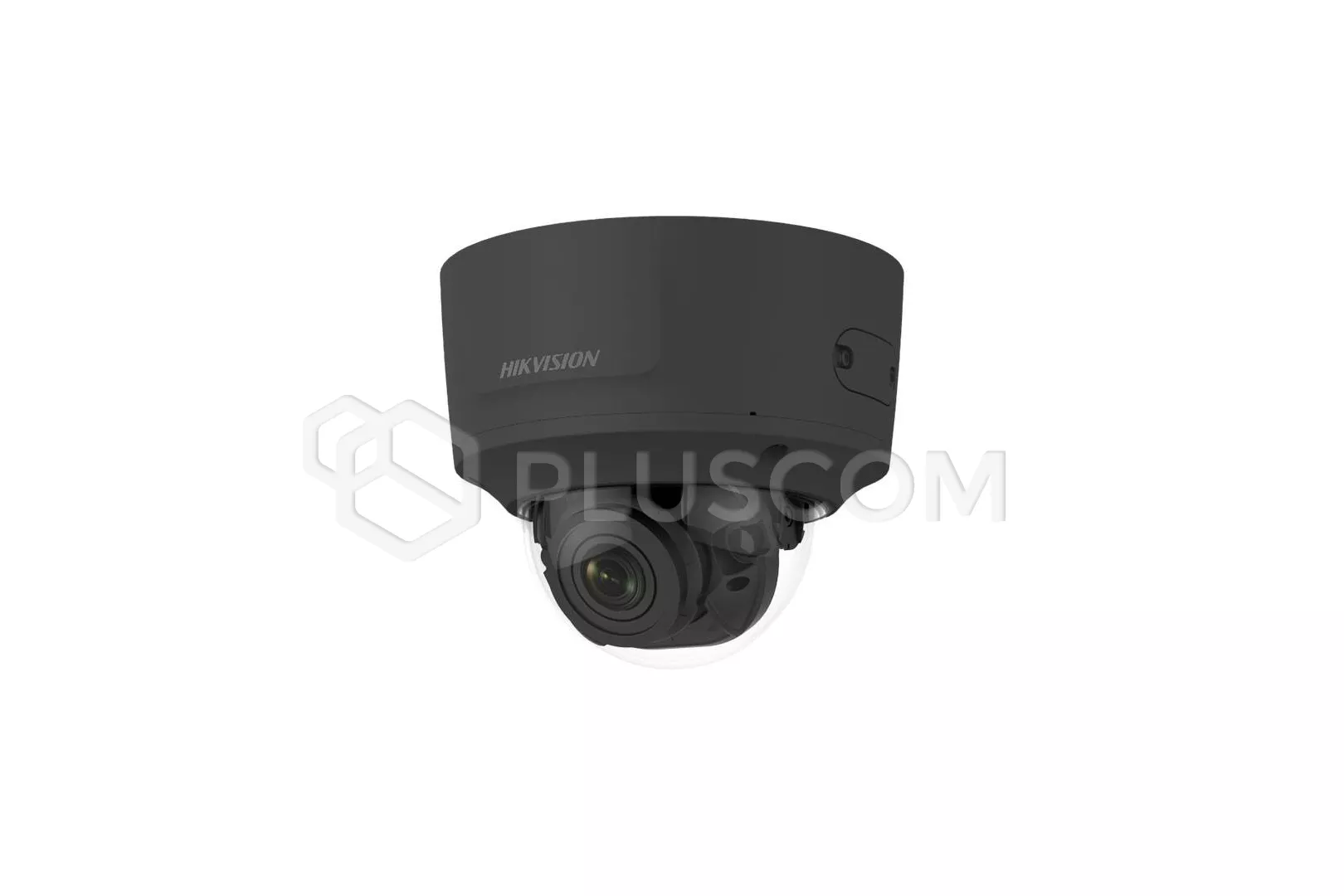

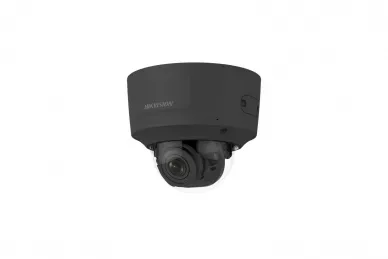

Hikvision DS-2CD2745FWD-IZS(BLACK)(2.8-12mm)

301,70 EUR including 19.00% VAT
Product code: #26132
Manufacturer: Hikvision
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2CD2745FWD-IZS(BLACK)(2.8-12mm)


Technical parameters:

Camera

  • Image Sensor: 1/2.5" Progressive Scan CMOS
  • Min. Illumination: Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • Wide Dynamic Range: 120dB
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

  • Focus: Auto
  • Lens Type: 2.8 to 12 mm，Motorized
  • FOV: Horizontal field of view: 114° to 32°;Vertical field of view: 59° to 18° ;Diagonal field of view: 141° to 36.5°
  • Aperture: F1.4
  • Lens Mount: Φ14

Illuminator

  • IR Range: Up to 30 m
  • Wavelength: 850nm

Video

  • Max. Resolution: 2688 × 1520
  • Main Stream: 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080)60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
  • Sub Stream: 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression: Main stream: H.265/H.264;Sub stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • Scalable Video Coding (SVC): Support H.264 and H.265 encoding
  • Region of Interest (ROI): Support 1 fixed region for main stream and sub stream

Audio

  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHZ/48kHz
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host: Up to 32 users,3 levels: Administrator, Operator and User
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output


  • Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
  • DNR: 3D DNR
  • Image Enhancement: BLC/3D DNR/HLC
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

  • Audio: 1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
  • Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output: 1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset: Yes
  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
  • Face Detection: Yes
  • Exception Detection: Scene change detection

General

  • Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Firmware Version: V5.5.80
  • Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, PoE (802.3af),Terminal block for DC input
  • Power Consumption and Current: 12 VDC, 0.9 A, max. 10.5 W, PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.5 W
  • Camera Dimension: Φ153.4 × 133.1 mm (Φ6" × 5.2")
  • Camera Weight: Camera: 1287 g (2.84 lb.)

Approval

  • Protection: IP66，IK10
