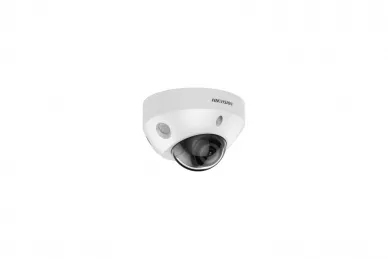

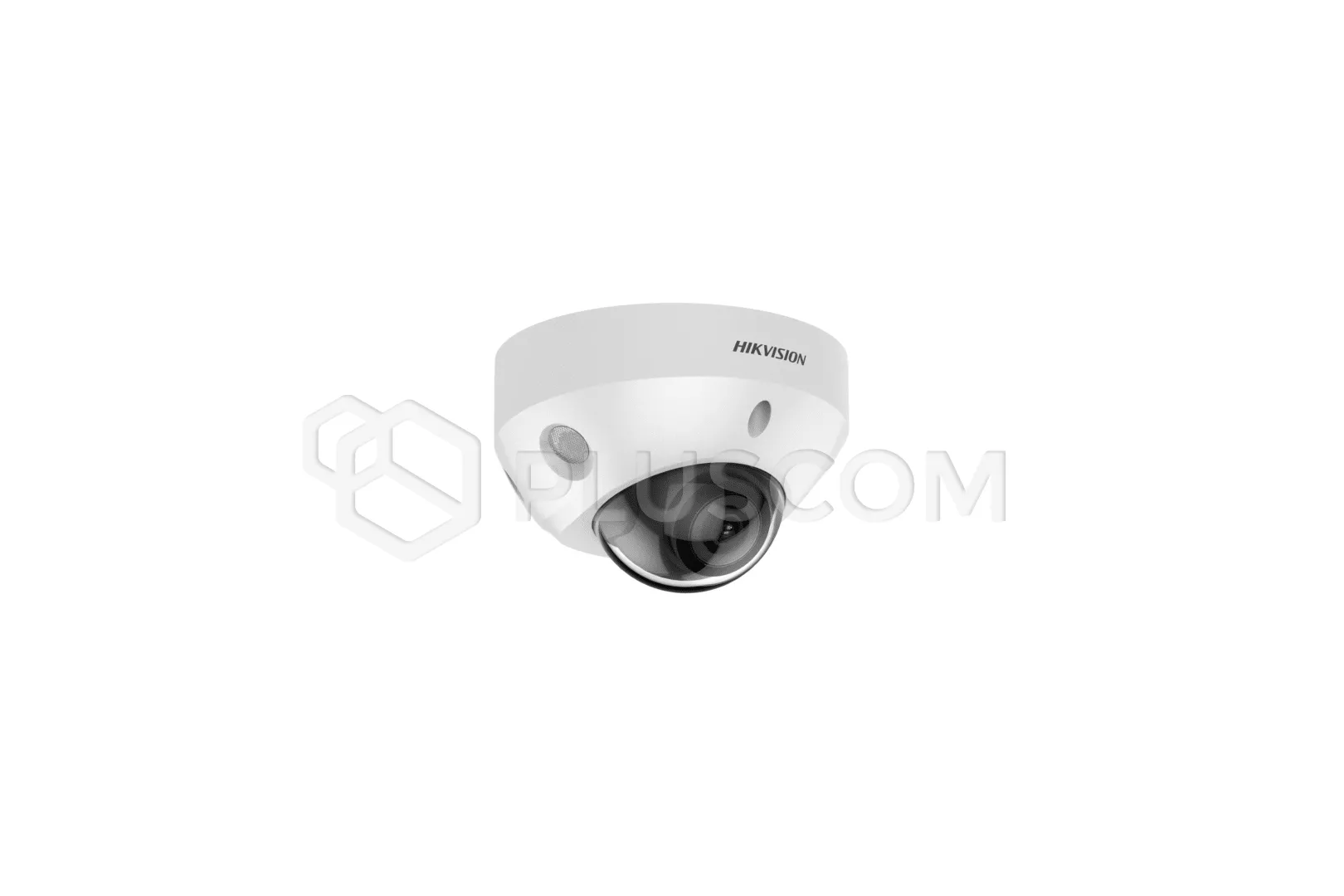

Hikvision DS-2CD2547G2-LS(2.8mm)(C)

Hikvision DS-2CD2547G2-LS(2.8mm)(C)

Technical parameters:

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Shutter Speed: 1/3 s to 1/100,000 s
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Day & Night: 24/7 Color imaging
• Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 2.3 m to ∞4 mm: 3.2 m to ∞

DORI

• DORI: 2.8 mm:D: 58 mO: 23 mR: 11 mI: 6 m4 mm:D: 77 mO: 30 mR: 16 mI: 8 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
• Built-in Microphone: Yes
• Audio: -LS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: -LS:1 input, 1 output (max. 12 VDC, 20 mA)
• Reset Key: Yes

Event

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

General

• Power: 12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection, 0.54 A, max. 6.5 WPoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
• Camera Material: Base: aluminum, cover: plastic
• Camera Dimension: Ø113.6 mm × 72.6 mm (Ø 4.5" × 2.9")
• Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• Camera Weight: Approx. 400 g (0.9 lb.)
• With Package Weight: Approx. 635 g (1.4 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

• EMC: FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
• Safety: UL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)LOA (IEC/EN 60950-1)BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
• Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
• Electrical Safety Protection: IP67 (IEC 60529-2013)IK8 (IEC 62262:2002)
