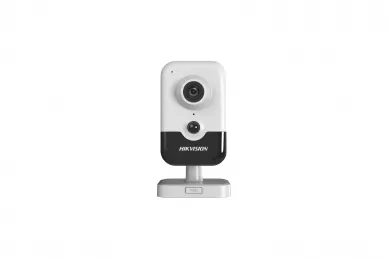

Hikvision DS-2CD2423G2-I(2.8mm)

242,81 EUR including 19.00% VAT
Product code: #25930
Manufacturer: Hikvision
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Max. Resolution: 1920 × 1080
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2CD2423G2-I(2.8mm)


Technical parameters:

Camera

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Max. Resolution: 1920 × 1080
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

  • Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 57.7°, diagonal FOV 129.4°4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°
  • Aperture: F1.6
  • Lens Mount: M12

DORI

  • DORI: 2.8 mm: D: 38.6 m, O: 15.3 m, R: 7.7 m, I: 3.9 m4 mm: D: 54.8 m, O: 21.7 m, R: 11.0 m, I: 5.5 m

Illuminator

  • IR Range: Up to 10 m
  • Wavelength: 850 nm
  • Smart Supplement Light: Yes

Video

  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): Yes
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 Kbps to 192 Kbps (MP2L2)/8 Kbps to 320 Kbps (MP3)

Network

  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, 802.1X, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+


  • Wide Dynamic Range (WDR): 120 dB
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR

  • PIR Angle: Horizontal: 90°, vertical: 80°
  • PIR Range: Up to 8 m

Interface

  • Built-in Microphone: Yes
  • Built-in Speaker: Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
  • On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Hardware Reset: Yes
  • Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic Event: Motion detection, video tampering alarm, exception
  • Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning
  • Face Detection: Yes

Deep Learning Function

  • Perimeter Protection: Line crossing, intrusionSupport alarm triggering by specified target types (human and vehicle)

General

  • Power: 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plugPoE: (802.3af, Class 3, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
  • Web Client Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
  • Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Camera Material: Plastic
  • Camera Dimension: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
  • Package Dimension: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
  • Camera Weight: Approx. 120 g (0.3 lb.)
  • With Package Weight: Approx. 430 g (0.9 lb.)

Approval

  • EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014/A11:2017)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
