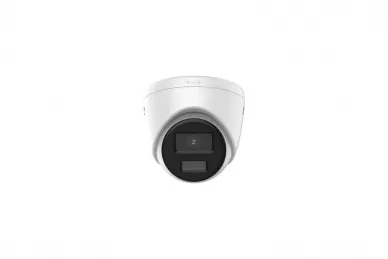

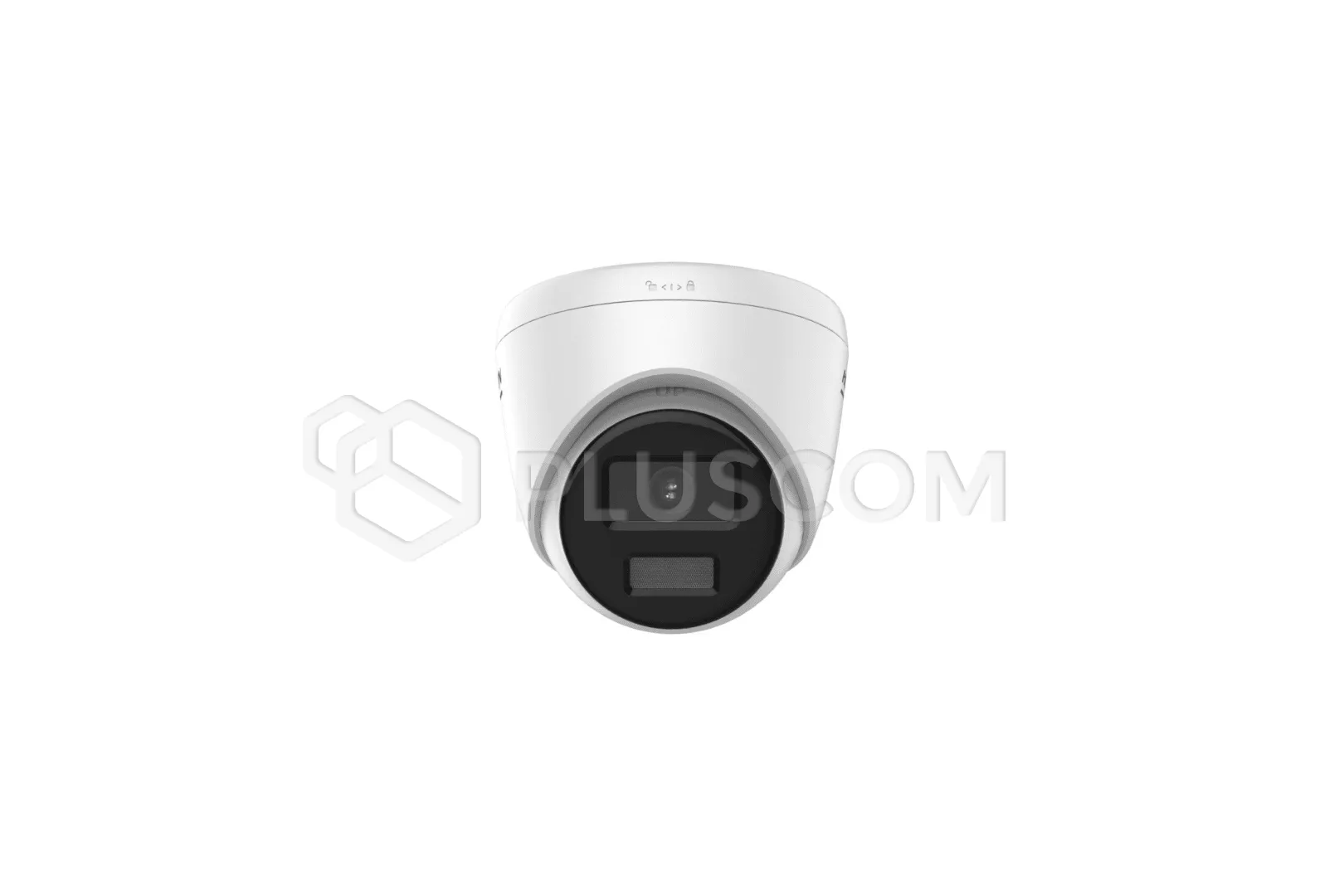

Hikvision DS-2CD1347G0-L(4mm)(C)

276,18 EUR including 23.00% VAT
Product code: #34782
Manufacturer: Hikvision
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Min. Illumination: Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
  • Shutter Speed: 1/3 s to 1/100, 000 s
  • Slow Shutter: Yes
  • Wide Dynamic Range: 120 dB
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2CD1347G0-L(4mm)(C)


Technical parameters:

Camera

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Min. Illumination: Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
  • Shutter Speed: 1/3 s to 1/100, 000 s
  • Slow Shutter: Yes
  • Wide Dynamic Range: 120 dB
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

  • Focal Length & FOV: 2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
  • Lens Mount: M12
  • Focus: Fixed
  • Aperture: F1.0

DORI

  • DORI: 2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

Illuminator

  • Smart Supplement Light: Yes
  • White Light Range: Up to 30 m

Video

  • Max. Resolution: 2560 × 1440
  • Main Stream: 50 Hz: 20 fps (2560 × 1440),25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440),30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • Region of Interest (ROI): 1 fixed region for main stream

Audio

  • Audio Compression: -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate: -UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate: -UF: 8 kHz/16 kHz
  • Environment Noise Filtering: -UF: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI
  • User/Host: Up to 32 users. 3 levels: administrator, operator and user
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+


  • Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, 3D DNR

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: -UF: Built-in memory card slot, support microSD card, up to 256 GB
  • Built-in Microphone: -UF: Yes
  • Hardware Reset: -UF: Yes

Event

  • Basic Event: Motion detection, video tampering alarm, exception

General

  • Linkage Method: Upload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
  • Camera Material: Metal & Plastic
  • Camera Dimension: Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08")
  • Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Camera Weight: Approx. 380 g (0.84 lb.)
  • With Package Weight: Approx. 600 g (1.32 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Web Client Language: English, Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware Version: V5.5.122
  • Power Consumption and Current: 12 VDC, 0.4 A, max. 5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
  • Power Supply: 12 VDC ± 25%PoE: 802.3af, Class 3
  • Power Interface: Ø5.5 mm coaxial power plug

Approval

  • EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)
