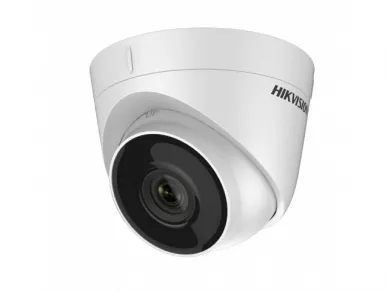

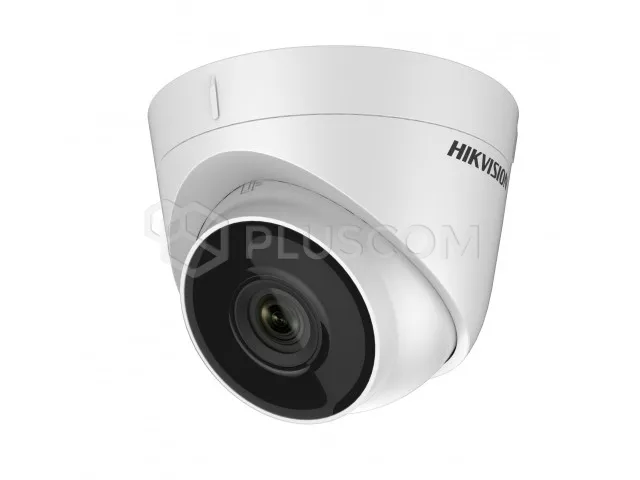

Hikvision DS-2CD1321-I(2.8mm)(F)

76,12 EUR including 23.00% VAT
Product code: #19684
Manufacturer: Hikvision
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100, 000 s
  • Day & Night: IR cut filter
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2CD1321-I(2.8mm)(F)


Technical parameters:

Camera

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100, 000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

  • Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F2.0

Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression: Main Stream: H.264//H.264+Sub-Stream: H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • Region of Interest (ROI): 1 fixed region for main stream

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI
  • User/Host: Up to 32 users. 3 levels: administrator, operator and user
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+


  • Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): Digital WDR
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, 3D DNR

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic Event: Motion detection, video tampering alarm, exception
  • Linkage: Upload to FTP, notify surveillance center, send email

General

  • Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plugPoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Dimension: Ø110 mm × 85.3 mm (Ø4.3" × 3.4")
  • Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight: Approx. 320 g (0.7 lb.)
  • With Package Weight: Approx. 556 g (1.2 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

  • EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)
