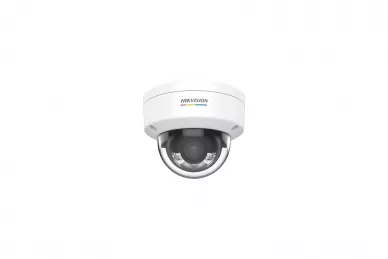

Hikvision DS-2CD1147G0-L(2.8mm)(D)

Hikvision DS-2CD1147G0-L(2.8mm)(D)

Technical parameters:

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 color imaging
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 113°4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 89°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 2 m to ∞4 mm: 2.7 m to ∞

DORI

• DORI: 2.8 mm, D: 64 m, O: 25 m, R: 13 m, I: 6 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz: 20 fps (2560 × 1440)25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440)30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Region of Interest (ROI): 1 fixed region(s) for main stream

Audio

• Audio Type: -U: Mono sound
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: -U: 8 kHz/16 kHz
• Environment Noise Filtering: -U: Yes

Network

• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G (only -U model supports)),ISAPI,SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
• User/Host: Up to 32 users3 user levels: administrator, operator, and user
• Client: iVMS-4200,Hik-Connect
• Web Browser: Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day,Night,Auto,Schedule
• Image Enhancement: BLC,HLC,3D DNR
• Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,mirror,adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Built-in Microphone: -U: Yes
• Reset Key: -F: Yes

Event

• Basic Event: Motion detection,video tampering alarm,exception
• Linkage: Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General

• Power: 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Material: Base: aluminum alloy, cover: plastic
• Dimension: Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight: Approx. 500 g (1.1 lb.)
• With Package Weight: Approx. 700 g (1.5 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukranian
• General Function: Heartbeat,anti-flicker,password protection,password reset via email

Approval

• EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013;IK08: IEC 62262:2002
