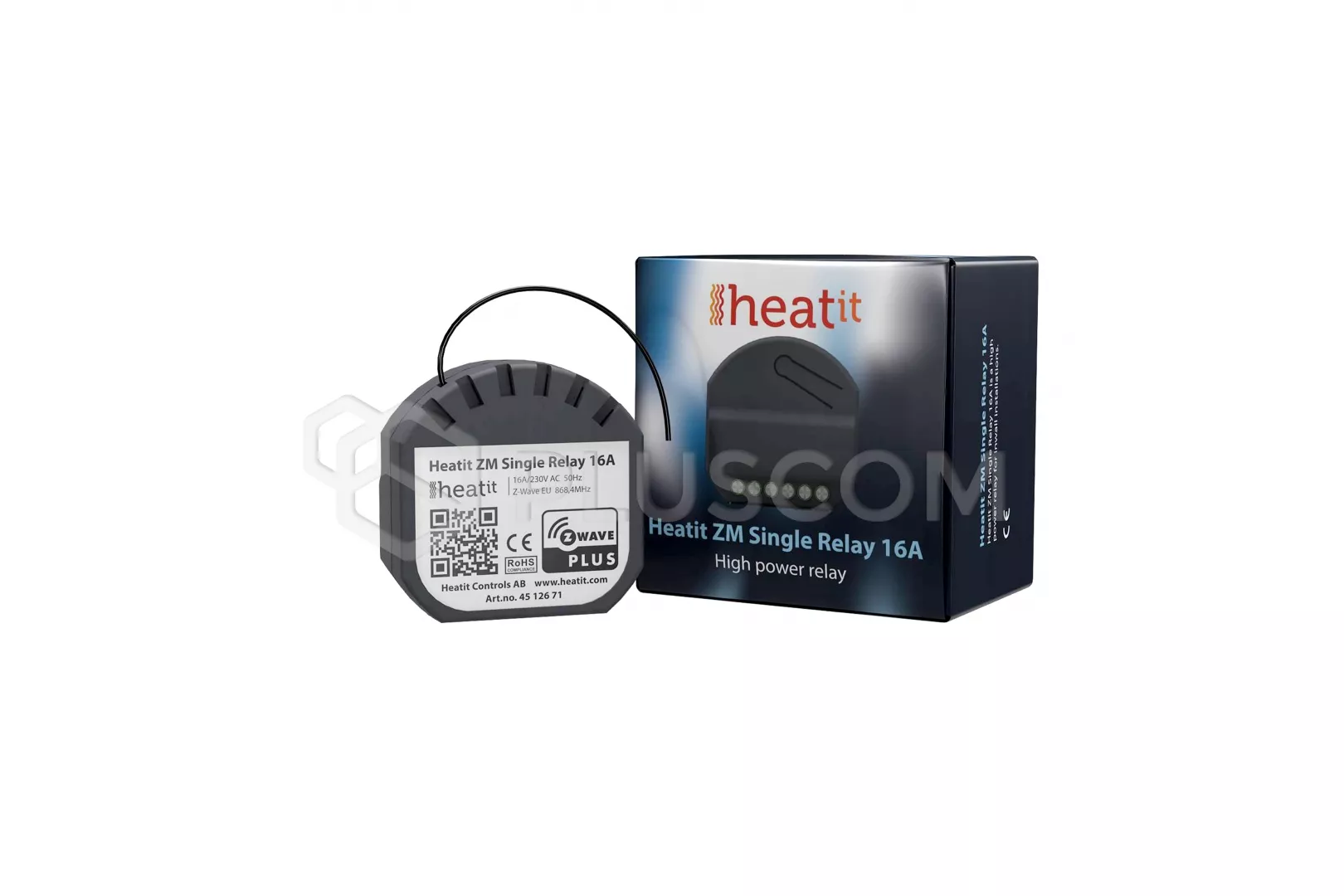

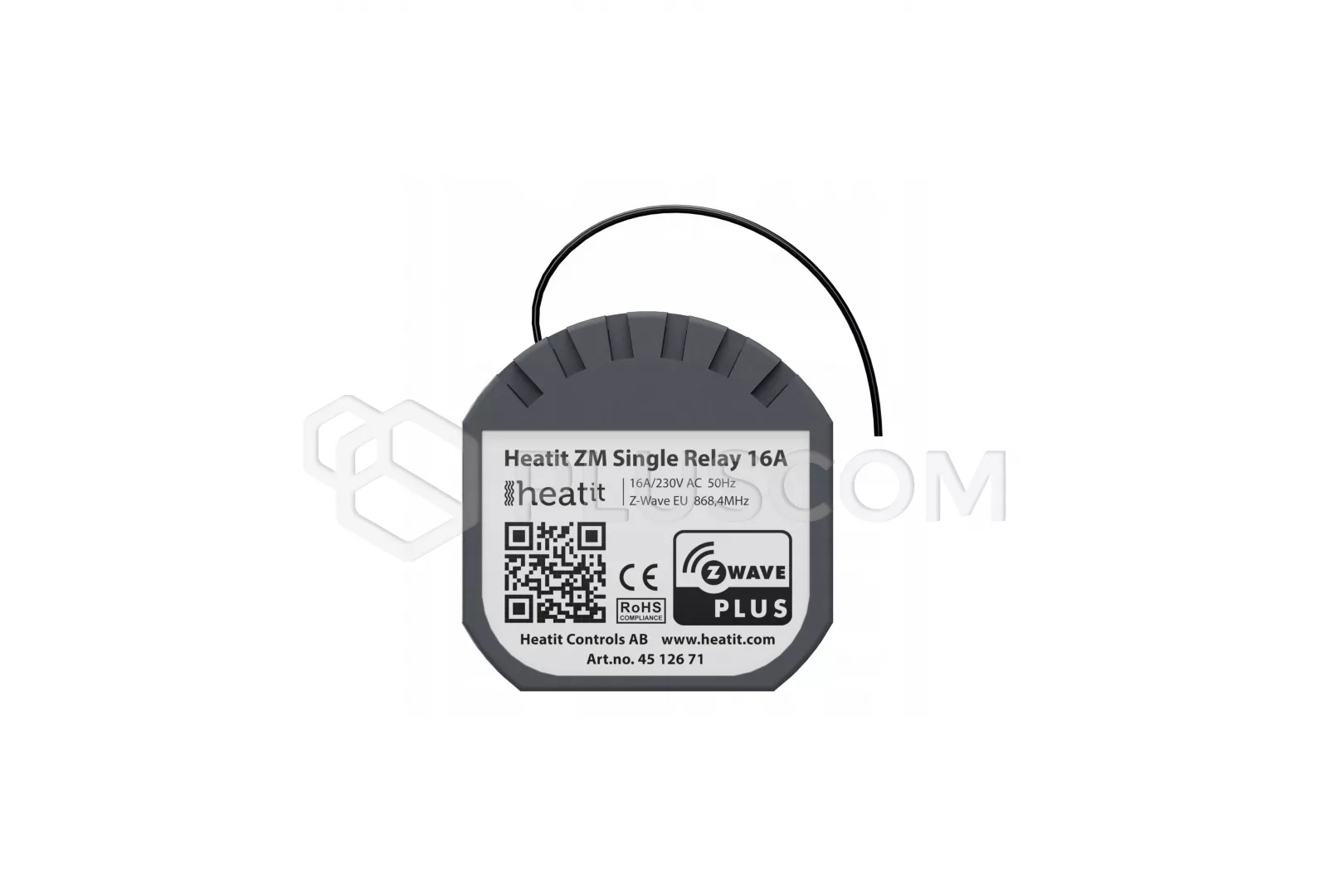

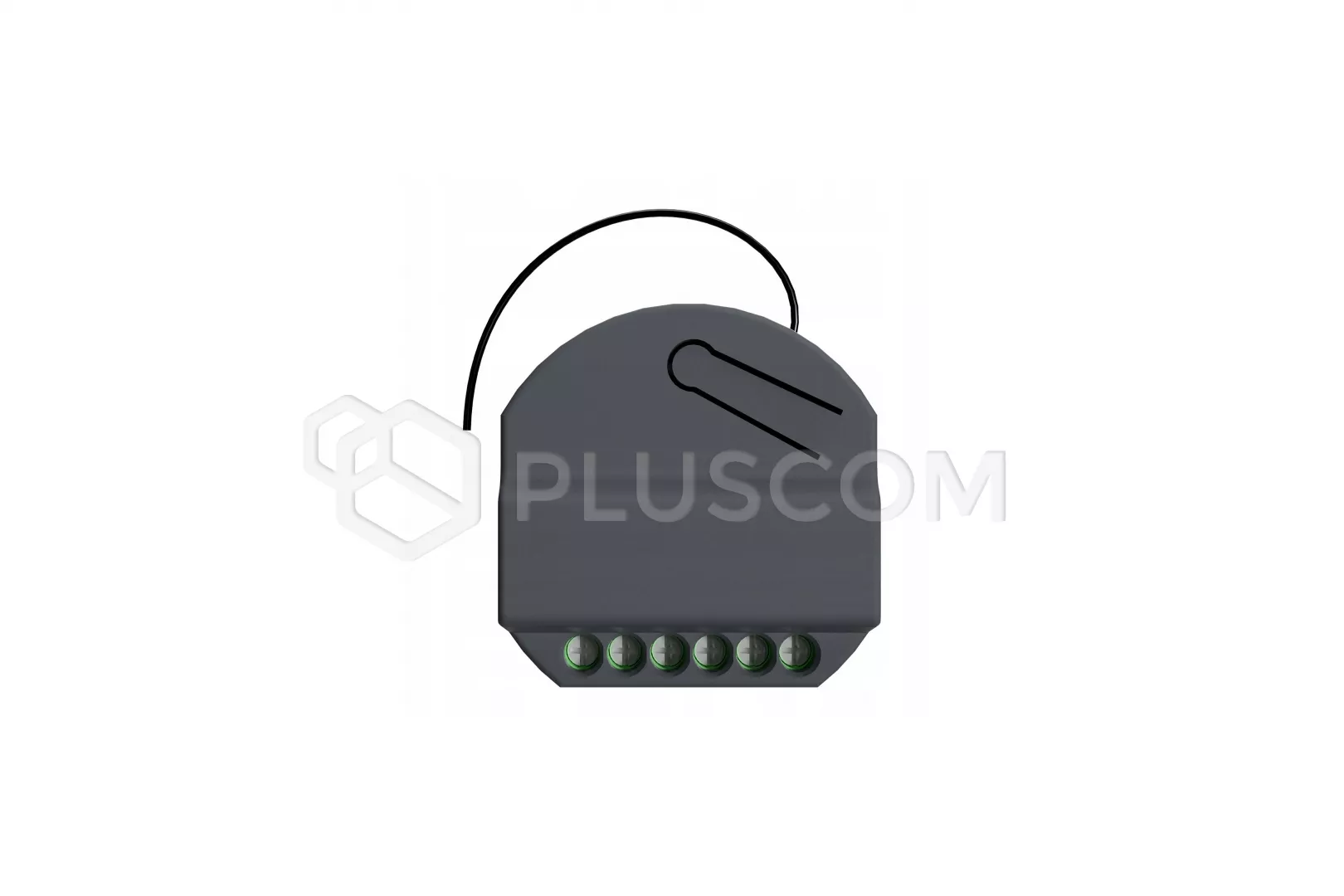

Heatit ZM Single Relay Switch In-wall relay 16A

101,01 EUR including 23.00% VAT
Product code: #33943
Manufacturer: Fibaro
  • Built-in Z-Wave chip
  • For mounting in a flush-mounted box
  • SmartStart function
  • Scene controller and power consumption function
  • Compatible with the FIBARO system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.
Heatit ZM Single Relay is a high power relay for in-wall installations. The relay allows you to control connected devices either through your Z-Wave™ network or via a wired switch. The module is equipped with a 16A relay and has a scene controller functionality.

The Heatit ZM Single Relay has a power metering feature that allows you to monitor the power consumption of your connected devices.

Heatit ZM Single Relay has SmartStart. This feature allows the user to include all devices with SmartStart by scanning the QR codes on the devices. On startup all the devices will automatically be included in the gateway (requires SmartStart compatible primary controller).

FEATURES
  • High power relay for in-wall installations
  • 16A/3600W
  • SmartStart
  • Scene Controller
  • Firmware update (OTA)
  • Power Metering
  • Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class
Heatit ZM Single Relay is designed to fit into a standard mounting box. You can connect to it classic wall keys (also bell keys) - the switch controls one circuit, but can receive commands from 2 connected keys and transmit them to the Z-wave control panel in order to, for example, launch scenes or control others devices.

TECHNICAL PARAMETERS:
  • Communication: Z-wave Plus, chip 700
  • Power consumption: less than 1W
  • Power supply: 230VAC 50Hz
  • Maximum load: 16A/3600W
  • Security: S0, S2 Authenticated Class, S2 Unauthenticated Class
  • IP 20
  • Dimensions: 45 x 45 x 25 mm
