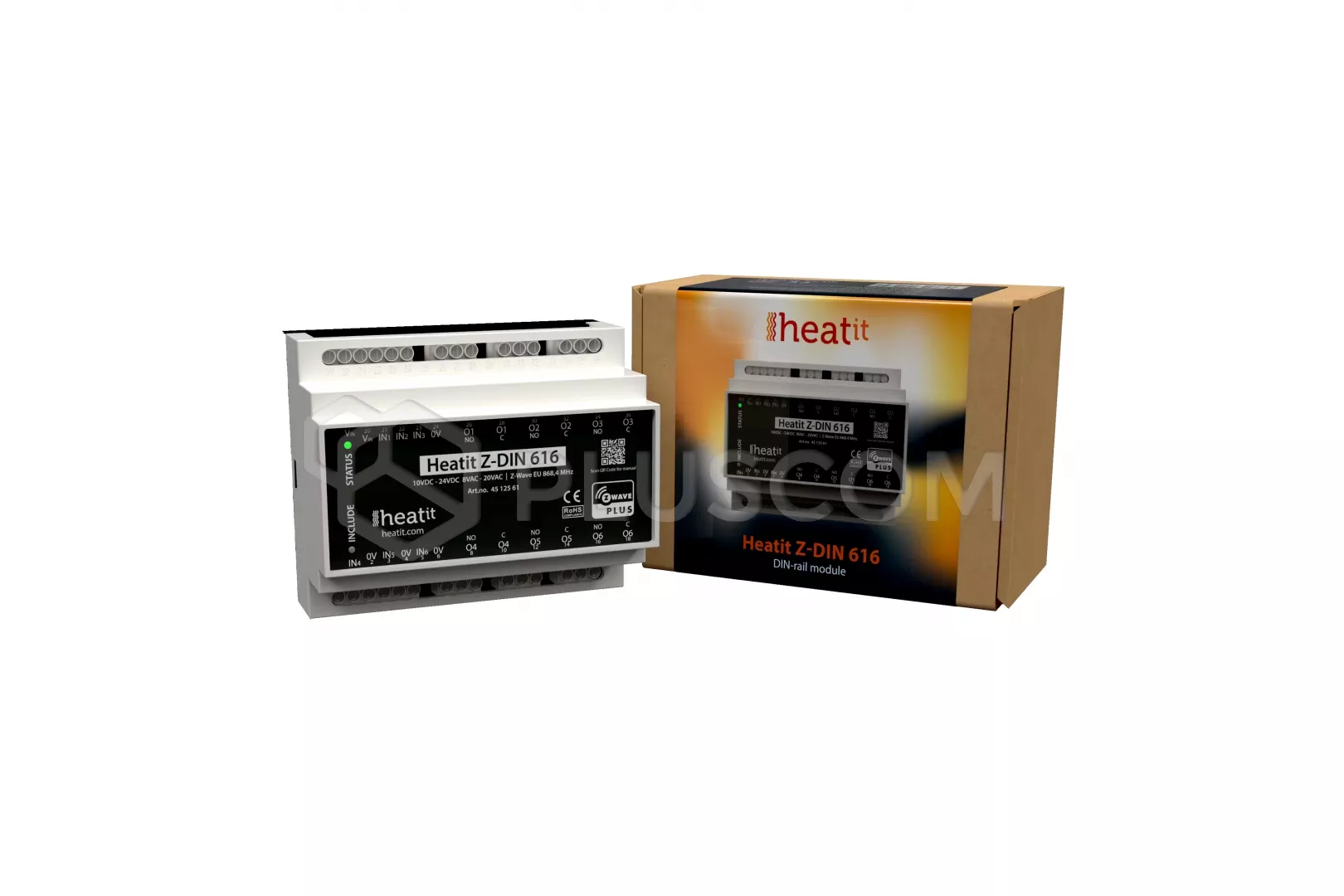

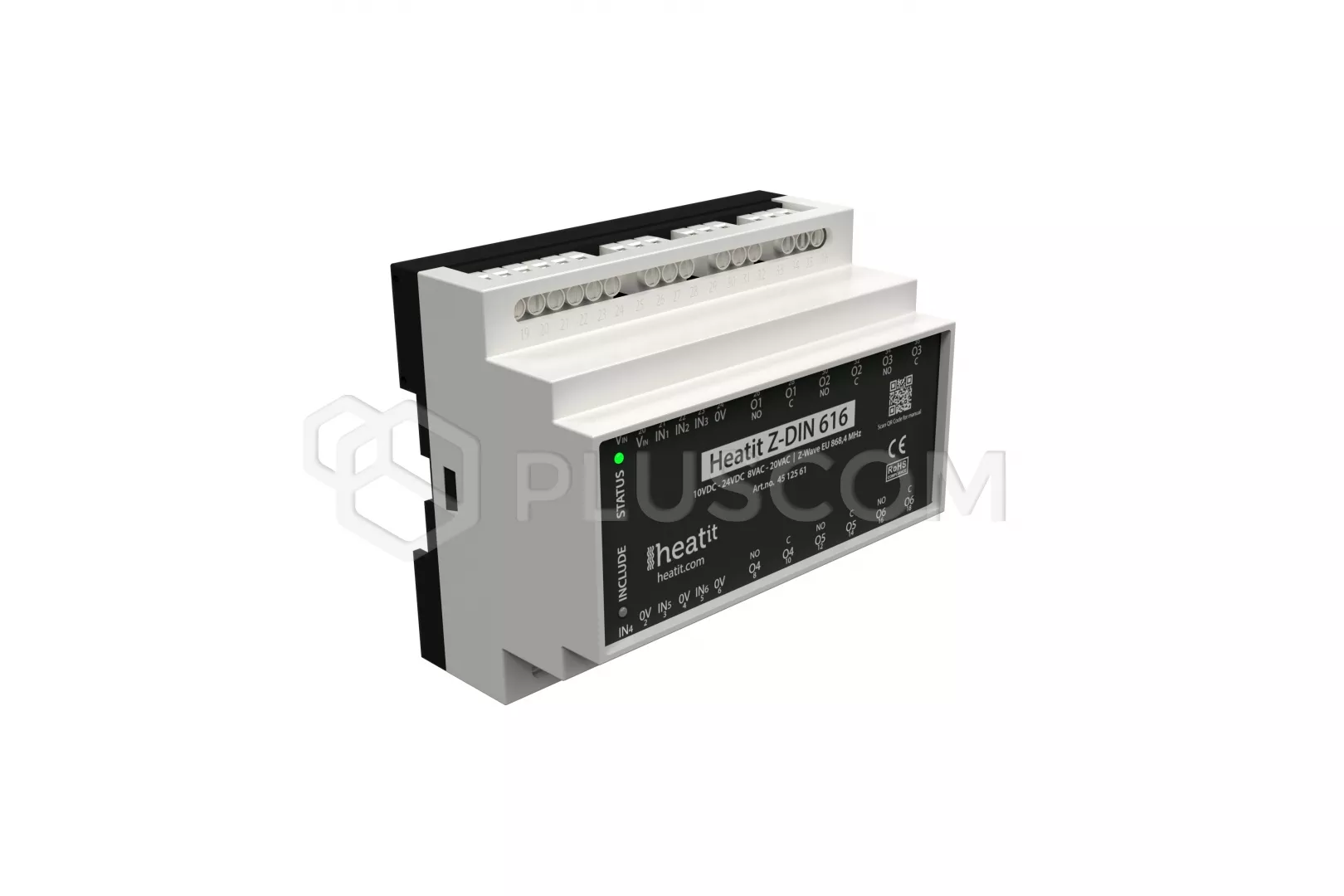

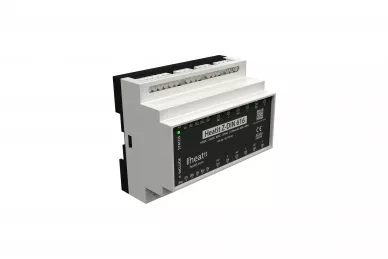

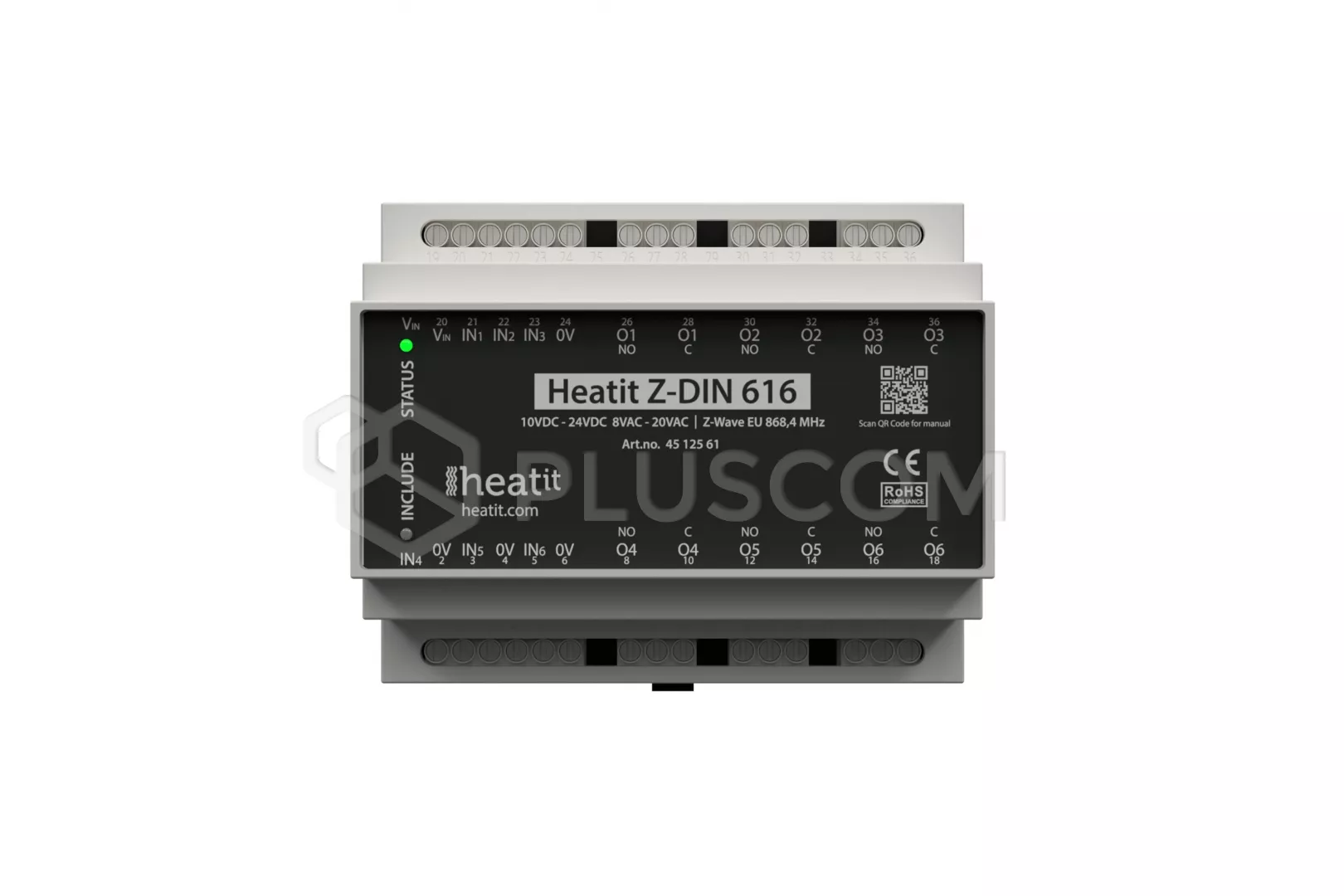

Heatit Z-DIN 616 Module with 6 relays

Heatit Z-DIN 616 Module with 6 relays

Heatit Z-DIN 616 is a 6 x 16A potensial free relay for DIN-rail mounting. The module is equipped with 6 relay switches and 6 digital inputs.

The 6 independent relay switches can be controlled freely through the Z-Wave network and may be used for many different purposes. For example, the 6 digital inputs may be connected to potential-free connectors or open collector outputs, and the inputs allow you to control other Z-Wave devices by sending commands through the Z-Wave network.

The Heatit DIN-rail module can be used for connecting 6 x 230VAC loads freely controllable from the Z-Wave network. All 6 relay outputs are galvanically separated. The 6 inputs of the DIN-rail module allow you to activate predefined scenes in a Z-Wave primary controller.

FEATURES

• DIN rail module with 6 relay outputs and 6 digital inputs (potential-free)
• Z-Wave interface for remote control via Z-Wave network
• Mounted on a DIN rail in the switchboard
• Control of potential-free circuits
• Potential-free relays 6 x 16A
• 2-pole switching solution using 2 x relays in total
• Works as a Z-Wave network repeater
• Firmware update (OTA)
• Supports S0, S2 Authenticated Class, S2 Unathenticated class encryption mode

TECHNICAL PARAMETERS:

• Protocol: Z-Wave, 868.4 MHz (EU)
• Supply voltage: 10 - 24 V DC 8 - 24 V AC
• Power consumption: 0.6 W + 0.5 W current. active relay (max. 4 W)
• Screw terminals: from 0.2 to 2.5 mm2
• Outputs: 6 x 1-pole potential-free (Clearance 10 mm), AC1: 16A 250 V AC, AC3: 750 W (motor), AC15: 360VA, max. starting current 80 A / 20 ms
• Contacts: common and normally closed
• Inputs: 6 x 1-pole potential-free (Clearance 5 mm), max. 10 V DC
• Input impedance: 10K ohms
• Network range: Min. 40 meters
• IP 20
• Dimensions: 85 x 105 x 60 mm, 6 M36 modules
• Certifications: CE, EN 50491-3: 2009 EN 60669-2: 2004 EMC 2014/30 / EU, RoHS 2011/65/EU LVD 2014/35/EU
