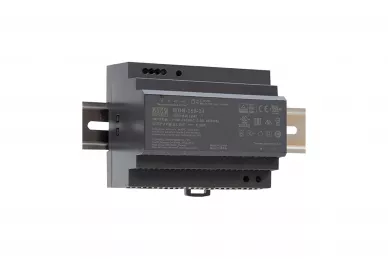

HDR-150-24 Mean Well 24V/150W/6.25A DIN rail power supply

58,14 EUR including 19.00% VAT
Product code: #22596
Manufacturer: Pulsar
  • Output parameters: DC 24V 6.25A max 150W
  • Width: 105mm
  • Depth: 54,5mm
  • Compliance with LPS
  • II Insulation class
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HDR-30-15 Mean Well 15V/2A/30W DIN rail power supply HDR-15-24 Mean Well 24V/0,63A/15W DIN rail power supply HDR-15-12 Mean Well 12V/1,25A/15W DIN rail power supply HDR-100-24 Mean Well 24V/3,83A/100W DIN rail power supply HDR-30-12 Mean Well 12V/2A/30W DIN rail power supply HDR-15-48 Mean Well 48V/0,32A/15W DIN rail power supply HDR-60-48 Mean Well 48V/1,25A/60W DIN rail power supply HDR-60-24 Mean Well 24V/2,5A/60W DIN rail power supply HDR-15-15 Mean Well 15V/1A/15W DIN rail power supply HDR-60-15 Mean Well 15V/4A/60W DIN rail power supply

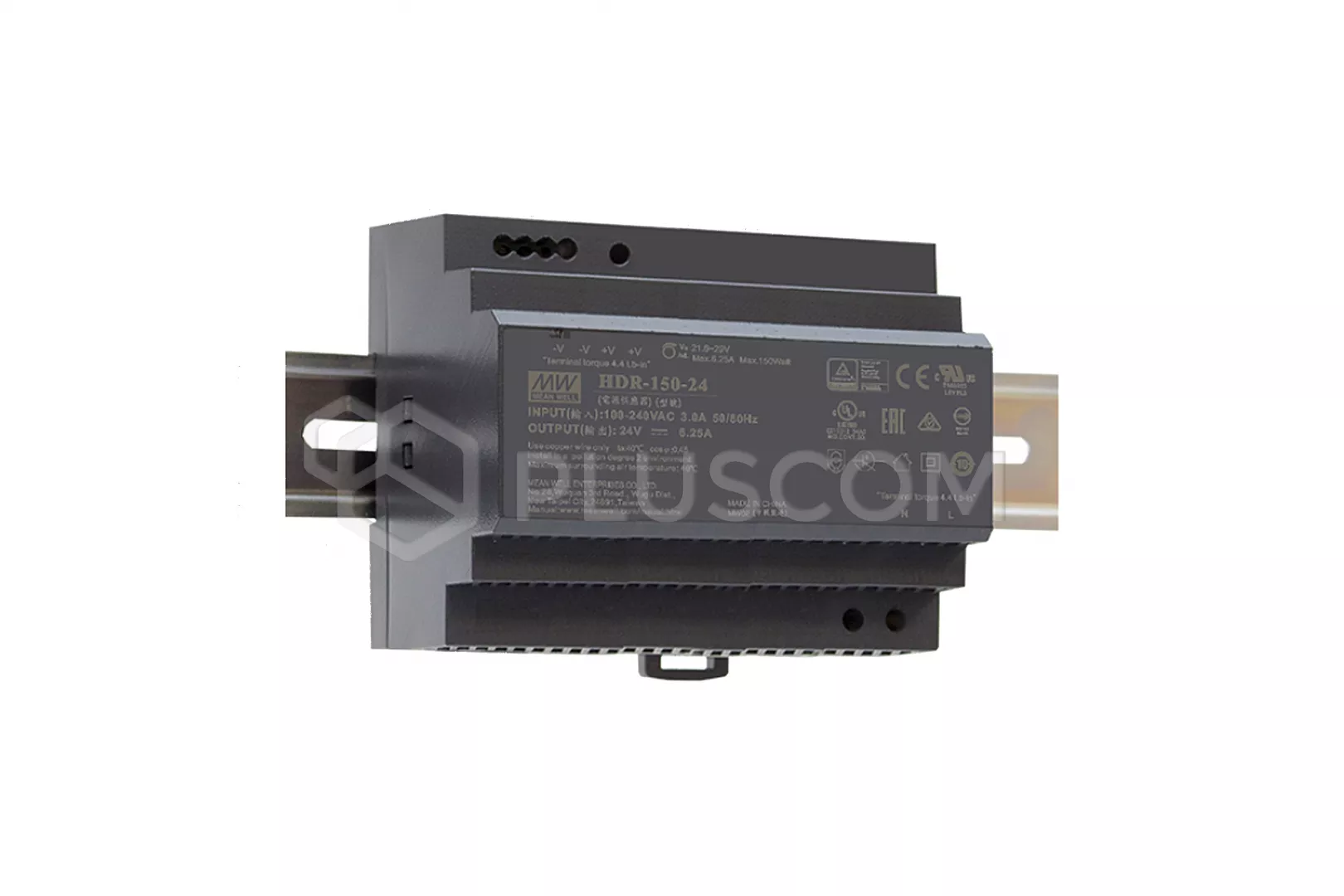

HDR-150-24 Mean Well 24V/150W/6.25A DIN RAIL POWER SUPPLY


The HDR-150-24 DIN rail power supply has an output power of 150W and output voltage 24V. The thinner design saves space and is designed so that the power supply does not require additional cooling sources.

HDR-150-24 has II class of insulation and complies with UL-60950-1 / 508/1310 standards EN60950-1 / 61558-2-16 and with LPS.

PARAMETERS AND FEATURES:
  • Output voltage: DC 24V
  • Output voltage adjustment range: 21.6÷29V DC
  • Output current: 6.25A
  • Power: 150W
  • Universal AC input/Full range: 85÷264VAC, 120÷370VDC
  • Protections:
    • Short circuit
    • Overload
    • Over voltage
  • Cooling by free air convection
  • Working temperature: -30 ° C ÷ 70 ° C
  • Can be installed on DIN rail TS-35/7.5 or 15
  • LED indicator for power on
  • 100% full load burn-in test
  • Dimensions: 105x90x54.5mm
  • Weight: 0.31kg
Download
Datasheet 0.24 MB
CE Declaration 0.32 MB
