HDR-150-12 Mean Well 12V/150W/11.3A DIN rail power supply

58,63 EUR including 20.00% VAT
Product code: #22594
Manufacturer: Pulsar
  • Output parameters: DC 12V 11.3A max 150W
  • Width: 105mm
  • Depth: 54,5mm
  • Compliance with LPS
  • II Insulation class
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HDR-15-12 Mean Well 12V/1,25A/15W DIN rail power supply HDR-30-12 Mean Well 12V/2A/30W DIN rail power supply HDR-60-12 Mean Well 12V/4,5A/60W DIN rail power supply HDR-100-12 Mean Well 12V/7,1A/100W DIN rail power supply

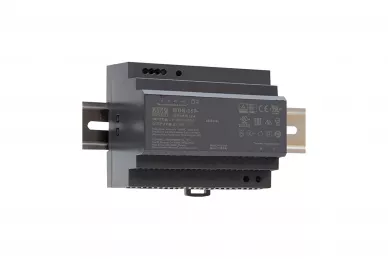

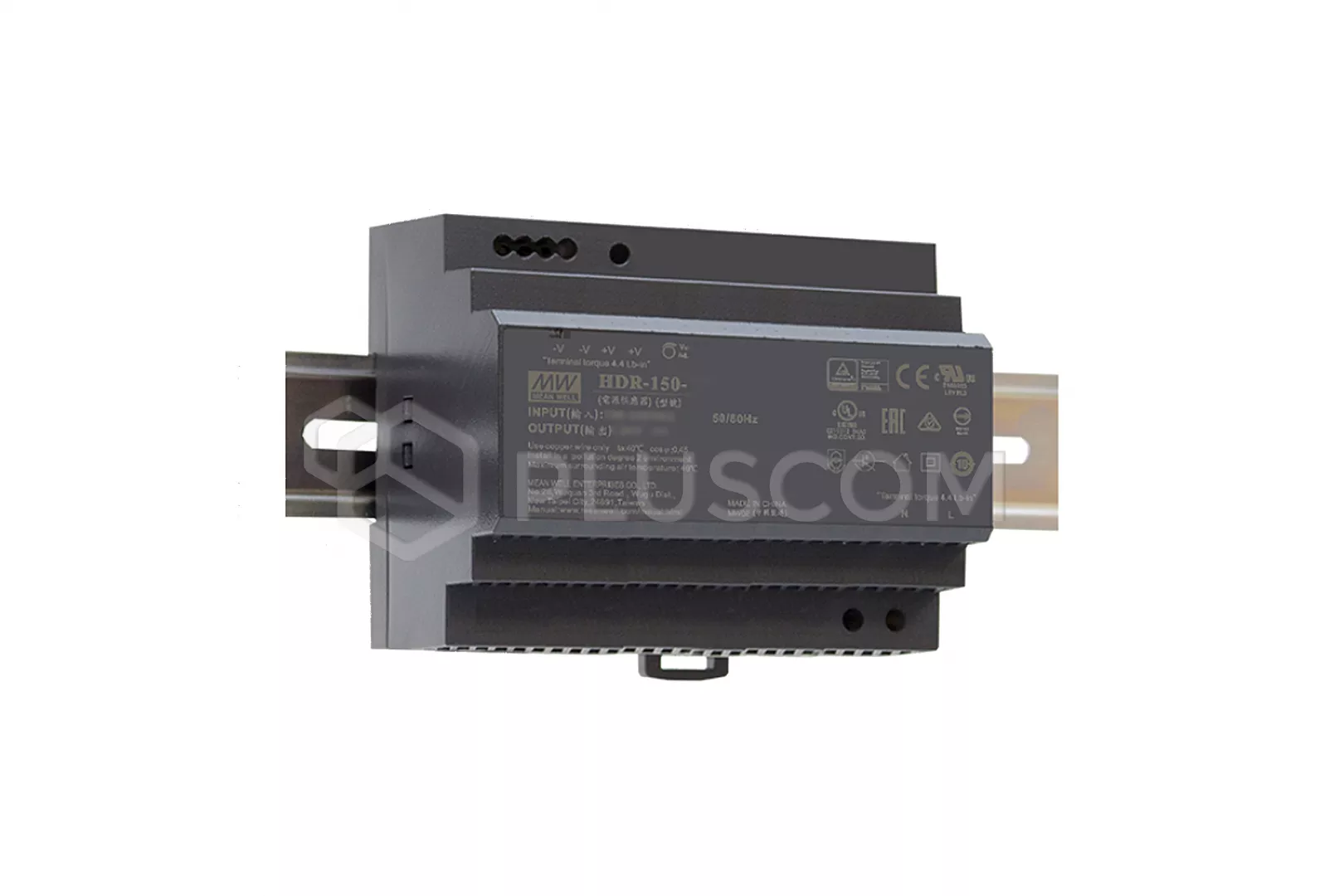

HDR-150-12 Mean Well 12V/150W/11.3A DIN RAIL POWER SUPPLY


The HDR-150-12 DIN rail power supply has an power of 150W and output voltage 12V. The thinner design saves space and is designed so that the power supply does not require additional cooling sources.

HDR-150-12 has II class of insulation and complies with UL-60950-1 / 508/1310 standards EN60950-1 / 61558-2-16 and with LPS.

PARAMETERS AND FEATURES:
  • Output voltage: DC 12V
  • Output voltage adjustment range: 10.8-13.8V DC
  • Output current: 11.3A
  • Power: 150W
  • Universal AC input/Full range: 85÷264VAC, 120÷370VDC
  • Protections:
    • Short circuit
    • Overload
    • Over voltage
  • Cooling by free air convection
  • Working temperature: -30 ° C ÷ 70 ° C
  • Can be installed on DIN rail TS-35/7.5 or 15
  • LED indicator for power on
  • 100% full load burn-in test
  • Dimensions: 105x90x54.5mm
  • Weight: 0.31kg
Download
Datasheet 0.24 MB
CE Declaration 0.32 MB
