HDMI Extender (Cable CAT5e, length 100m) with USB

144,23 EUR including 22.00% VAT
Product code: #12847
  • maximum range 100m
  • cable type: Cat 5e/6
  • USB extender
  • support for 1080p
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

HDMI Extender for IP Cat.5e cable with USB extender

This converter is capable of transmitting HDMI signals using the standard wired LAN Cat 5e cable. This is an economical solution (the LAN cable is less expensive than the HDMI cable) and allows for even greater distances up to 100m. In addition, the device is equipped with an USB extender. You can remotely control the mouse / keyboard connected to the recorder.

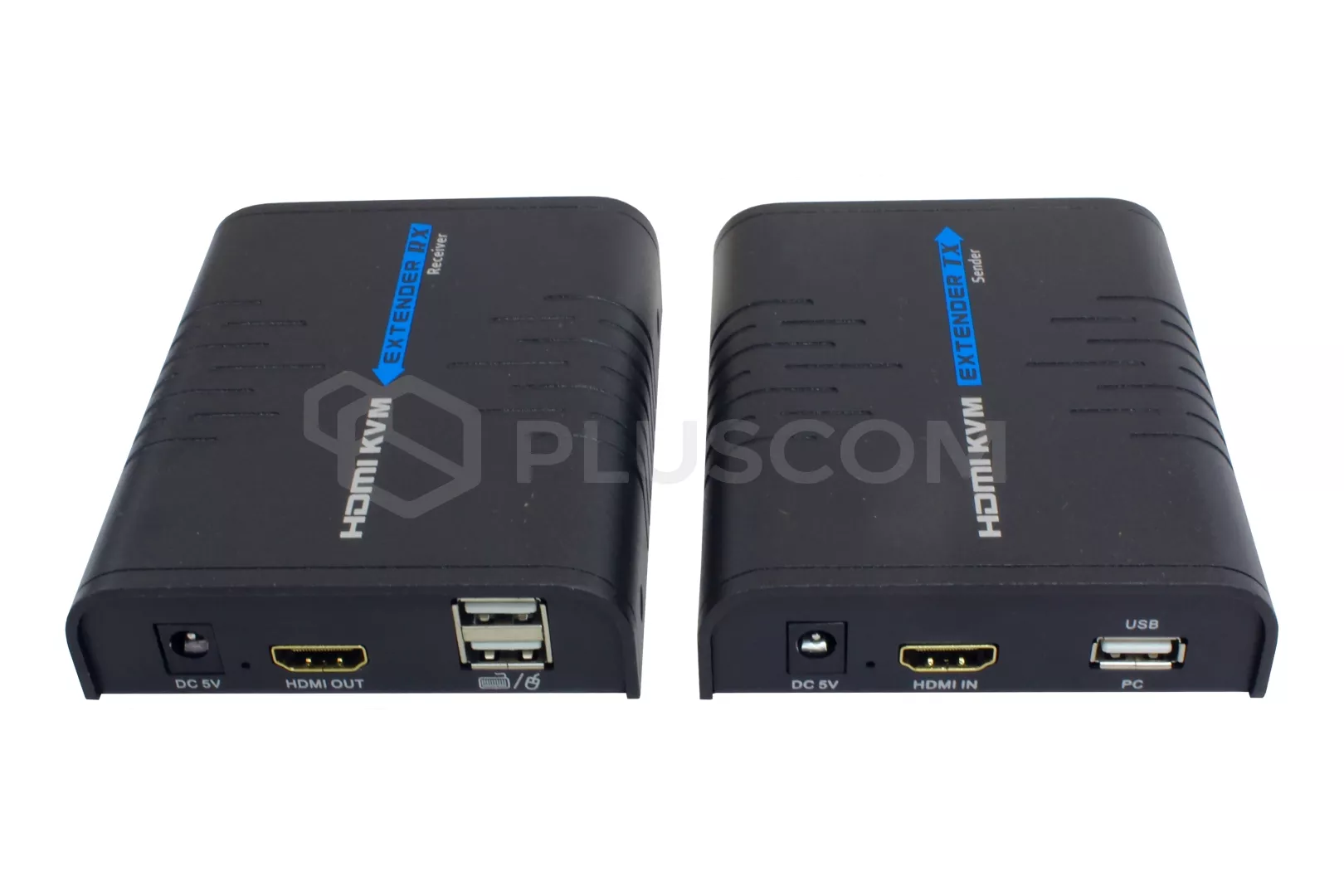

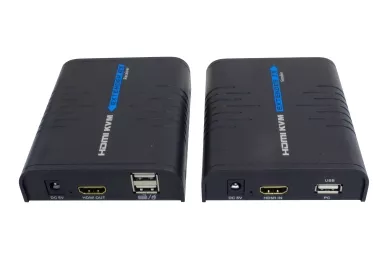

HDMI input/output, USB ports, Power socket:

HDMI input/output, USB ports, Power socket:

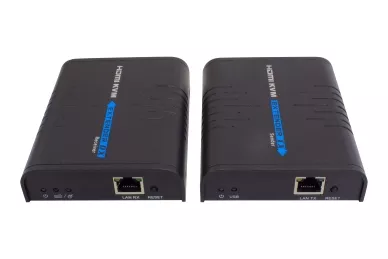

LAN Ports, Reset button, LED:

LAN Ports, Reset button, LED:

This solution is especially recommended in the following situations where:
  • The receiver (TV) is far from the source of the signal eg a DVD player, a satellite receiver, a DVR.
  • We already use the existing installation
  • It is easier to place the twisted pair (it is thinner and easier to install)
The set includes a transmitter (TX), a receiver (RX), two DC 5V / 1A power supplies and USB cable. Both the transmitter and receiver are equipped with an aluminum housing.

PARAMETERS:
  • transmission range up to 100m using one Cat 5e cable or higher
  • wire termination: T586B required
  • HDMI 1.3 standard
  • supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • dimensions: 138 x 90 x 26mm
  • operating temperature: 0°C...70°C
