Gorke ZLX-101 Radio link set

Gorke ZLX-101 Radioline Set

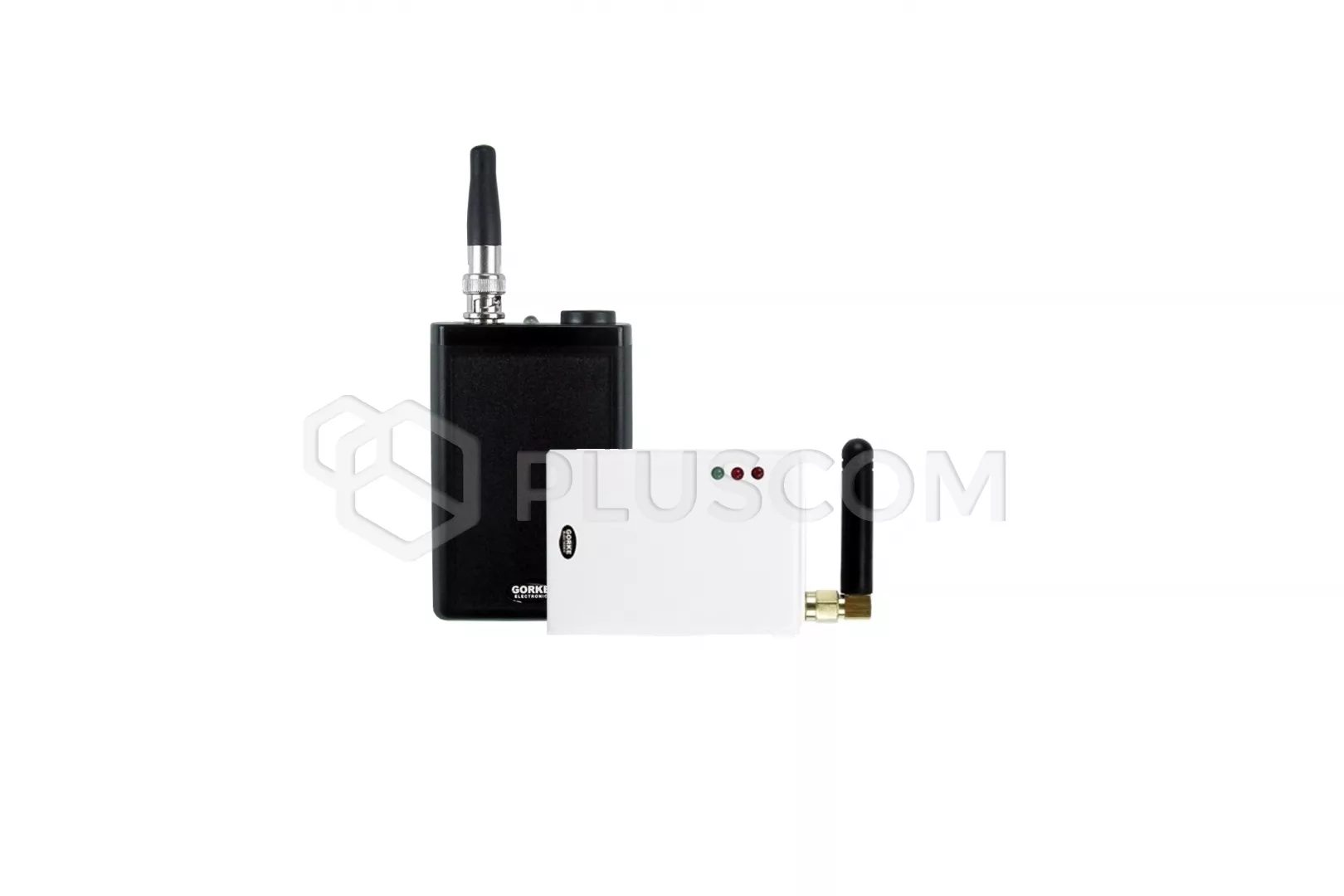

ZLX-101 is a radioline set consisting of the RSX-K02 receiver and the RNX-101 transmitter.
This solution is dedicated to the Security Agency, for systems in urban areas. The range of the set is up to 5 km in open space. Can be used indoors reach several floors.

The RNX-101 remote control model is equipped with a two-color LED, buzzer and vibrations confirming that a transmission has been sent or received.
The biggest advantage of the device is its resistance to interference - noise. It allows for effective communication in an industrial environment or in center of large cities.
The design of the remote control is based on the LX radio module that it uses LoRa technology for advanced wireless communication.



Remote control parameters:

• frequency: 433.92 MHz
• signaling: 2-color LED + buzzer + vibration
• power supply: LS14500 battery
• range: 5 km
• number of keys: 1
• SMA 50 Ohm antenna socket
• angular helical antenna (total length 58 mm)

RSX-K02 is a 2-channel receiver with an LX receiving module. The ability to provide effective communication in conditions with numerous obstacles or between floors allows for use in the field urbanized. A feature of the module is its resistance to strong GSM signals from telephones, modems or nearby workers relay stations, as well as WiFi or Bluetooth devices.

Receiver parameters:

• frequency: 433.05 - 434.79 MHz
• radio module: LX / ST1 transmitting/receiving
• receiver sensitivity: min -130dBm
• memory capacity: 256 remote controls
• number of relays: 2
• operating mode: monostable / bistable one-key / bistable two-key
• power supply: 12V DC (10-15V DC)
• quiescent current consumption: 20 mA
• maximum current consumption: 90 mA
• cooperation: LX series transmitters: PUX, PPX, RNX
• antenna: helical, SMA (MALE) 50 Ohm connector
