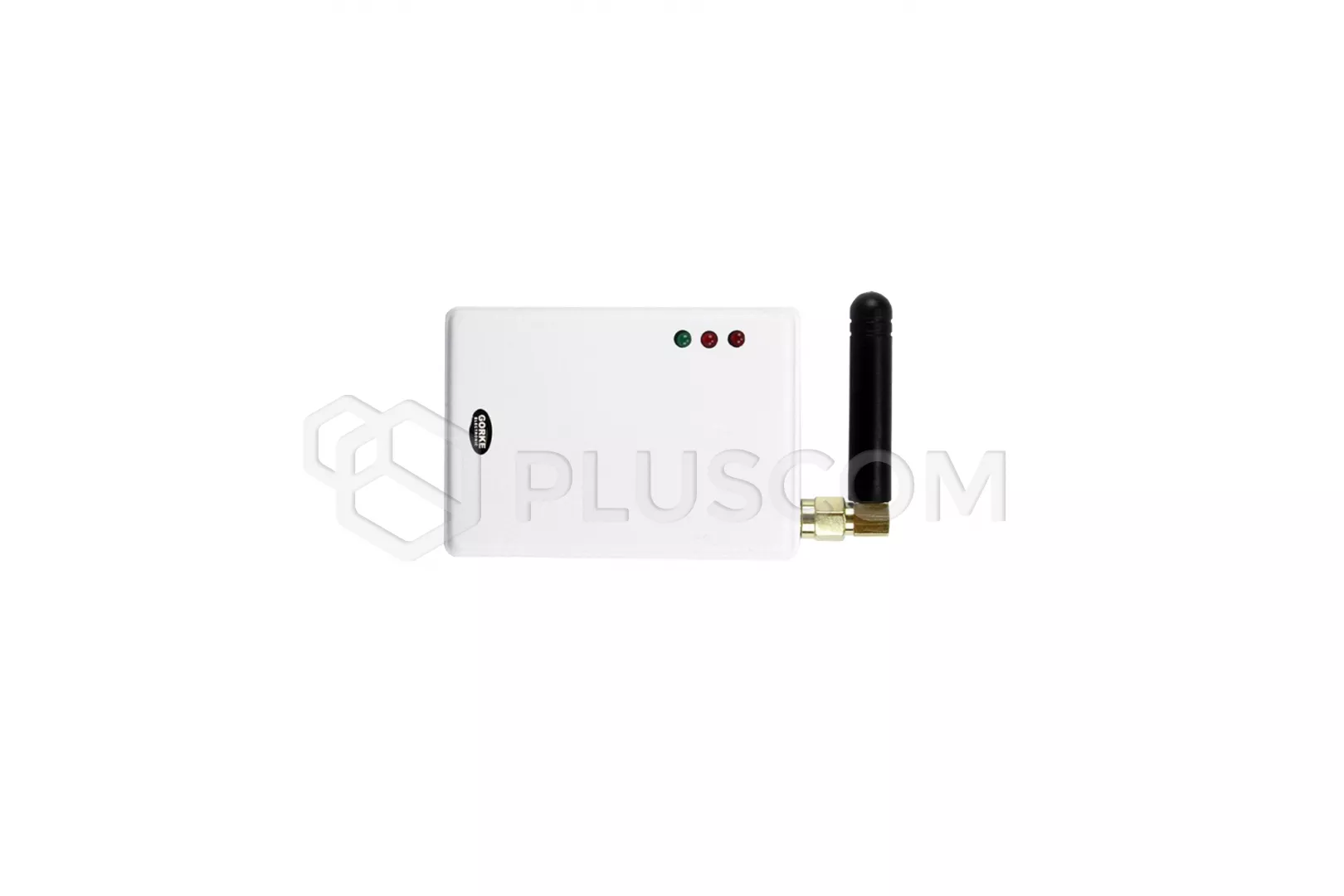

Gorke RSX-K02 2-channel receiver

82,51 EUR including 23.00% VAT
Product code: #25677
Manufacturer: Gorke
  • 2-channels receiver
  • Range: up to 4km
  • Built-in LX receiving module
  • Memory: 256 transmitters
  • Operating mode: bistable, monostable, two-key
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke NBX-105 5-channels stationary sender Gorke NBX-102 2-channels stationary sender Gorke AMD-430 SMA magnetic antenna

Gorke RSX-K02 2-channel, bidirectional receiver

RSX-K02 is 2-channel receiver whose design uses the LX z receiving module LoRa technology used for advanced wireless communication. The range of applications includes cases of difficult radio conditions, which do not standard radio solutions can meet. Ability to communicate effectively in conditions with numerous obstacles or between floors allows for use in an urbanized area.

Receiver features:
  • many times greater working range
  • high resistance to interference signals
  • low power consumption
  • two-way communication
The receiver is working on frequency 433.2 MHz in variable coding, thanks to which radio transmission ensures high safety of use and each transmission is different previous one. The transmitter and receiver operate in bidirectional mode, i.e. the receiver sends confirmation to the remote control/transmitter that the signal has been received. IN Depending on the transmitter/remote control version, confirmation of receipt is signaled is a vibration, sound or LED signal specific color.

The unique parameter of the LX module used in the RSX receiver is: its ability to successfully receive a radio signal even if it is weaker than the noise surrounding it. This feature allows for effective management communication in conditions of high disturbances occurring in an industrial environment or centers of large cities. Another feature of the module is its resistance to strong GSM signals coming from telephones, modems or nearby stations relays, as well as WiFi and Bluetooth devices. To work with RSX-K02 LX series handheld transmitters, type RNX, single-key and multi-key are provided, PUX-303 remote controls or PPX-202 under-counter buttons and NBX-102 and 105 transmitters. As an option, an antenna with a magnetic mount AMD-430 can be used.
