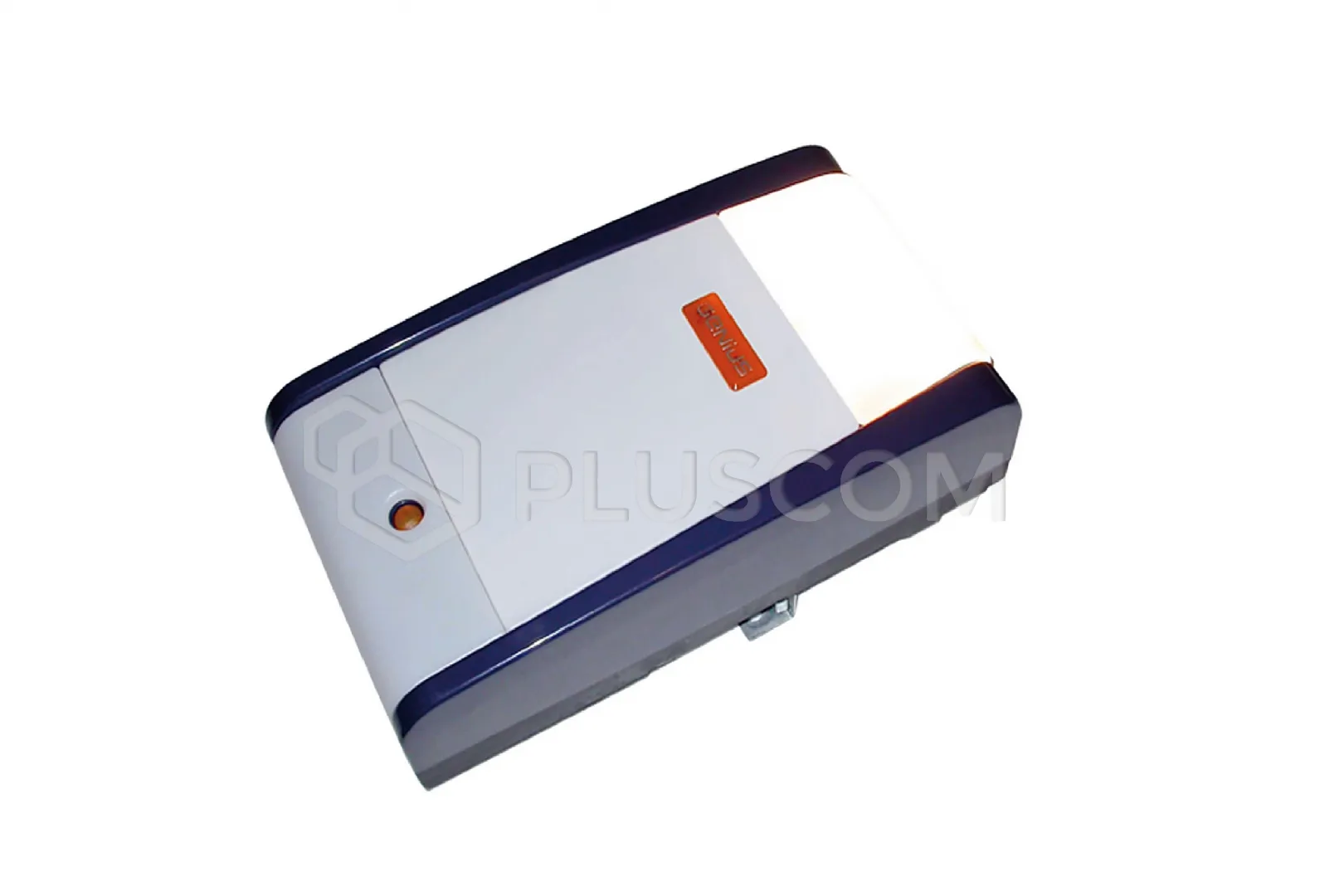

Genius ZODIAC 60 Garage Door Operator 12.5m

Product code: #43875
Manufacturer: GENIUS
  • Pulling force: 620N
  • Surface of the gate: 12.5m²
  • Built-in Geo 08 control panel
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Genius ZODIAC 60 Garage Door Operator 12.5m


The Zodiac 60 24V electromechanical self-locking operator with a pulling force of 600 N and a built-in Geo 08 control unit is suitable for sectional garage doors up to 5 x 2.50 m and roller doors up to 3 x 2.50 m.
The operator has a compact head size that requires minimal installation space.

The operator is made of a durable polymer that reduces weight and facilitates installation. It has an integrated warning light and is compatible with energy-saving lamps. The programming panel is easily accessible, there's no need to open the motor cover, and it comes standard with a power cable and plug.
FAAC PATENT - 3-step rail assembly system.

Technical Specifications:

  • Power supply: 230V
  • Motor: 24V
  • Power: 220 W
  • Thrust force: 60 daN
  • Max. number of consecutive cycles: 30
  • Max. travel: 1900 – 2500 – 3100 mm
  • Travel speed, no load: 6.6 m/min
  • Max. sectional door size: 5 x 2.50 m
  • Frequency of use at 20°C: 80 cycles per day
  • Ambient operating temperature: -20°C / +55°C
  • Protection class: IP20
  • Weight: 6.6 kg
