Genius RAINBOW FAST 524 C Kit with 4m arm

Genius RAINBOW FAST 524 C Kit with 4m Arm

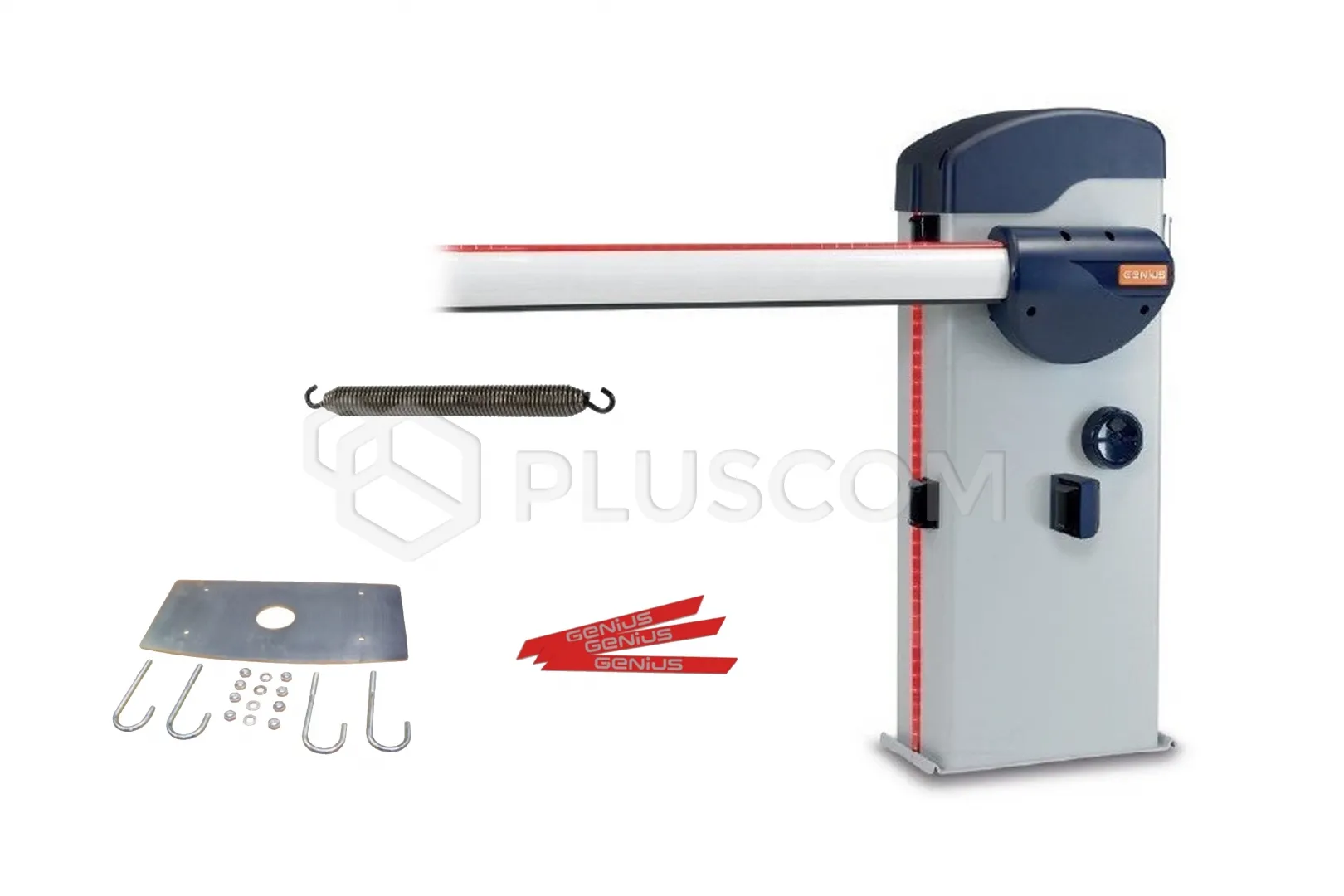

The set includes:

• Genius 6130034 RAINBOW 524 C Automatic barrier 24V
• Faac 428043 One-piece oval arm "S" 4300mm (without stickers) for barrier
• Faac 6100291 Balancing spring for barrier arms
• Genius 6100201 Kit of 6 stickers with brand
• Genius 6100294 RAINBOW Mounting Base

The Rainbow Fast 542 C self-locking barrier is an excellent solution for areas with high traffic: entrances to parking lots, garages or industrial areas. The use of an encoder enables obstacle detection during movement.

FEATURES:

• Automatic arm balancing thanks to 1 spring
• Lamps for the arm and barrier body
• Control unit in an ergonomic and easily accessible housing
• Encoder for obstacle detection
• User-friendly unlocking mechanism with a dedicated key
• Certified for continuous operation (over 1,000,000 cycles)

FAST self-locking barrier with encoder and integrated LYNX07 control unit.

The set includes an oval arm S 4300mm with stickers, a balancing spring Ø 6.5 and a mounting base.

TECHNICAL DATA

• Power supply: 230 V
• Electric motor: 24V
• Max. power at thrust: 280 W
• Nominal motor power: 160 W
• Max. torque at 24Vdc: 155 Nm
• Rated operating torque: 30 Nm
• Nominal opening/closing time: 2 to 3 sec
• Use frequency at -20°C: continuous
• Ambient operating temperature: -20°C to +55°C
• Noise: >70 dBA
• Protection class: IP 54
• Drive weight: 66 kg
• Dimensions: 1225 x 415 x 268 mm
