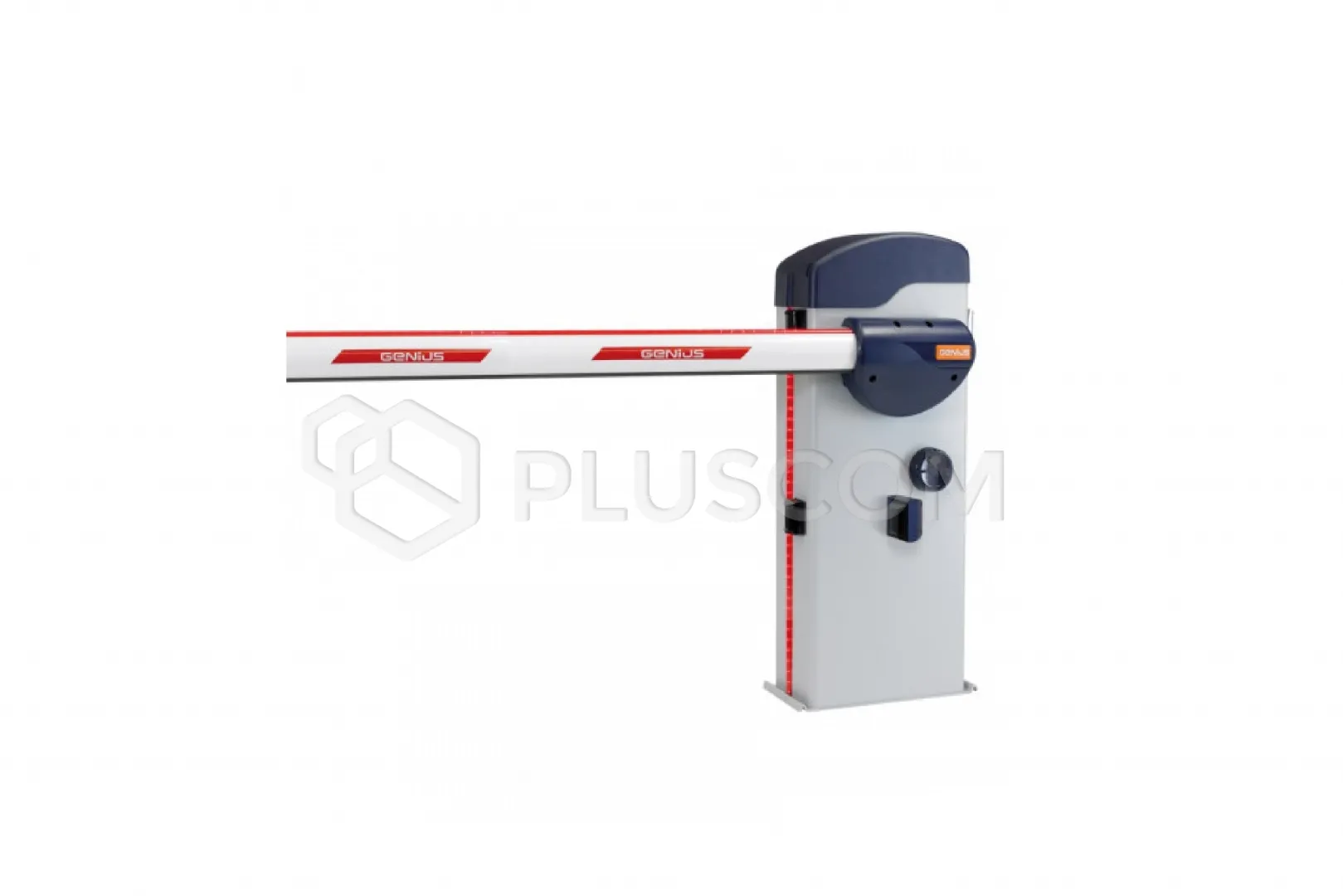

Genius 6130037 RAINBOW FAST 324 C Automatic barrier 24V

2344,93 EUR including 23.00% VAT
Product code: #26941
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Nominal opening/closing time: 2 to 3 sec
  • Max. arm length: 3m
  • Encoder for obstacle detection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Genius 6100297 Arm lighting kit (connection + lighting strip) RAINBOW Faac 737621 Foundation base for fixed support Faac 58F1812 Balancing spring for barrier arms from 2 m to 3 m - red Faac 428805 Adjustable barrier arm support Genius 6100300 RAINBOW Battery Charging Cable Kit Genius 6100295 Bracket for RAINBOW photocell Genius 6100278 RAINBOW Underarm Apron Genius 6100201 Kit of 6 stickers with brand Faac 428806 Adjustable boom arm support Faac 428444 Oval arm break kit

Genius 6130037 RAINBOW FAST 324 C Automatic barrier 230V


The Rainbow Fast 342 C self-locking barrier for arms with a maximum length of 3m is an excellent solution for areas with high traffic: entrances to parking lots, garages or industrial areas. The use of an encoder enables obstacle detection during movement.

FEATURES:

  • Available version: 24 V for passages with widths of 3, 5 and 7 m
  • Automatic arm balancing thanks to 1 or 2 springs
  • The 7 m arm is supplied in two elements with a connector
  • Lamps for the arm and barrier body
  • Control unit in an ergonomic and easily accessible housing
  • Encoder for obstacle detection
  • User-friendly unlocking mechanism with a dedicated key
  • Certified for continuous operation (over 1,000,000 cycles)

FAST self-locking barrier with encoder and integrated LYNX07 control unit.

Technical data;

  • Power supply: 230 V
  • Electric motor: 24V
  • Max. power at thrust: 280 W
  • Nominal motor power: 160 W
  • Max. torque at 24Vdc: 155 Nm
  • Rated operating torque: 30 Nm
  • Nominal opening/closing time: 2 to 3 sec
  • Use frequency at -20°C: continuous
  • Ambient operating temperature: -20°C to +55°C
  • Noise: >70 dBA
  • Protection class: IP 54
  • Drive weight: 66 kg
  • Dimensions (H/W/D): 1225 x 415 x 268 mm
