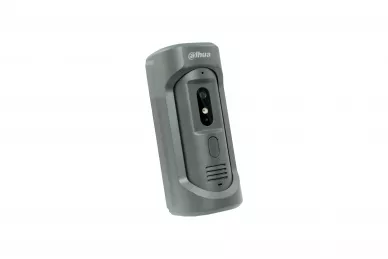

Gate station Dahua VTO2101E-P

Gate station Dahua VTO2101E-P

SIP panel door DAHUA VTO2101E DH-P is a modern door station is designed to work within the system wideodomofonowych standard Dahua IP / SIP . The device requires a SIP server, and may be for itself SIP server. You are required to use a special version of the firmware monitors VTH.

KEY FEATURES:

• work in the standard IP / SIP
• Transmitter 1 / 2.7 "CMOS 2Mpx
• lens: 2.8mm (angle of view of approximately 110 ° C.)

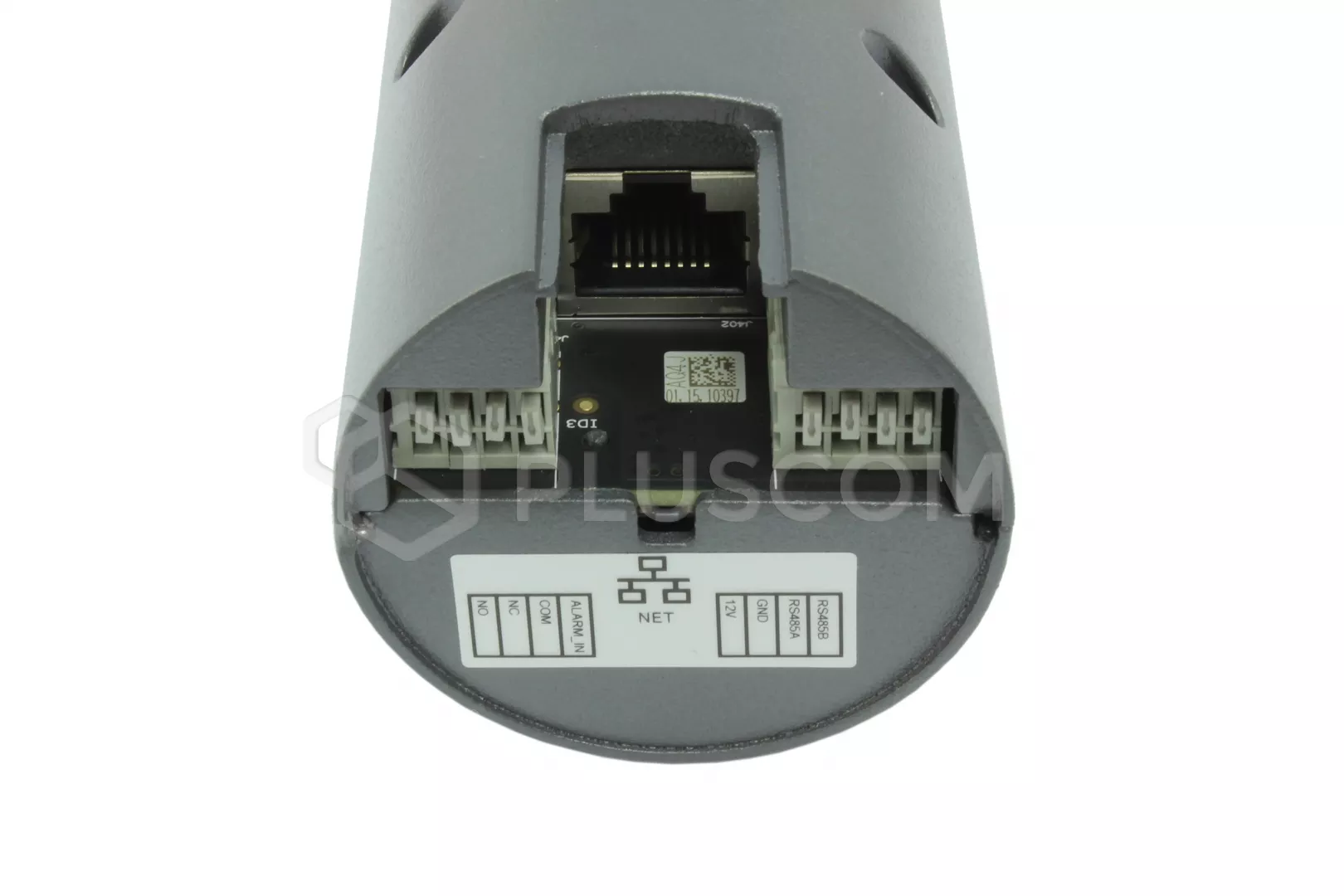

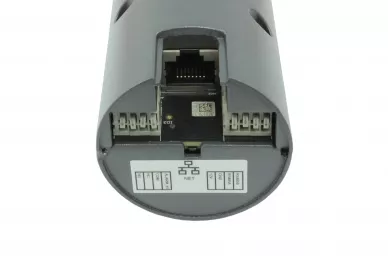

• Ethernet interface: 1x RJ45 10 / 100Mbps Base-T
• supported resolution: 720p , WVGA , D1
• illumination: IR LEDs (automatic)
• Interface: RS-485, 1 alarm input
• Support microSD / microSDHC cards up to 64GB
• configuration via a web browser (Web Service)
• VDPConfig by management or Smart PSS
• the ability to record video recorders for IP channels Dahua support
• You can work in standalone mode (without monitor)
• service through an additional relay module DEE1010B
• built-in relay (NO / NC)
• Housing: degree of protection ( IP65 ) and vandal-resistant ( IK10 )

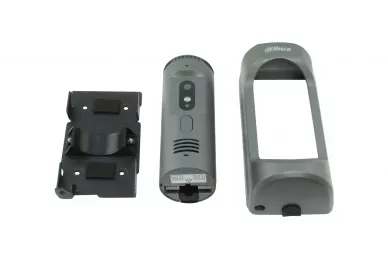

• surface mounting
• material: zinc alloy (front panel), aluminum (rear panel)

TECHNICAL SPECIFICATIONS:

VIDEO

• Compression Standard: H.264
• Converter: 1/2.7" 2Mpx CMOS
• Lens: 2.8mm
• Viewing angle: H: 100°
• Resolution:
• • 720p (1280×720)
  • WVGA (800x480)
  • D1 (704x576)
• Processing speed: 25/30 kl/s
• Day Night: ICR, 5m
• IR illuminator: Automatically in low light conditions
• Control: Brightness, contrast, saturation, hue
• Image functions: BLC, HLC, WDR
• Mirror reflection: On. / Off.
• Image rotation: Yes

AUDIO

• Compression: G.711
• Audio input: surround microphone
• Audio output: built-in speaker
• Two-way conversation: the possibility of two-way conversation
• Sound processing: noise suppression, echo cancellation

NETWORK

• Ethernet: 1x RJ45 10/100Mbps Base-T
• ProtoCOL: TCP/IP, SIP

UTILITES

• Induction: mechanical button
• Built-in relay: 1 (management of electric lock)
• Alarm inputs: 1 (open button, door sensor)
• RS485: 1
• Memory: 1x microSD card slot up to 64GB (record images and video from the station)

OTHERS:

• POWER:
• • DC 12V
  • PoE DC 48V (802.3af)
• Power consumption :
• • stendby ≤2.5W
  • work ≤7W
• Working temperature: -40°C ~ +60°C
• Humidity: 10 ~ 90%
• Weight: 0.8kg

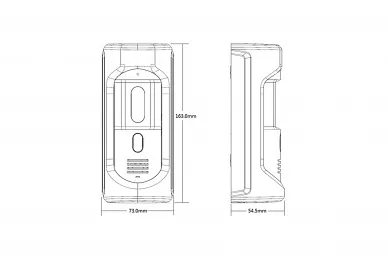

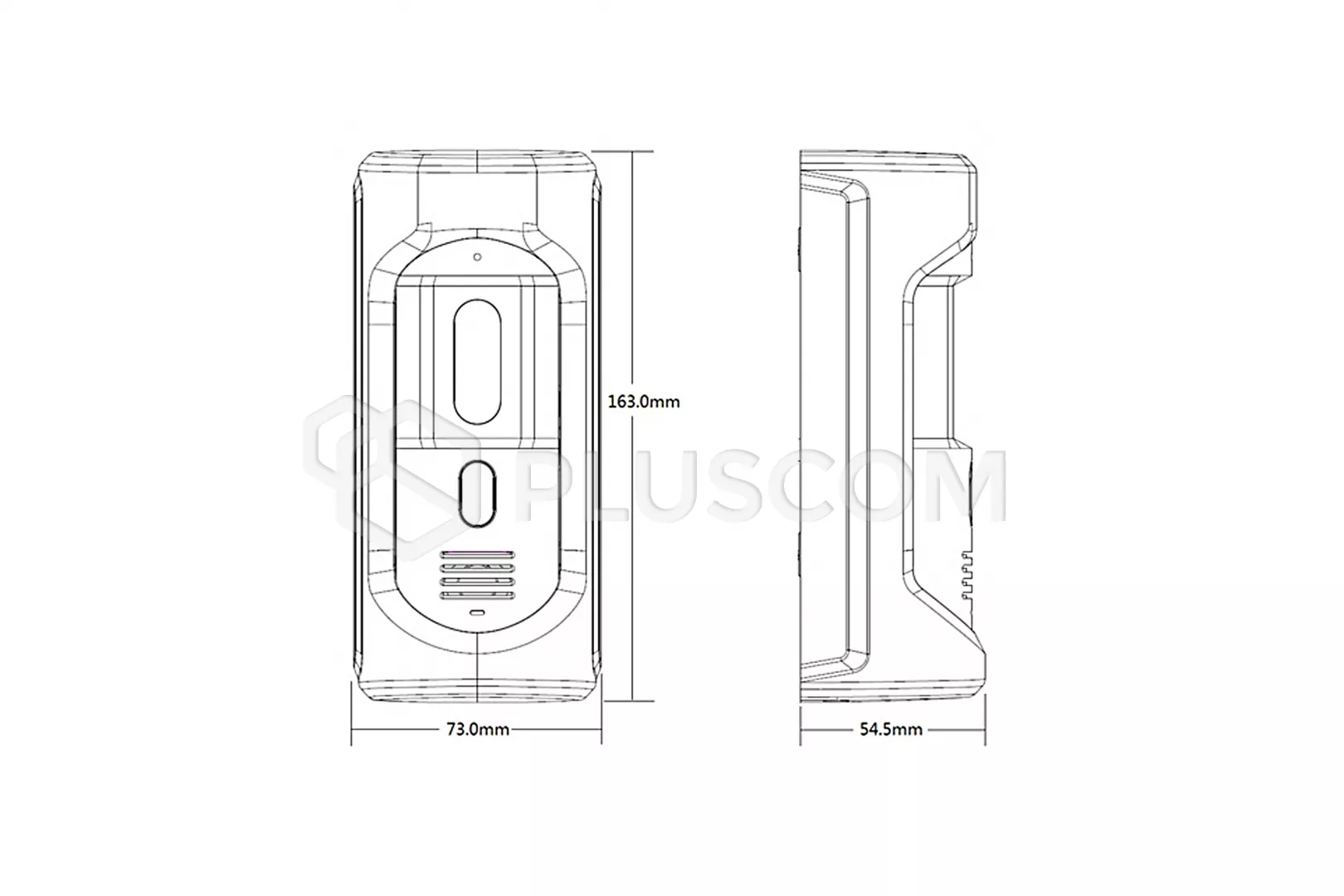

• Dimensions: 73x163x54.5mm
