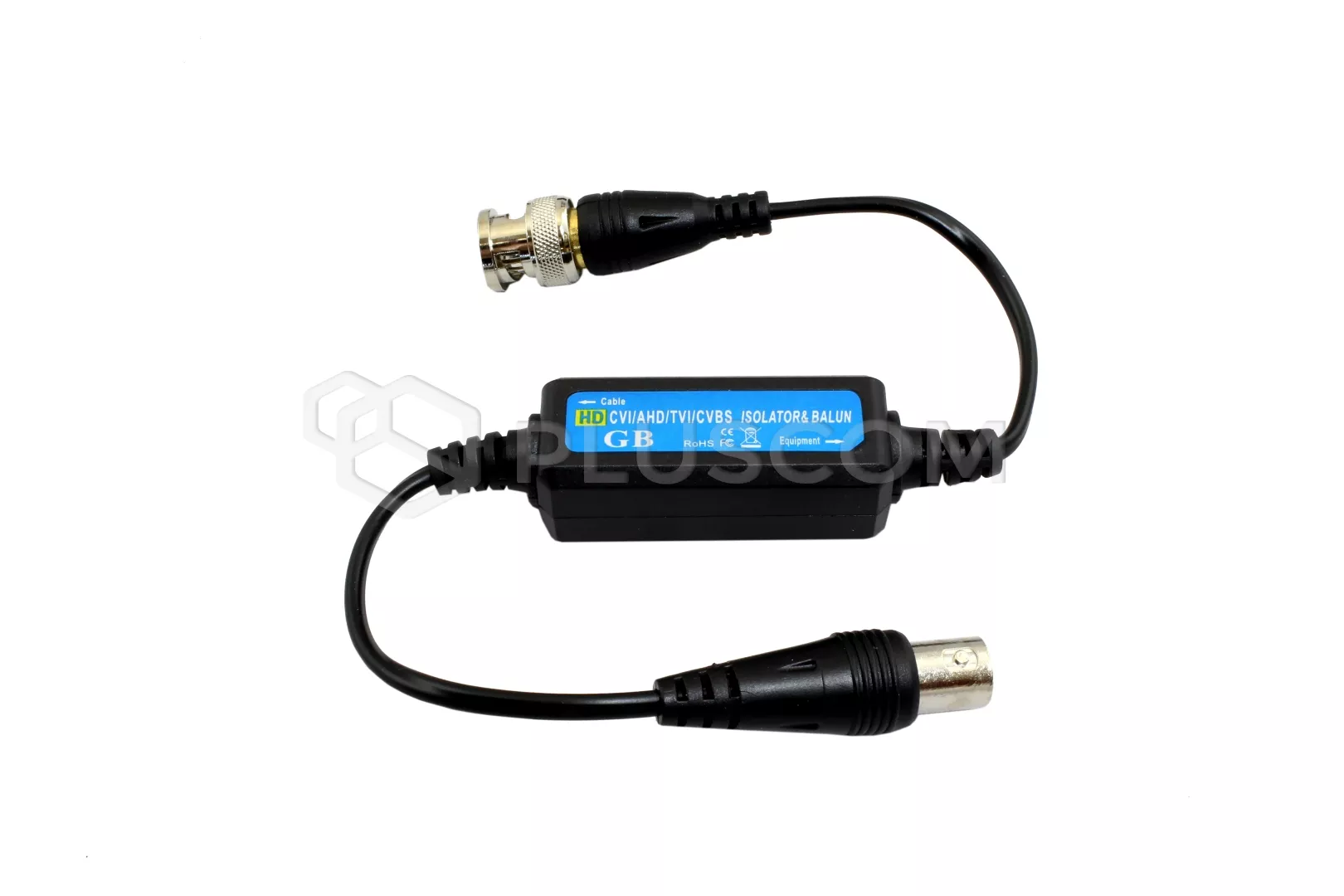

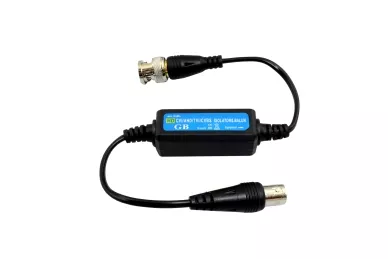

Galvanic separator with BNC connectors

The galvanic separator eliminates image noise in the form of moving belts, curved and jagged images.
These disturbances are often caused by the difference in potential between the mass of the camera and the mass of other devices, eg the recorder, and their cause is a large difference in the length of the cables connected to the cameras.

The separator can be connected on the side of the recorder or both on the side of the recorder and the camera.

TECHNICAL PARAMETERS:

• bandwidth: 200MHz
• impedance: 75Ω input / output socket / BNC plug
• damping:
• • 4.43 MHz @ 0.34 dB
  • 11 MHz @ 0.42 dB
  • 21 MHz @ 0.59 dB
  • 38 MHz @ 0.91 dB
  • 42 MHz @ 0.91 dB
  • 67.5 MHz @ 1.01 dB
• working temperature: -20 ° C ... + 55 ° C
• dimensions: 49x20x17mm
• weight: 34g
