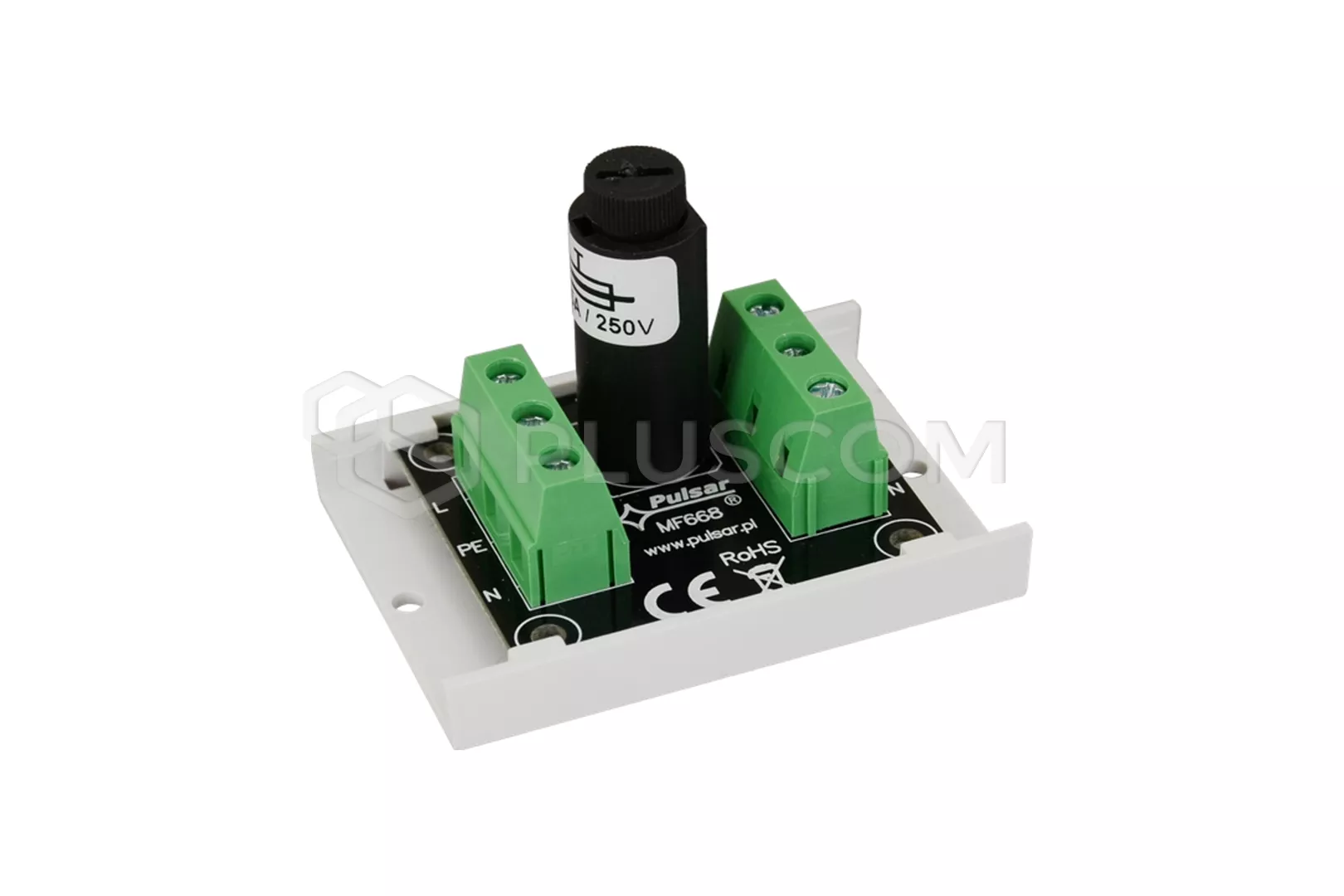

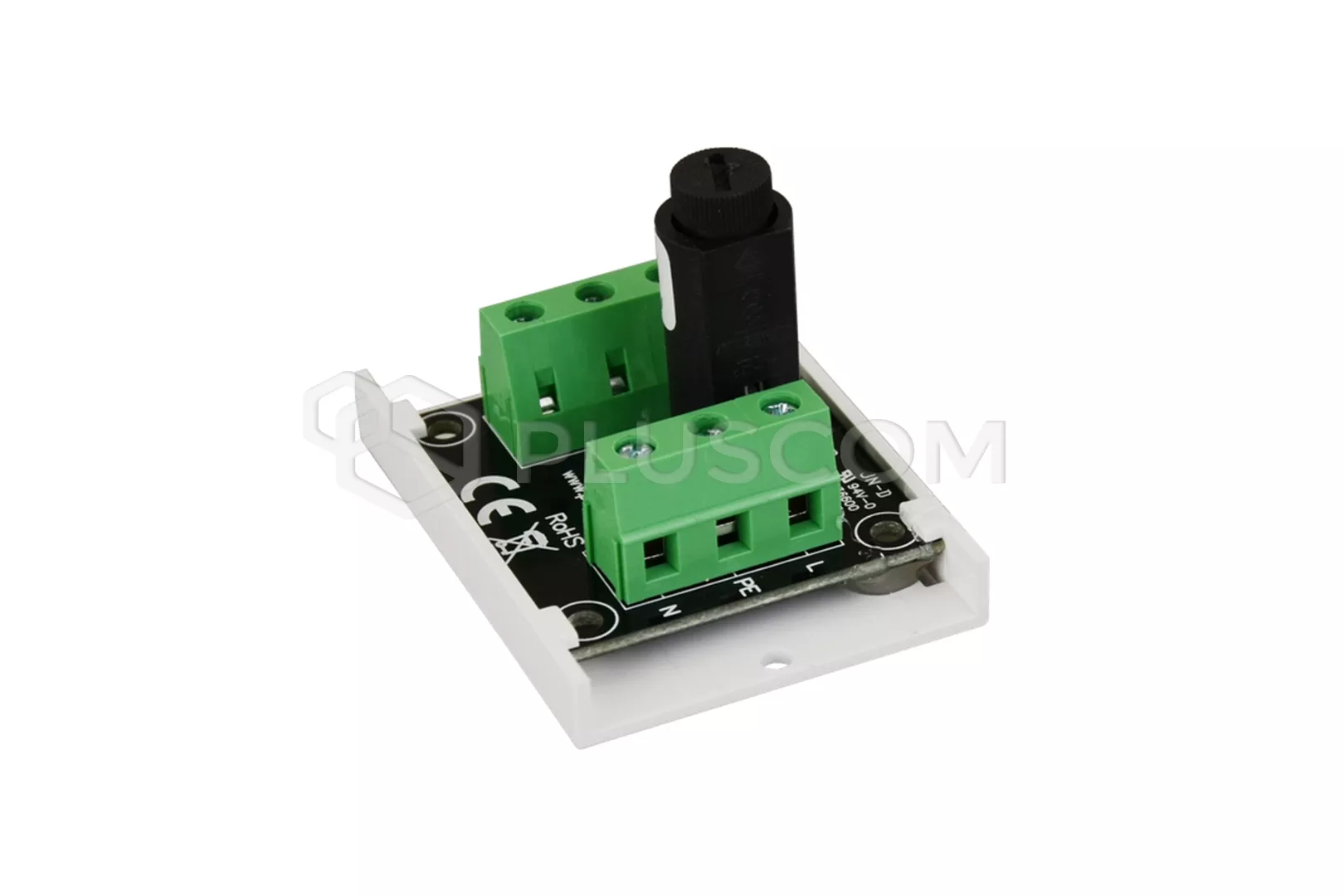

Fuse module Pulsar AWZ618 1xT 3,15A

6,58 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #11481
Manufacturer: Pulsar
  • Outputs: 1x 1,5mm2 max. cable
  • Input: 1x 1,5mm2 max. cable
  • Fuse: T 3,15A
  • Input voltage: 230V AC

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWZ618 - fuse module LB1P/1x3,15A/1,5/FTA/230V

The LB1P/1x3,15A/1,5/FTA/230V fuse module is designed to protect the power supply circuits requiring a voltage of 230V AC. It is fitted with the one input for power supply and one output is equipped with short circuit protection (SCP), melting fuse (T 3,15A). The module is adapted for connection of cables with a maximum cross section of 1,5mm2.
Fuse module Pulsar AWZ618 1xT 3,15A

Fuse module Pulsar AWZ618 1xT 3,15A

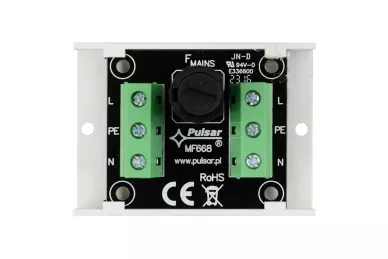

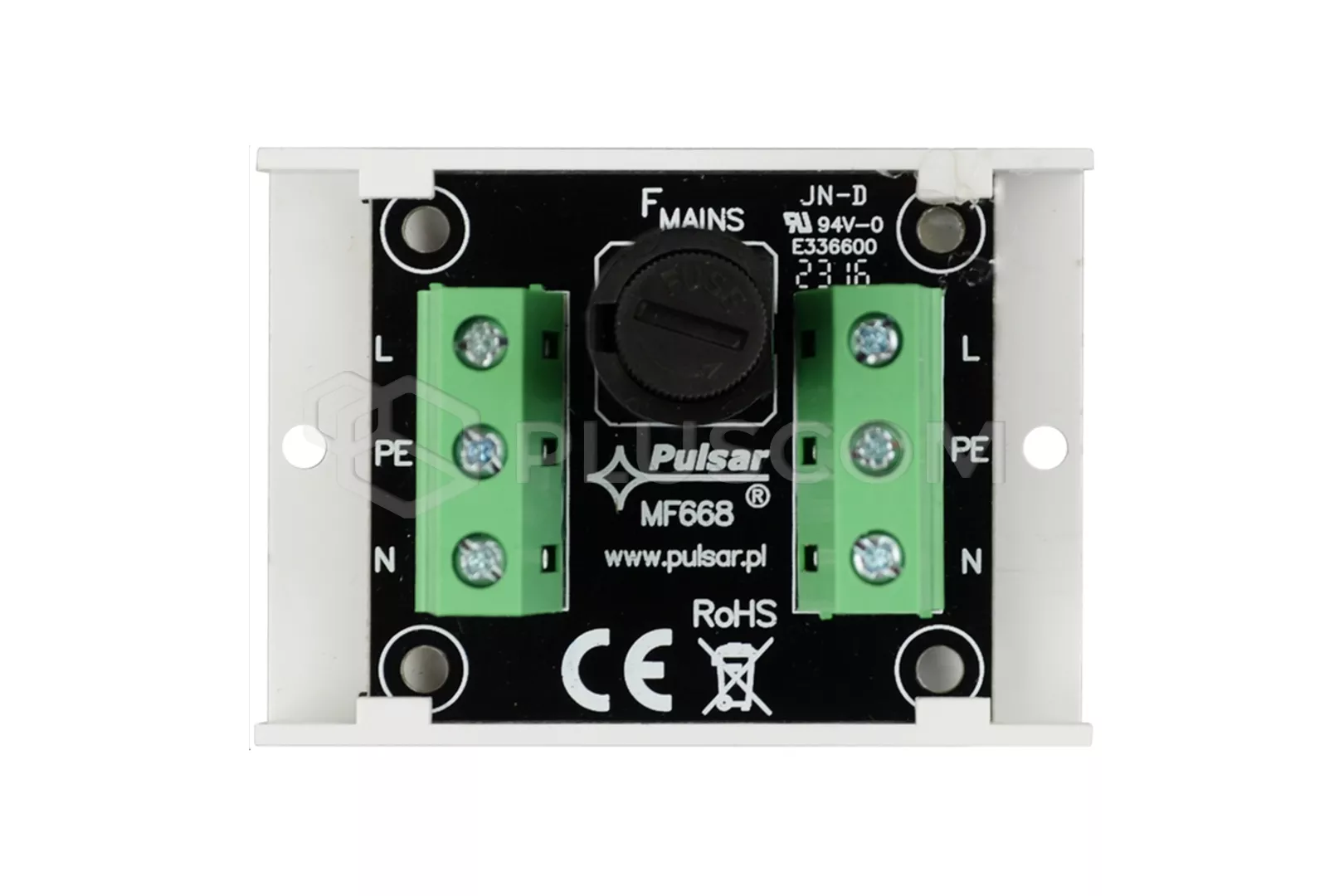

The module board is mounted on a plastic base plate, which can be mounted to a flat substrate by means of two screws ø3mm or integrated adhesive tape.

TECHNICAL PARAMETERS:
  • supply voltage range: 230V DC
  • output voltage: equal to supply voltage
  • power inputs: 1x screw connection 0,51÷1,63 (AWG 24-14) 0,2 ÷ 1,5mm2
  • number of outputs:  1x screw connection 0,51÷1,63 (AWG 24-14) 0,2 ÷ 1,5mm2
  • operating temperature: -10°C..50°C
  • size: 60x43x40mm
  • weight: 0.05kg

Fuse module Pulsar AWZ618 1xT 3,15A

Fuse module Pulsar AWZ618 1xT 3,15A

Fuse module Pulsar AWZ618 1xT 3,15A

Fuse module Pulsar AWZ618 1xT 3,15A
