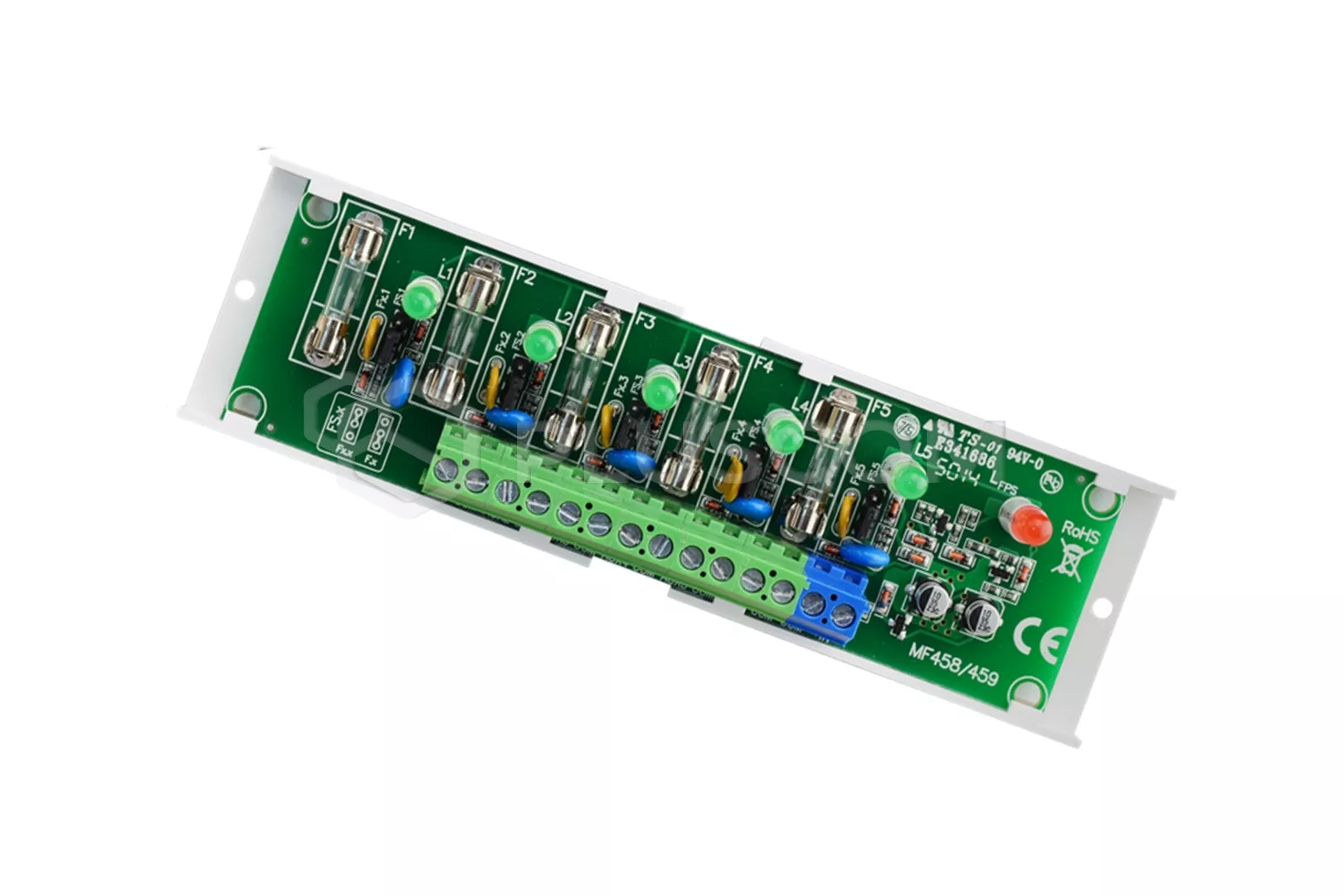

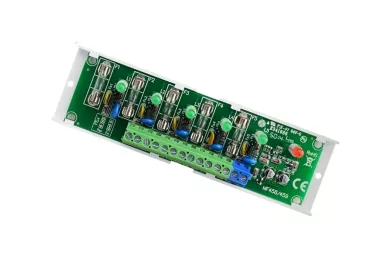

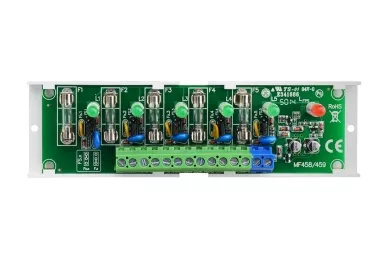

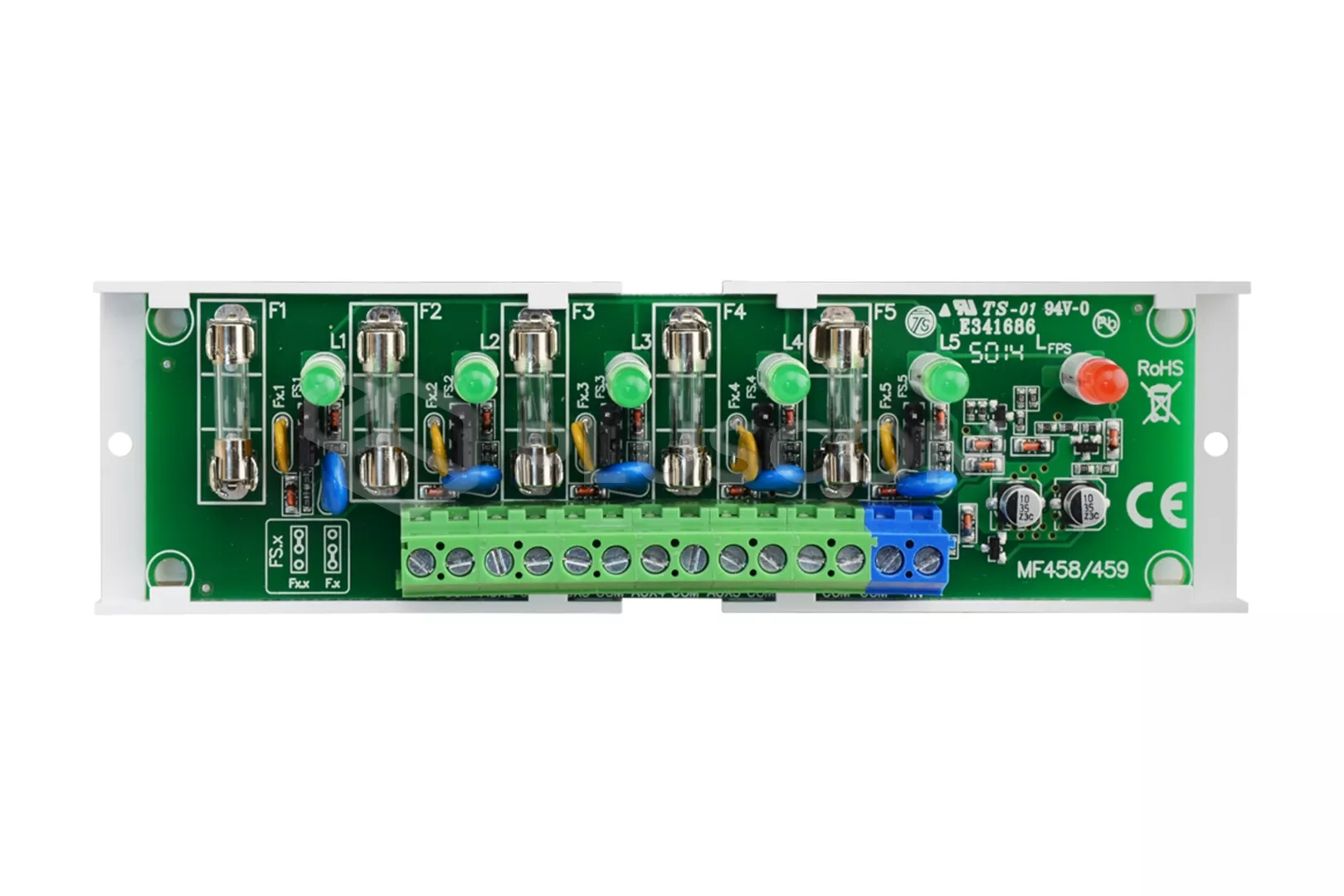

Fuse module Pulsar AWZ536 5x0.5A

Pulsar AWZ536 - fuse module, a power distribution module

The LB5/5x0.5A/2.5/AW fuse module is designed for power distribution in low-voltage systems requiring voltage of 10V÷30V DC or 10V÷24V AC (e.g. buffer power supply, transformer etc.). It is fitted with the IN input for power supply and 5 independently protected AUX1÷AUX5 power supply outputs. Each AUX output is equipped with short circuit protection (SCP): melting fuse F 0.5A or PTC 0.5A polymer fuse (the possibility of using 1A fuses, not supplied) as well as with overvoltage protection - varistors. Output state is indicated by 5 L1 ÷ L5 LEDs. Fuse failure is indicated by turning off the appropriate LED: L1 for AUX1, L2 for AUX2 etc. Additionally, in the case of failure, the FPS output (Hi-Z state) and the Lfps LED are switched on. The FPS output can be used for remote control of a module e.g. external optical indication. The module is adapted for connection of cables with a maximum cross section of 2.5mm2

Protections against:

• a short circut SCP
• an overload OLP
• a surge

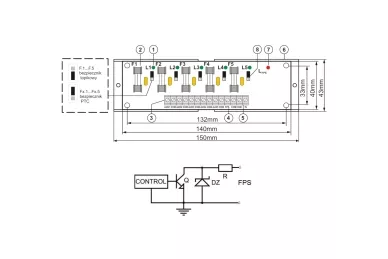

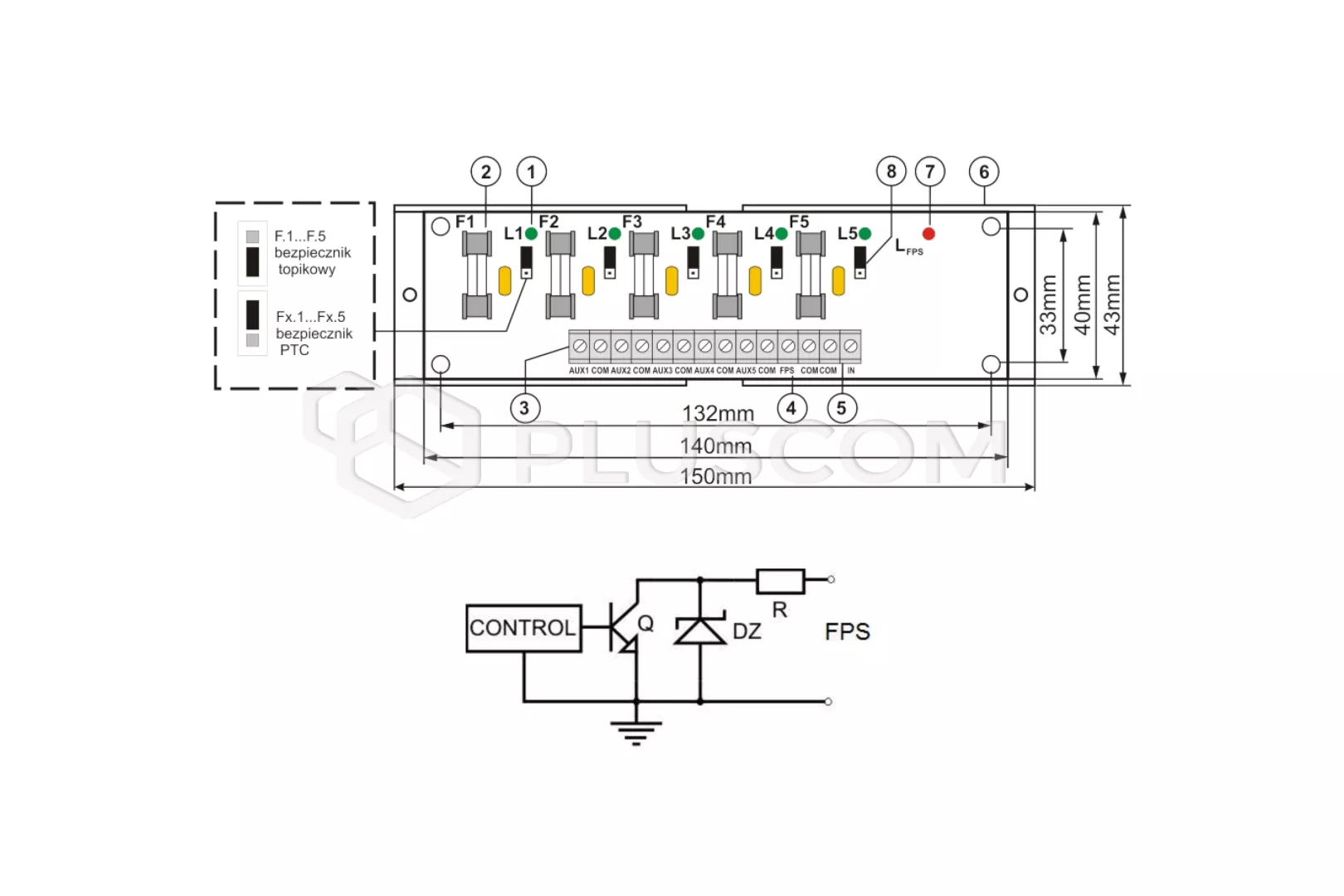

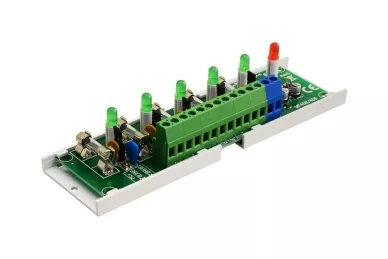

The module board is mounted on a plastic base plate, which can be mounted to a flat substrate by means of two screws ø3mm or integrated adhesive tape.

TECHNICAL PARAMETERS:

• supply voltage range: 10-30VDC / 10-24VAC
• output voltage: Uaux = Uin ( equal to supply voltage )
• power consumption:

  • 6mA-41mA 10-30V DC
  • 10mA-32mA 10-24V AC
• power inputs: 1 (IN terminals) – max. 2.5mm2 cable

• number of outputs: 5 (AUX terminals) – max. 2.5mm2 cable
• fuse: 5x F 0,5A fuse or PTC 0,5A (the possibility of using 1A fuses, not supplied)

• operating temperature: -10°C..50°C
• dimensions: 150x43x30mm
• weight: 0.12kg
