Fuse module Pulsar AWZ533 4x1.5A

22,42 EUR including 23.00% VAT
Product code: #10654
Manufacturer: Pulsar
  • Outputs: 4
  • Input: 4
  • Fuse: TOPIK 1.5A
  • Input voltage: 10-30VDC / 10-24VAC
  • Cable cross section: max. 1mm2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar AWZ533 - fuse module, a power distribution module

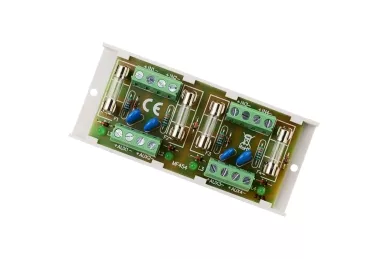

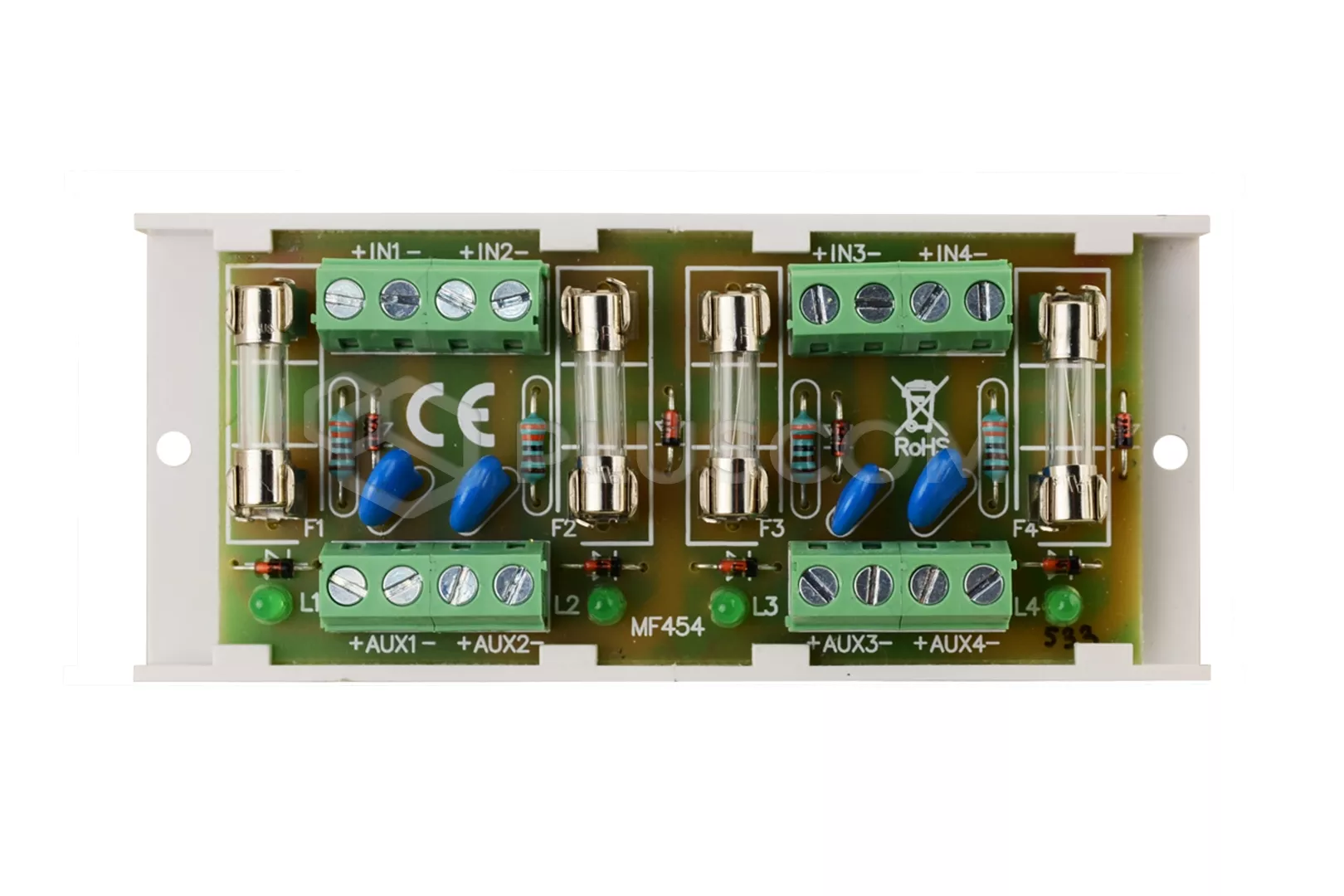

The LB4P/4x1.5A/FTA fuse module is designed for power distribution in low-voltage systems requiring voltage of 10V÷30V DC or 10V÷24V AC (e.g. buffer power supply, transformer etc.). It has 4 independent, galvanically isolated power supply circuits protected with 1,5A fuses. Fuse activation is indicated by switching off the appropriate LED: L1 for AUX1, L2 for AUX2 etc. Additionally, each output is protected with a varistor protecting the power supply and receivers against surges in the supply system. The module is adapted for connection of wires with a maximum cross-section of
1mm2.

Protections against:
  • a short circut SCP
  • an overload OLP
  • a surge
Fuse module Pulsar AWZ533 4x1.5A

Fuse module Pulsar AWZ533 4x1.5A

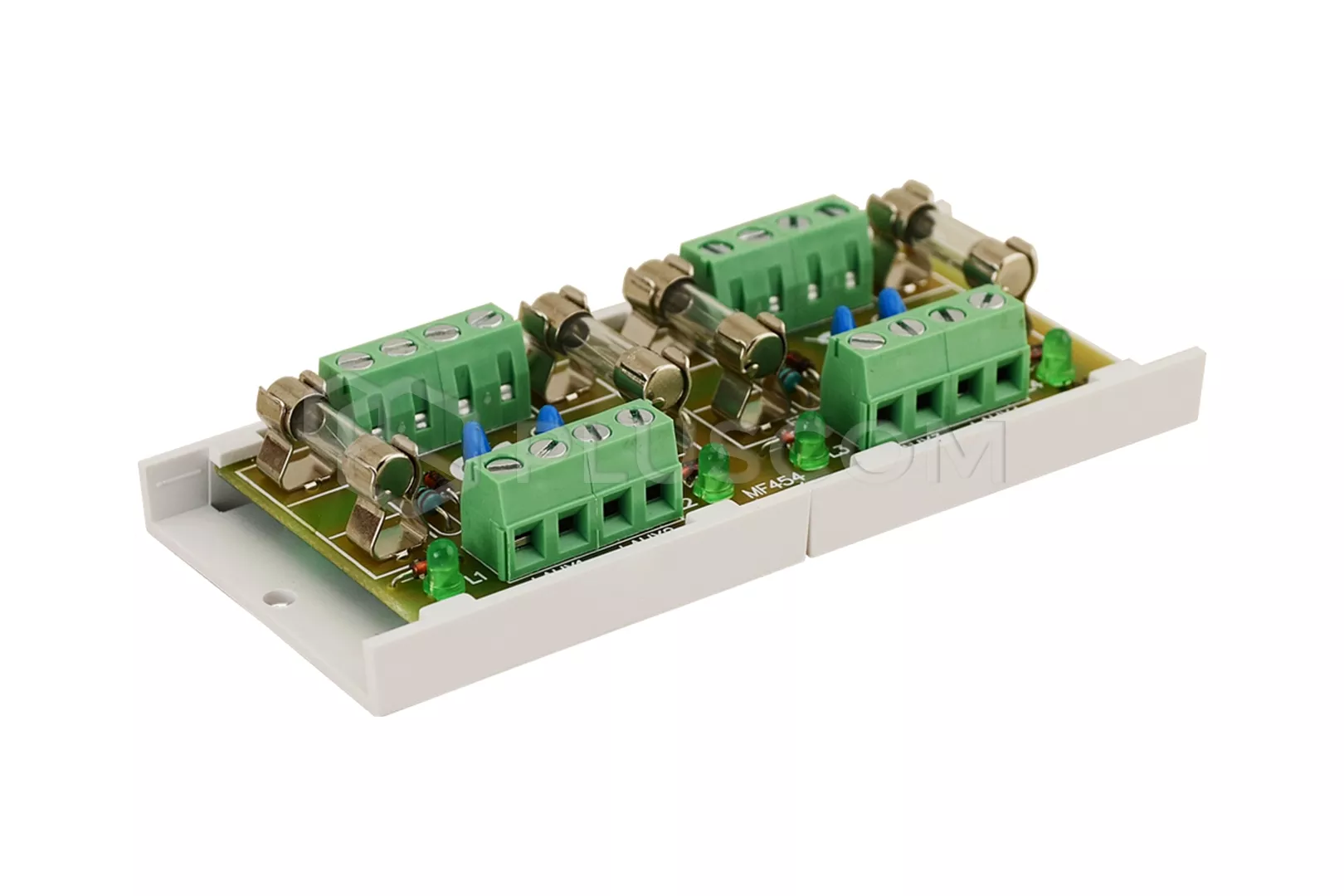

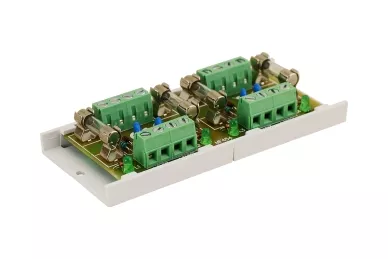

The module board is mounted on a plastic base plate, which can be mounted to a flat substrate by means of two screws ø3mm or integrated adhesive tape.

TECHNICAL PARAMETERS:
  • supply voltage range: 10-30VDC / 10-24VAC
  • output voltage: Uaux = Uin ( equal to supply voltage )
  • power consumption: 5mA - 30mA
  • power inputs: 4 (IN terminals) – max. 1mm2 cable
  • number of outputs: 4 (AUX terminals) – max. 1mm2 cable
  • 4x1,5A – TOPIK
  • operating temperature: -10°C..50°C
  • dimensions: 100x43x20mm
  • weight: 0.08kg

Fuse module Pulsar AWZ533 4x1.5A

Fuse module Pulsar AWZ533 4x1.5A


Download
Datasheet 0.17 MB
Declaration CE 0.32 MB
Instruction 0.24 MB
