Fuse module in housing PulsarAWZ594 5x1A PTC

10,90 EUR including 23.00% VAT
Product code: #10663
Manufacturer: Pulsar
  • Outputs: 5
  • Input: 2
  • Fuse: 5x1A - PTC
  • Input voltage: 10-30V DC
  • Additional power input - DC jack (5.5 / 2.1)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fuse module in housing Pulsar AWZ 592 8x PTC 1A

Pulsar AWZ594 - fuse module with enclosure LBC5/5x1A/PTC

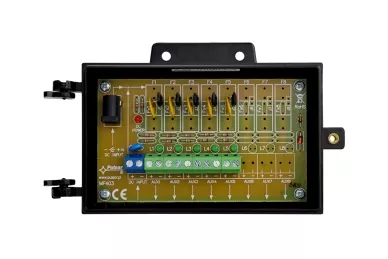

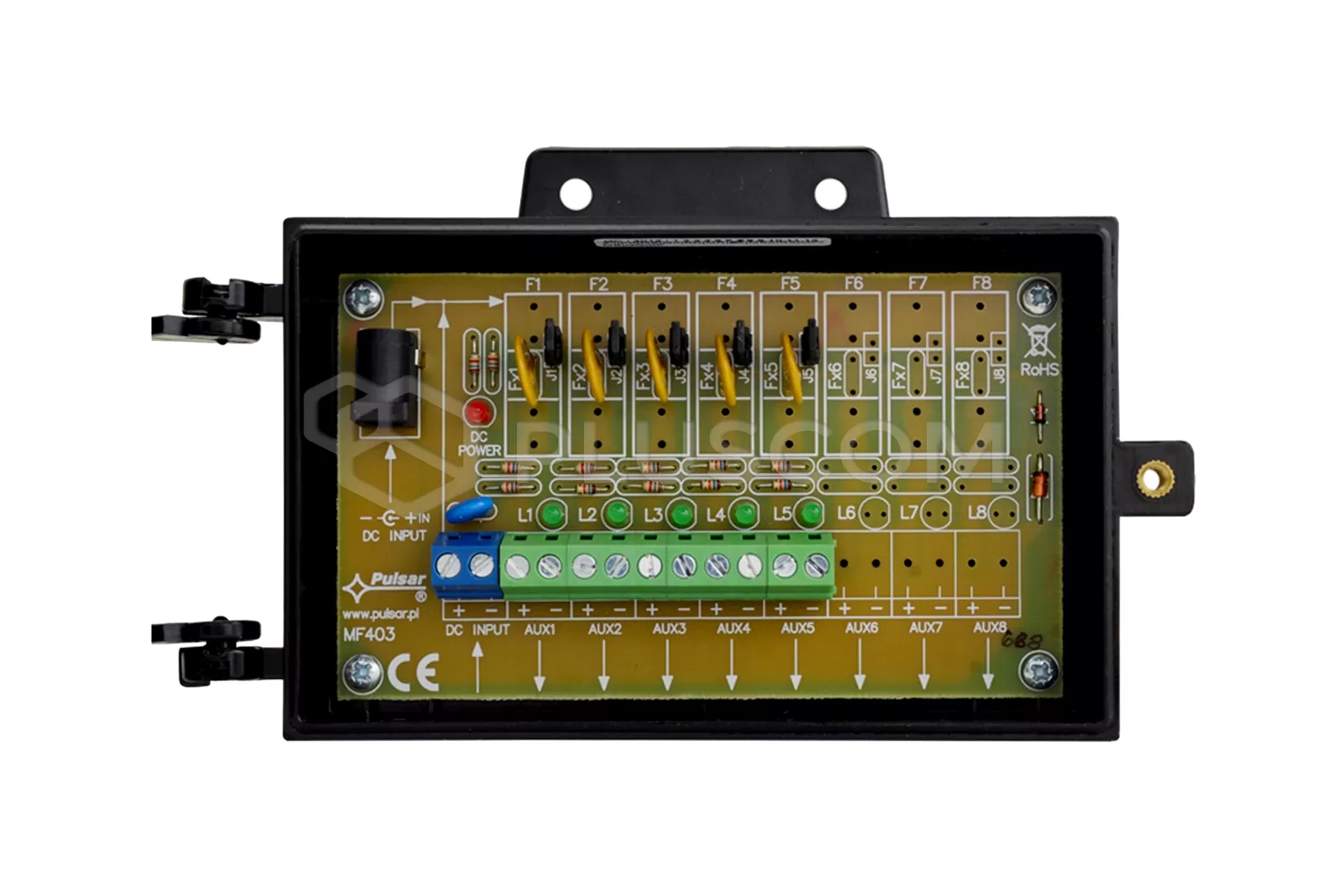

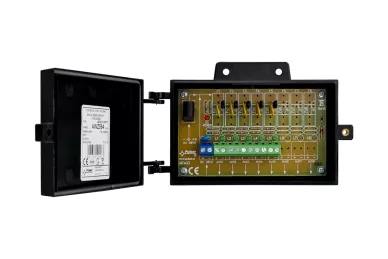

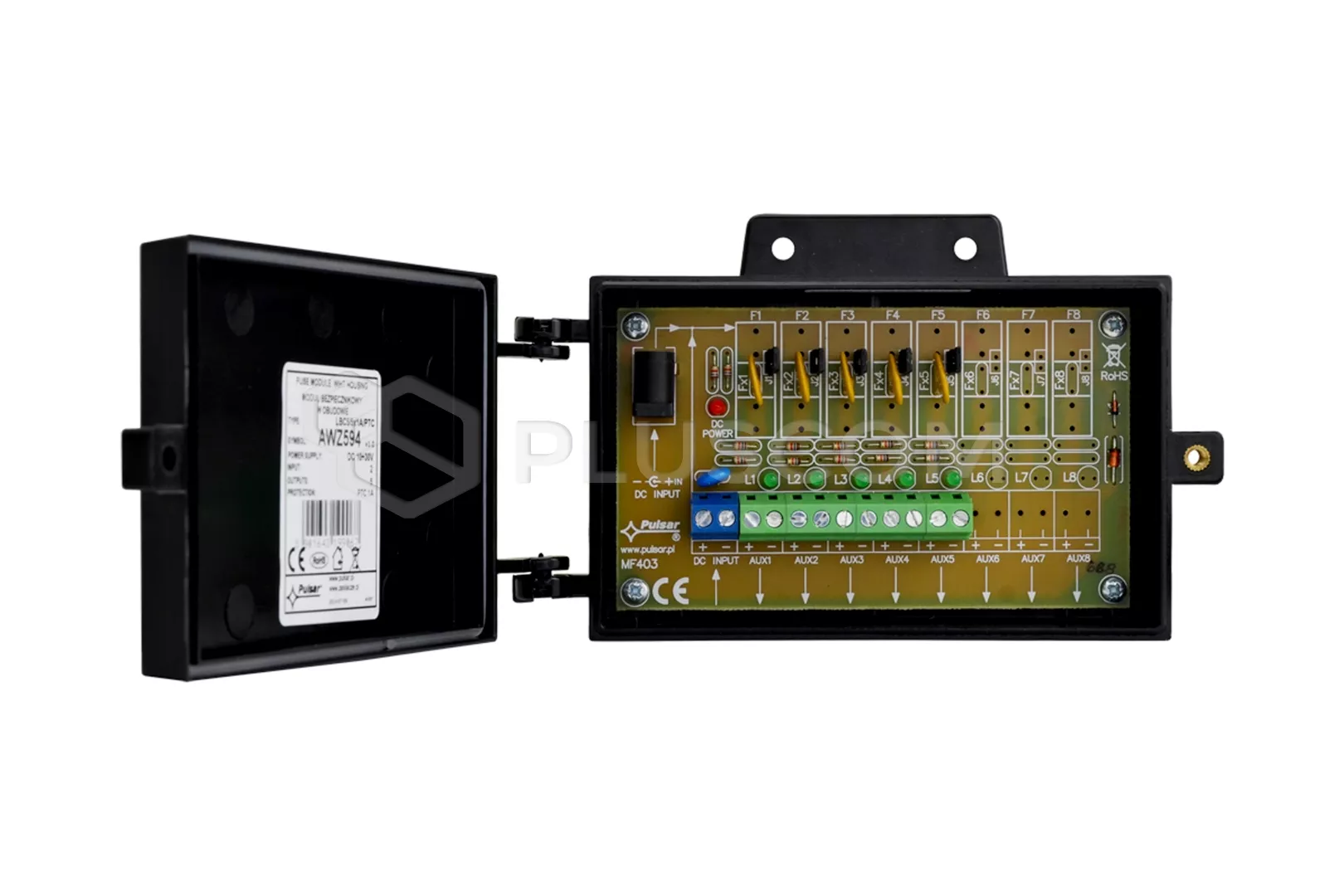

The LBC5 fuse module is designed for power distribution in CCTV systems requiring the voltage in the range 10V- 30V DC. It is equipped with two power inputs: screw connection and DC jack 5.5/2.1 and five AUX1 ÷ AUX5 power outputs independently protected with 1A polymer fuses. The module is equipped with J1÷J5 jumpers disconnecting the power supply at the AUX1 ÷ AUX5 outputs ("+" terminal) PTC fuse activation is indicated by switching off the corresponding LED of the module: L1 for AUX1, L2 for AUX2 etc. Additionally, the module's input is protected by a varistor, protecting the power supply against surges in the power supply system.
.
Protections against:
  • a short circut SCP
  • an overload OLP
  • a surge
Fuse module in housing PulsarAWZ594 5x1A PTC

Fuse module in housing PulsarAWZ594 5x1A PTC

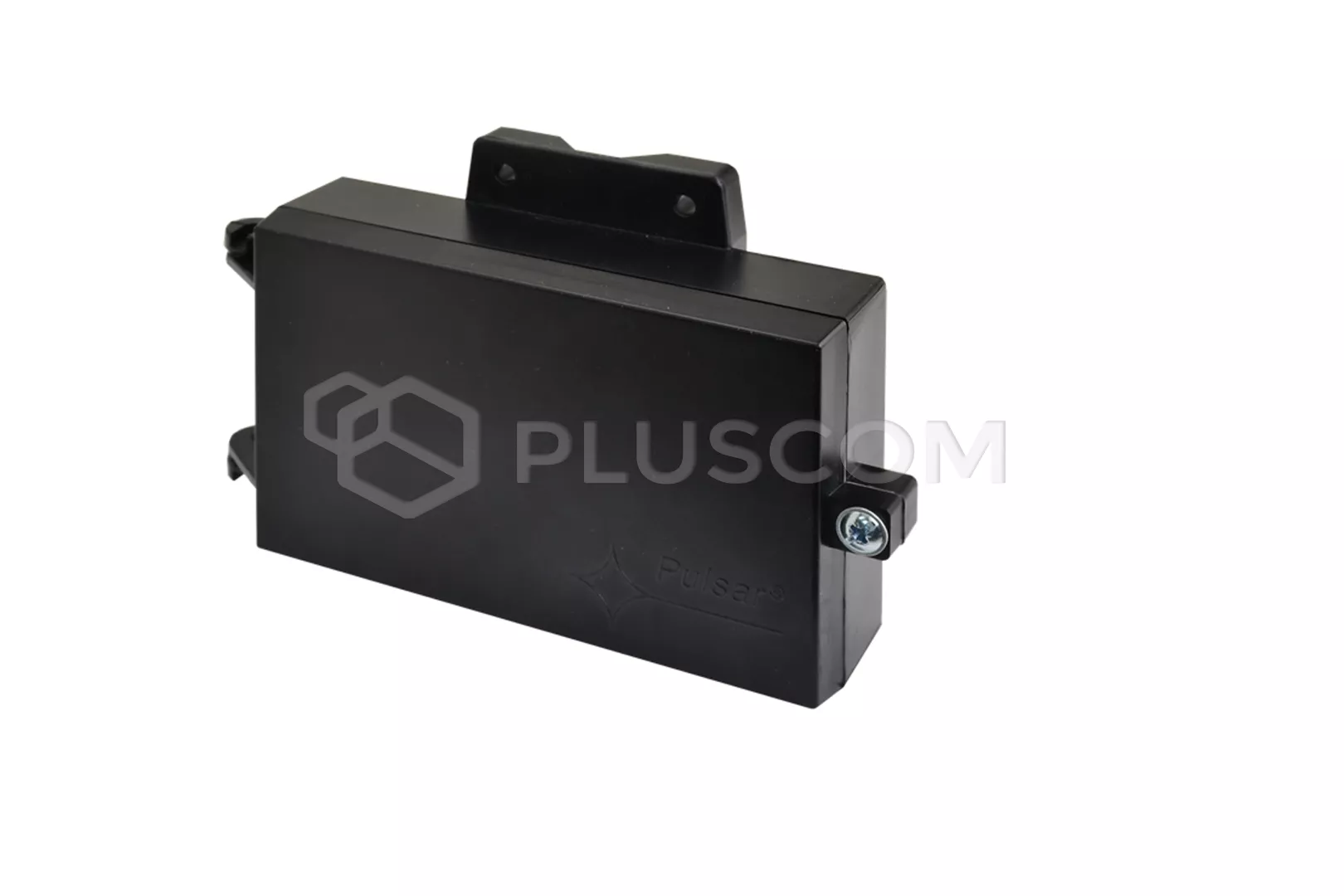

Mounting options: wall mounting – mounting screws x 2, mounting on a mast - hose clamp

TECHNICAL PARAMETERS:
  • voltage range: 10-30VDC
  • Mounting options: wall mounting – mounting screws x 2, mounting on a mast - hose clamp
  • power consumption: 5mA - 50mA
  • power inputs 2: DC jack 5,5/2,1 or screw connection
  • number of outputs: 5 (AUX terminals)
  • 5x1A – PTC
  • operating temperature: -10°C..40°C
  • dimensions: 150x94x42mm
  • weight: 0.23kg
