Fibaro Walli Controller FGWCEU-201-1-8

FIBARO Walli Controller intelligent surface-mounted controller FGWCEU-201-1-8, anthracite

The FIBARO Walli Controller is an intelligent controller powered from the attached one battery or direct current. It can be used as a double or single button and the switch driver Thanks to the controller, we will be able to control roller shutters, shutters and other devices operating using the protocol Z-Wave. At the same time, by controlling the load, it measures the energy consumed and active power. Additionally, it works as a Z-Wave signal amplifier.

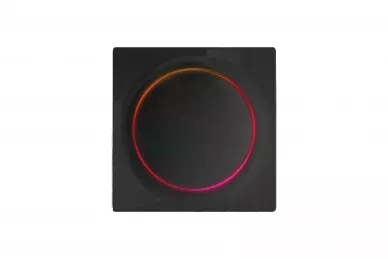

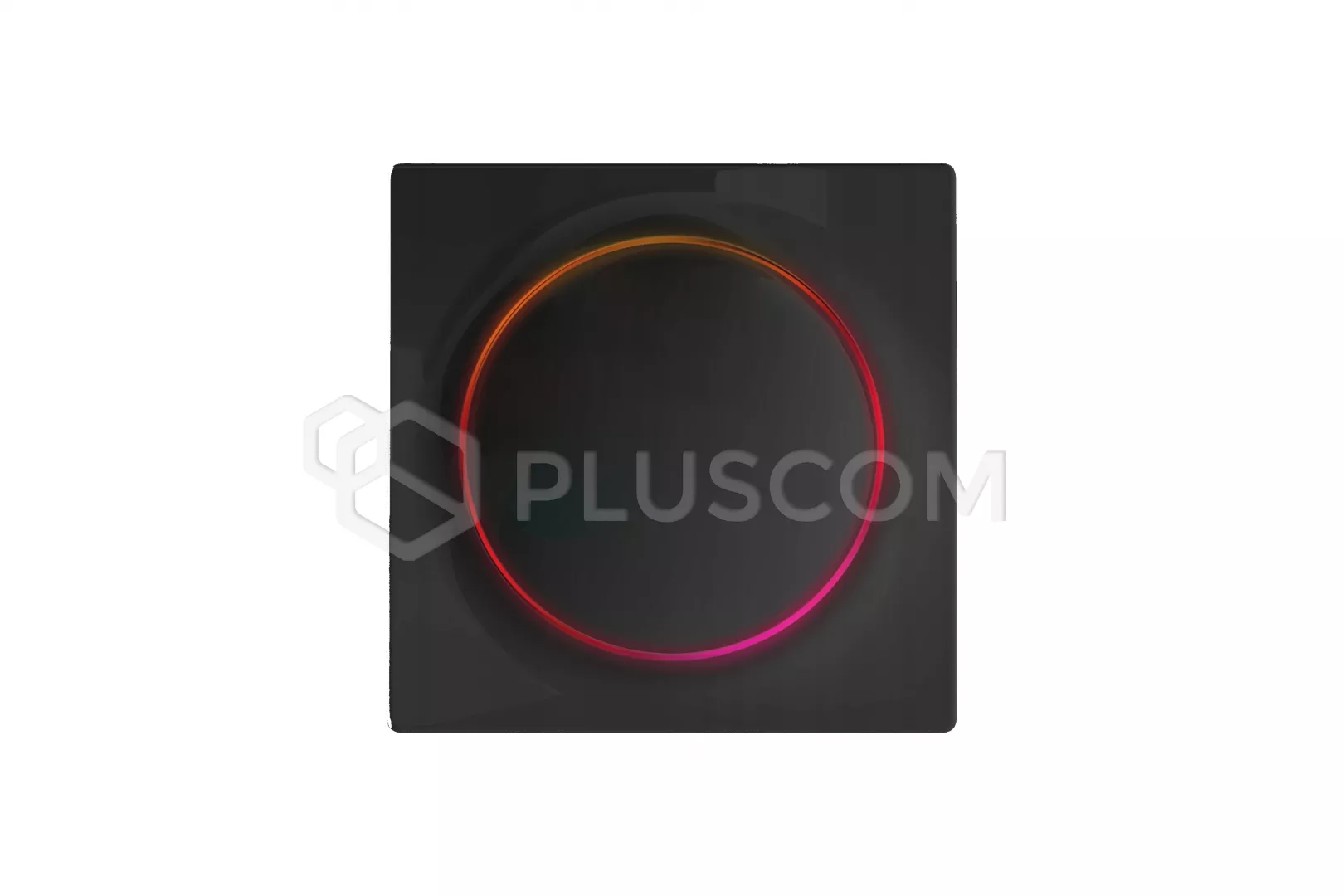

You can set your favorite LED ring color.

Walli Controller can be stuck wherever you want because it is completely mobile and has many advantages:

• pre-set configurations allow you to easily customize your work to specific type of controlled devices
• can be used to control many types of devices, incl. switches, dimmers, blinds
• battery or VDC
• has a built-in temperature sensor
• supports Z-Wave network security modes: S0 with AES-128 and S2 authenticated with PRNG-based encryption
• works as a Z-Wave signal amplifier

TECHNICAL PARAMETERS:

• power supply: Battery and/or power supply unit
• battery type: ER14250 ½AA 3.6V (included)
• supply unit type: 5–24V DC SELV power supply, LPS or NEC class 2 (not included)
• battery life: est. 2 years (with default settings and max. 10 pushes per day)
• operating temperature: 0–40°C
• ambient humidity: 0–90% RH without condensation
• temperature measurement accuracy: ±0.5°C
• radio protocol: Z-Wave (700 series chip)
• radio frequency band: 868.0–868.6MHz; 869.7–870.0MHz
• max. transmitting power: +13dBm
• range:
• • up to 50m outdoors
  • up to 40m indoors (depending on terrain and building structure)
• dimensions: 86 x 86 x 20 mm

Product code: FGWCEU-201-1-8
