Fibaro Set for intelligent control of SHUTTERS

540,52 EUR including 23.00% VAT
Product code: #25535
Manufacturer: Fibaro
  • set: KeyFob + 3 x Roller Shutter 3 + control panel
  • accurate positioning of blinds
  • active power measurement function
  • internet management
  • time settings
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

FIBARO Set for intelligent control of SHUTTERS

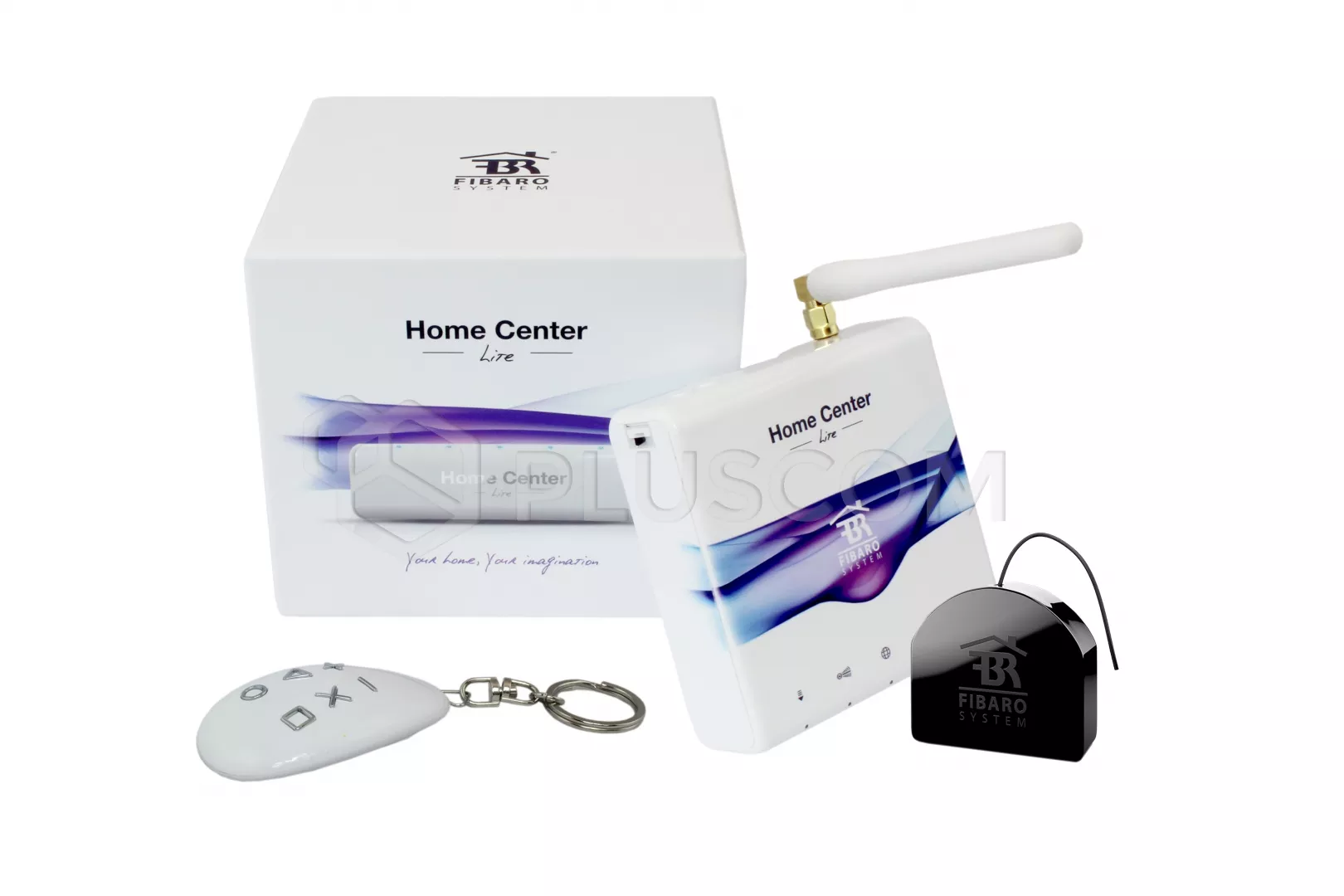

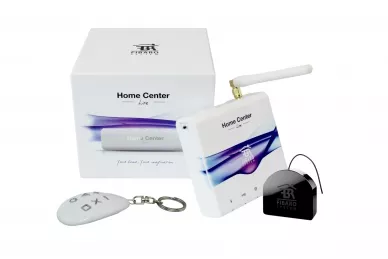

The kit consists of:

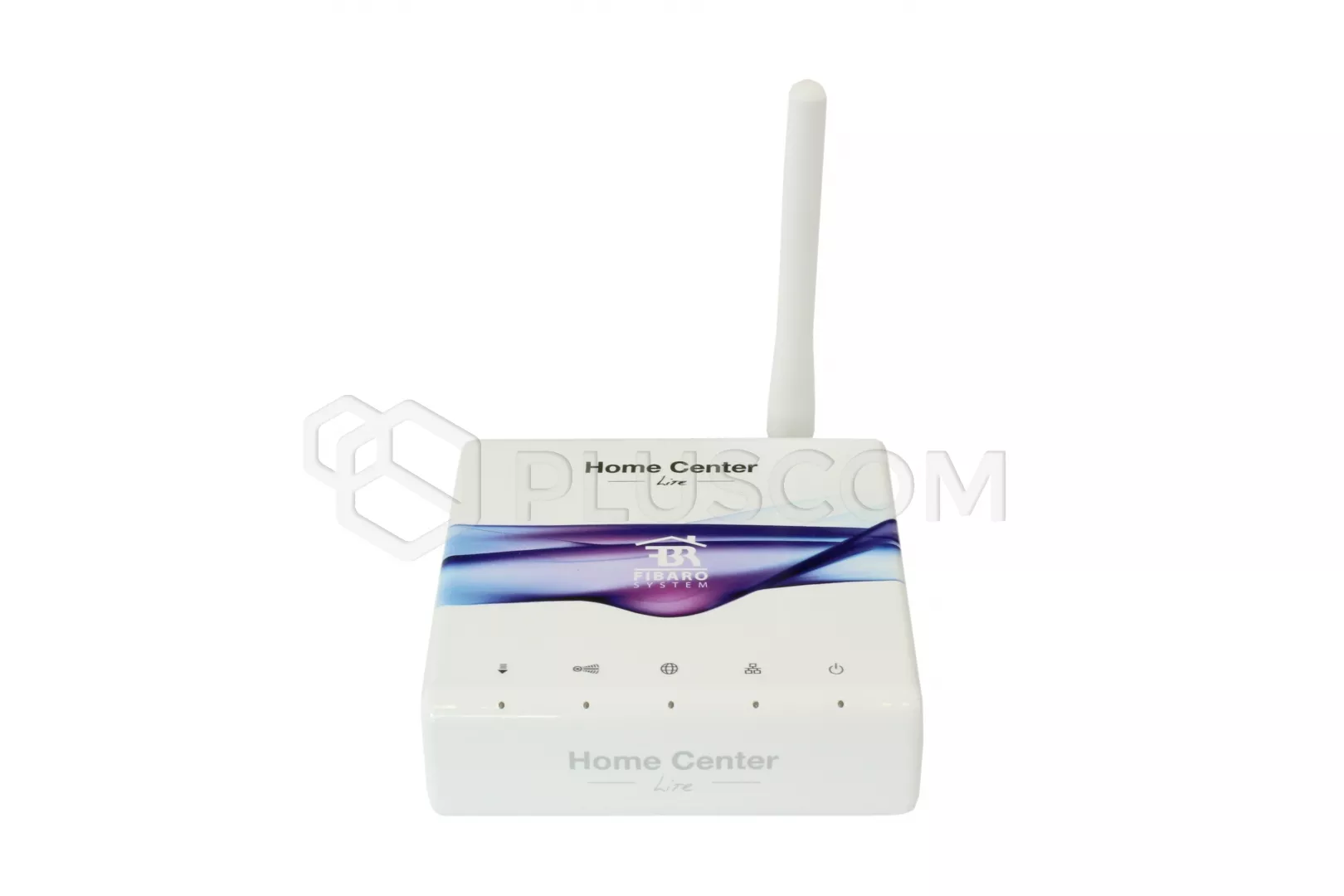

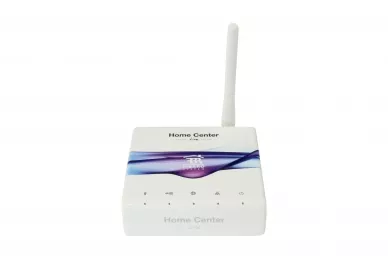

  • Home Center Lite FGHCL headquarters
  • 3 x Roller Shutter 3 FGS-223 ZW5
  • KeyFob FGKF-601 remote control
The whole is a perfect set for automatic lighting control.

The heart of the set is the FIBARO Home Center Lite Central Unit, which communicates with sensors and other devices using a wireless protocol Z-Ware communication, thus building an intelligent home automation system.
Thanks to the connection to the Internet, you can manage it practically from anywhere on earth.
It has a friendly interface is designed for convenient using the administration computer and any mobile device.

Thanks to the control panel, we gain high efficiency with low power consumption and professional backup and restore system.
FIBARO Set for intelligent control of SHUTTERS

FIBARO Set for intelligent control of SHUTTERS

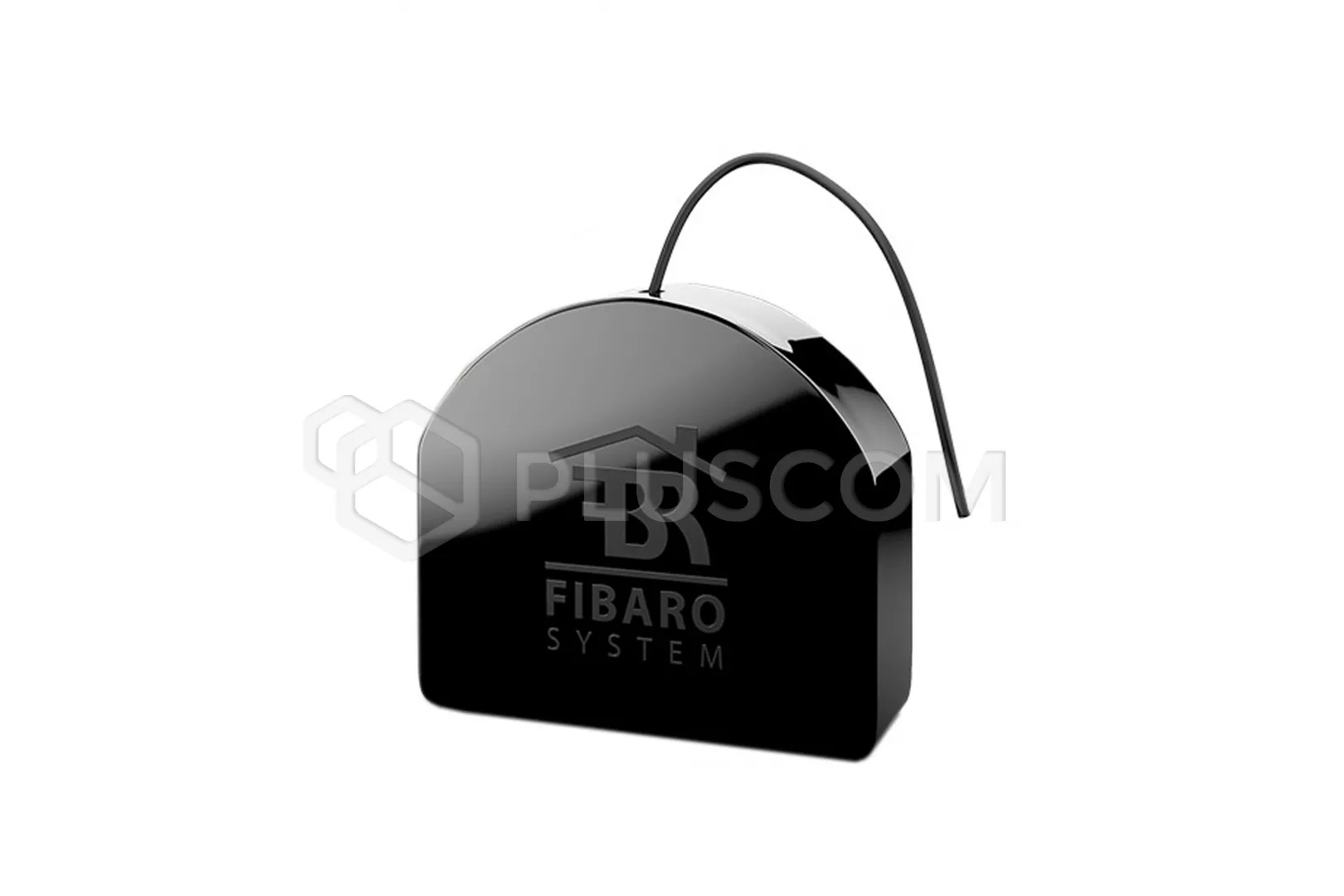

FIBARO Roller Shutter 3 FGR-223 ZW5
Roller Shutter 3 module allows you to control the external roet and interior, curtains, windows or garage door. It is protocol based Z-Wave 5, which brings, among other things, faster, more reliable transmission data between devices over a greater distance. The device allows precise positioning of roller shutters, precise control of the shutter slats and measurement of active power and energy consumption by the drive.

TECHNICAL PARAMETERS:

  • supply voltage: 100-240V AC
  • rated current:
    • 4.2A for resistive load
    • 1.7A for motors with power compensation (inductive load)
  • single-phase AC motor drives supported
  • cooperation with electronic or mechanical limit switches
  • power consumption: max 0.8W
  • dimensions: 42.5x38.25x20.3mm (designed for mounting in ø & gt; = 50mm deep & gt; = 60mm
  • working temperature: 0-35 ° C
  • Z-Wave radio protocol (500 series chip)
  • frequency: 868MHz
  • range:
    • up to 50m outdoors
    • up to 40m indoors

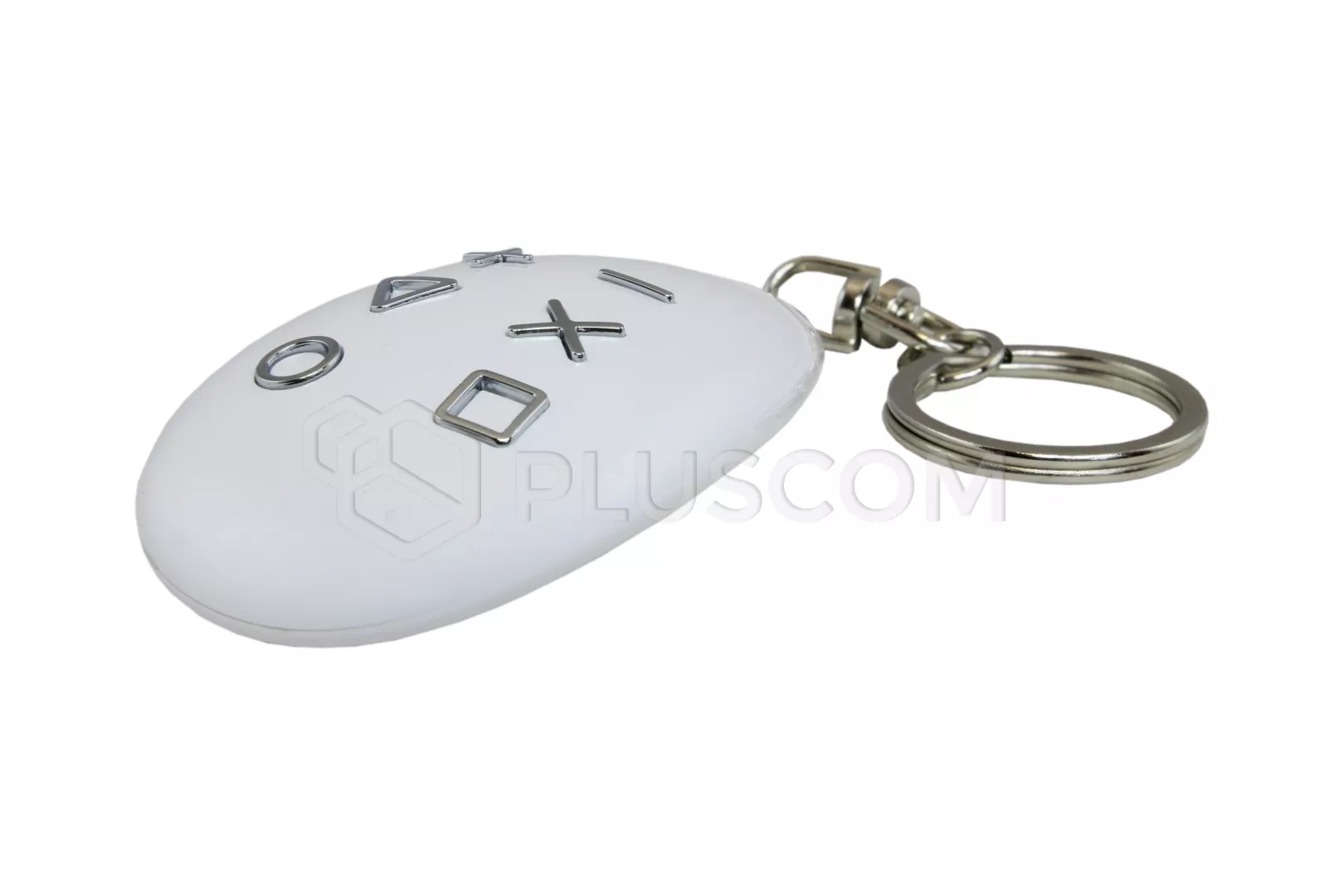

FIBARO KeyFob FGKF-601
The KeyFob has an ergonomic and compact shape that makes the remote control fit perfectly in hand. Clearly defined edges of buttons with different patterns allow you to operate without having to look at it.

6 BUTTONS, MANY POSSIBILITIES
Although there are only 6 buttons on the remote control, the remote control can execute up to 30 functions. Each button corresponds to 1, 2 or 3 clicks and holding. You can program up to 6 sequences consisting of combinations of 2 to 5 buttons. Actions are confirmed by the built-in the LED.

PARAMETERS:
  • frequency: 868MHz
  • compatible with any Z-Wave, Z-Wave + controller
  • range: up to 50m outdoors (up to 40m indoors)
  • power supply: CR2450 battery
  • working temperature: 10 ° C ... 40 ° C
  • dimensions: 70x38x15mm
Download
