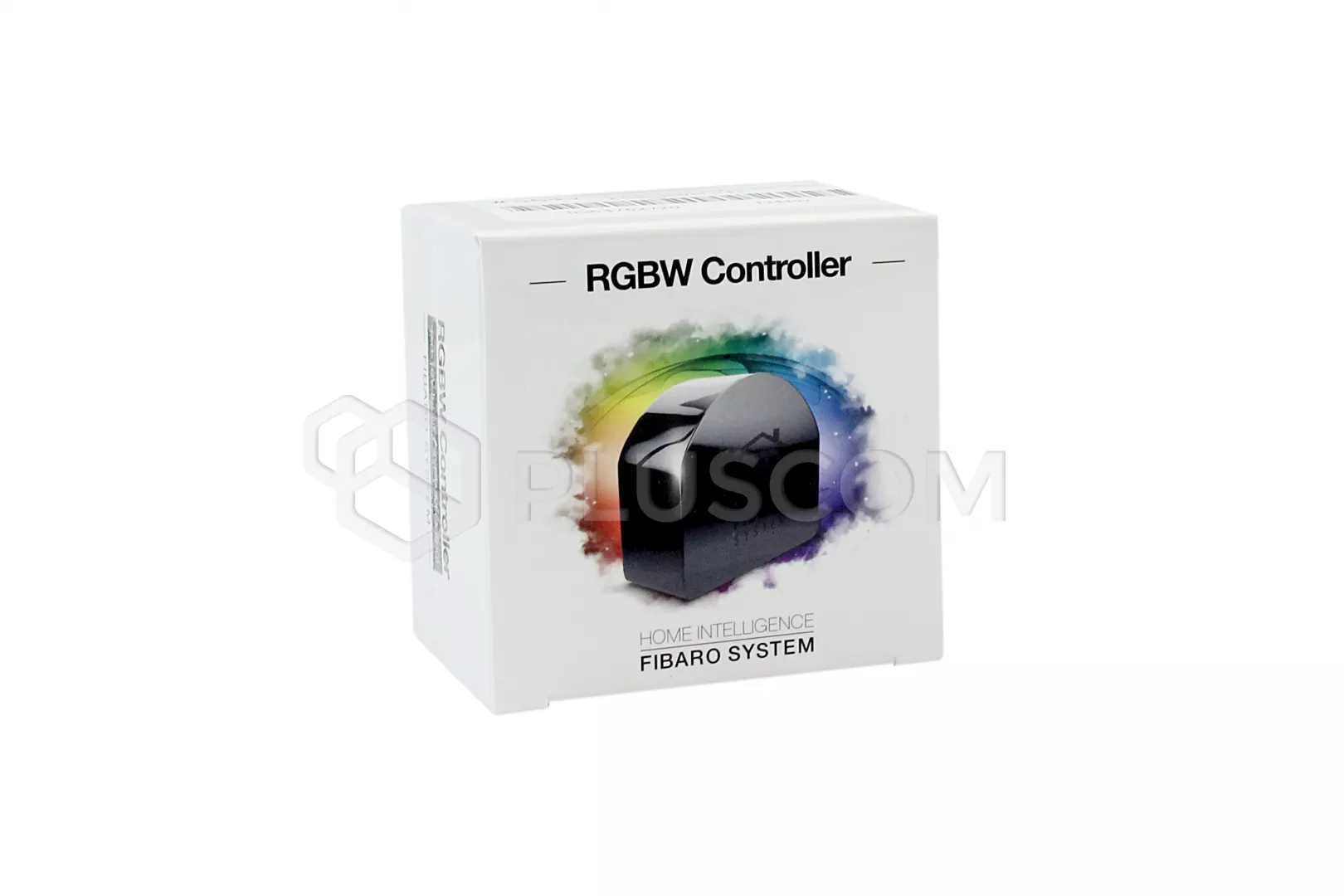

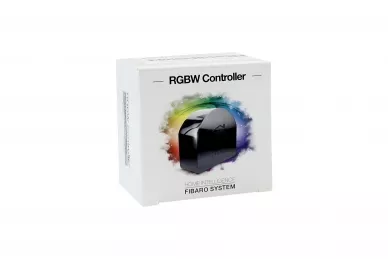

FIBARO RGBW Controller FGRGBWM-441 is a universal, Z-Wave compatible RGB / RGBW
controller. FIBARO RGBW Controller uses PWM output signal, which
enables it to control LED, RGB, RGBW strips, halogen lights and fans.
Controlled devices may be powered by 12 or 24 VDC. May be used as a
dimmer with
Halogen lamps.
In addition the device supports up to four, 0V - 10V analog sensors,
such as temperature sensors, humidity sensors, wind sensors, air quality
sensors, light sensors etc. All IN and OUT terminals may be user configured for
LED control or 0V-10V signal readouts.
Product Highlights:
• Current and historical power consumption measuring
• Controlled through other Fibaro devices or any Z-Wave controller,
• Microprocessor controlled,
• Most advanced device of this type in the World.
Technical Data:
• Power source: 12V DC / 24V DC,
• Rated output power: combined 12A (sum of all connected outputs),
• Max load (e.g. Halogen lamps)
at 12V - 144W combined,
at 24V - 288W combined.
• Power consumption: < 0,3W
NOTES FOR THE DIAGRAMS:
12/24VDC - power supply signal
GND - power supply ground signal
IN1 - potential free / 0-10V input 1
IN2 - potential free / 0-10V input 2
IN3 - potential free / 0-10V input 3
IN4 - potential free / 0-10V input 4
R - output assigned to IN1
G - output assigned to IN2
B - output assigned to IN3
W - output assigned to IN4
Fibaro product code: FGRGBWM-441
