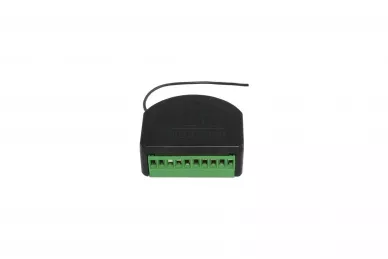

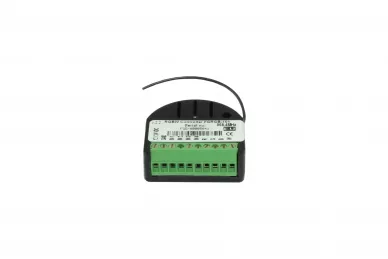

Fibaro RGBW Controller 2 FGRGBWM-442

FIBARO RGBW Controller 2 FGRGBWM-442

FIBARO gives you the option of choosing a light color from the RGB LED color palette. Choice the color of the light and its intensity can change at any time You want. You can also compose your own color palette, just set the colors you like in the right order.

RGBW controller - input

Thanks to the additional input in the RGBW light control module, you can control light when triggering a pulse on the analog input. E.g. with the appropriate one temperature or other signal caused by a sensor connected to controller.

The module works with Z-Wave or Z-Wave Plus controllers, we can also use it to strengthen the Z-Wave signal. RGBW can work as a light dimmer. The output channel voltage is 12 - 24V DC for LED lighting.

Monitoring of energy consumption

The RGBW controller always monitors the power consumption of the connected to it LED lighting. Controls lighting thanks to pulse width modulation (PWM)

FIBARO RGBW Controller 2 FGRGBW-442 ZW5

FIBARO RGBW Controller 2 FGRGBW-442 ZW5

• Power supply: 12/24V DC
• Rated load current:
• • 6A for channel
  • 12A total for all outputs
• Power output:
• • 144W combined for 12V
  • 288W combined for 24V
• Inputs: 4 inputs, 0-10V (configurable pull-up) or binary
• Outputs: 4 outputs, PWM
• PWM frequency: 244Hz
• Radio frequency:
• • 868.4 / 869.85 MHz EU
  • 908.4 / 916 MHz US
  • 919.8 / 921.4 MHz ANZ
  • 869.0 MHz RU
• Radio protocol: Z-Wave (500 series chip)
• Maximum length of wires: 2m
• Range:
• • up to 50m (164 ft) outdoors
  • up to 40m (131 ft) indoos (depending on terrain and building structure)
• Operating temperature: 0–40°C
• Dimensions: 42.35 x 36.90 x 17.5 mm
