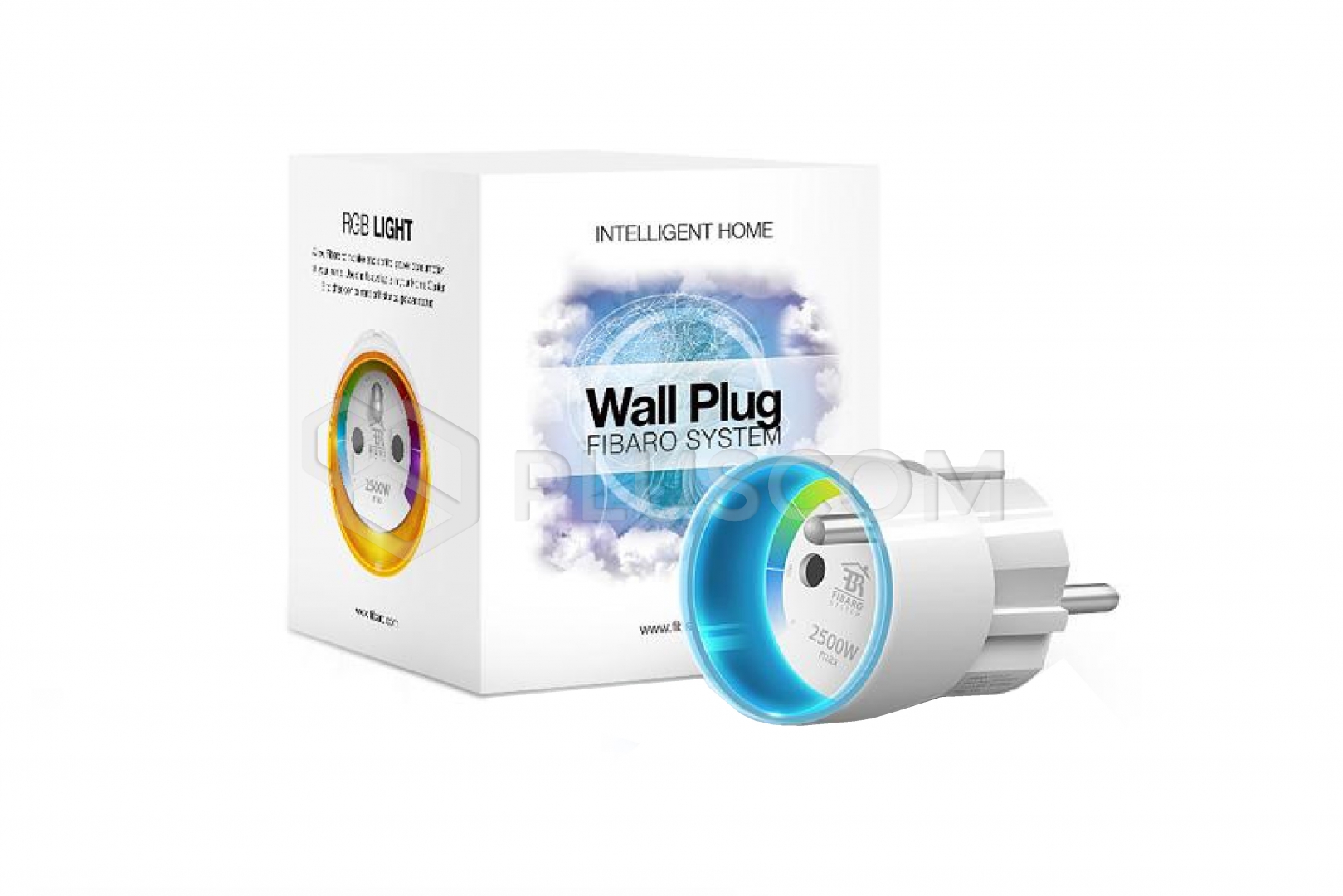

Fibaro FGWPF-101 (Schuko) Wall Plug

Fibaro FGWPF-101 (Schuko) Wall Plug

The FIBARO Wall Plug is a universal relay switch in the form of a power outlet adapter, compatible with the Z-Wave standard.
It allows you to control any device with a power output of up to 2.5kW, as well as measure energy and active power.

The device has a built-in LED ring that indicates its operating status and the current power consumption.

The Wall Plug can be controlled using the button on the housing or via any Z-Wave-compatible controller.

Key Product Features:

• Power and Energy Consumption Measurement
• Real-time visualization of current power consumption using a crystalline, color-changing LED ring
• Controlled by other Fibaro system devices or any Z-Wave controller
• Microprocessor Control
• The smallest device of its kind in the world

Technical Specifications:

• Power Supply Voltage: 110 - 230 V AC ±10% 50/60 Hz
• Rated Load Current for AC Output:
  • 11A / 230V 50/60 Hz - continuous load
  • 13A / 230V/ 50/60 Hz - continuous load momentary
• Power consumption up to 0.8W
• Output circuit power (for resistive load):
  • 2.5 kW at continuous load
  • 3 kW at momentary load
• Complies with EN 55015 (interference), EN 60669-2-1 (safety) standards
• Temperature limit 105°C
• Operating temperature 0°C – 40°C
• For installation in type E sockets:
  Compatible with any electrical device equipped with a European-type plug connector:
  • in the narrow version (CEE 7/16 - max. current 2.5A)
  • in the wide version (CEE 7/17 - current max 16A)
  • Dual plugs (type E/F) (with a pin hole and side plates for type F plugs)
• Z-Wave radio protocol
• Radio frequency 868 MHz
• Range up to 30 m in buildings (depending on building materials, building layout and construction, and terrain), up to 50 m outdoors
• Dimensions (diameter x height): 43 x 65 mm
