Fibaro FGS-221 Relay Switch 2x1,5kW

Product code: #43562
Manufacturer: Fibaro
  • Power supply: 230 V
  • Range: up to 50m in open areas, up to 30m in buildings
  • Radio protocol: Z-Wave
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

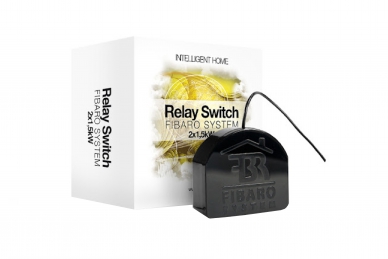

Fibaro FGS-221 Relay Switch 2x1,5kW


The FIBARO system's remote-controlled double relay switch is designed to operate in a wall switch box or wherever there is a need to control any two receivers with a power rating of no more than 1.5kW each. It can be used to turn devices connected to its terminals on and off via radio waves, controllers, and a push-button connected directly to the Fibaro switch.

Key product features:

  • Control via FIBARO system devices or any Z-Wave controller
  • Microprocessor control
  • Actuator elements: relays
  • The device works with monostable and bistable buttons
  • Our device is the smallest of its kind in the world

Technical specifications:

  • Power supply voltage: 110 - 230 V ±10% 50/60Hz, 24-60V DC ±10%
  • Maximum load current for a single AC output: 8A / 230V 50/60Hz
  • Maximum load current for a single DC output: 8A / 30V
  • Radio signal power: 1mW
  • Output circuit power (for resistive load): 2 x 1.5 kW
  • Compliance with EU standards: LVD 2006/95/E, EMC 2004/108/EC, R TTE 199/5/EC
  • Temperature limit: 105°C
  • For mounting in junction boxes: Ø ≥ 50mm
  • Operating temperature: 0 - 40°C
  • Radio protocol: Z-Wave
  • Radio frequency: 868.4 MHz EU; 908.4 MHz US; 921.4 MHz ANZ; 869.2 MHz RU
  • Range: up to 50 m in open areas, up to 30 m in buildings (depending on building materials)
  • Dimensions (length x width x height): 42 mm x 37 mm x 17 mm
  • Power consumption: less than 0.8 W
