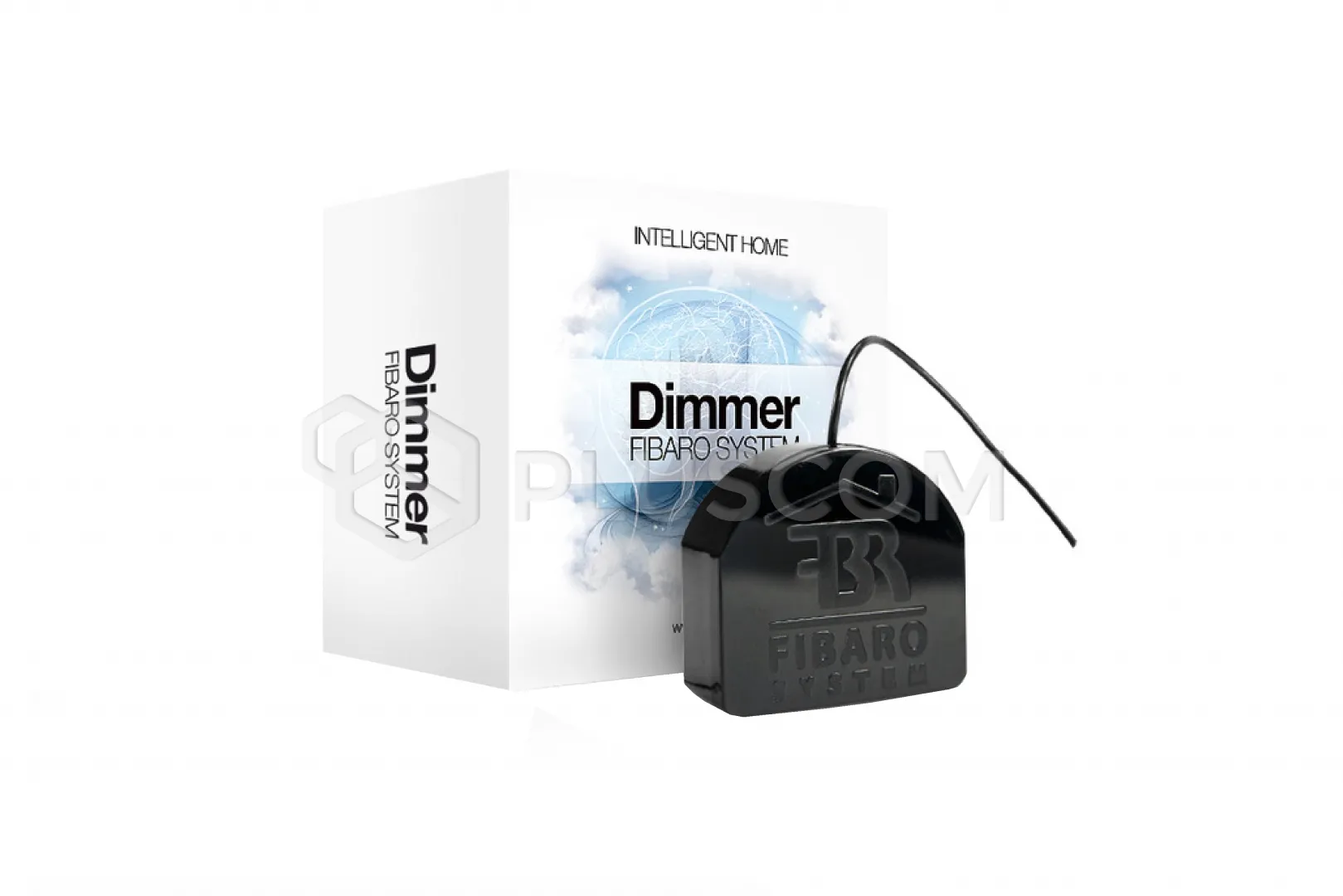

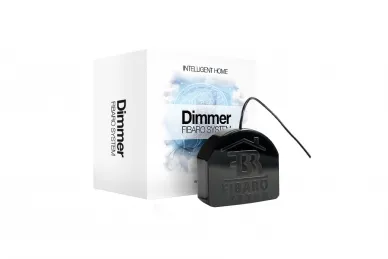

Fibaro FGD-211 500W Dimmer

Fibaro FGD-211 500W Dimmer

The FIBARO remote-controlled dimmer is designed to control any type of lighting.

It can be used in installations with or without a neutral wire. Using the dimmer, you can turn on and dim lamps via radio waves, controllers, and a button connected directly to the dimmer.

The dimmer automatically recognizes the connected load, is protected against overload and short circuit, operates silently, and has a "soft" start function that allows for gentle brightening of the connected load (in the case of fluorescent lamps and other specific lamps, e.g., with a starter or some older transformers, only on/off switching is possible, without dimming).

FEATURES:

As a dimmer, it works with the following loads:

• conventional incandescent
• 230V halogen
• 12V low-voltage halogen (with electronic, toroidal, and conventional EL transformers)
• dimmable LED
• using the FGB001 device, it can work with any dimmable load up to 500W

Furthermore, as a switch, it can work with:

• compact fluorescent lamps
• LED bulbs
• fluorescent lamps with electronic ballasts and most conventional ballasts
• the smallest device of its kind on the market worldwide

Technical specifications:

• Power supply voltage: 230V +/-10%, 50Hz
• Output power: 25-500W (for resistive loads)
• Complies with LVD 2006/95/E, EMC 2004/108/EC, R TTE 199/5/EC standards
• Overcurrent protection: 2.5A
• System temperature limit: 105°C
• Operating temperature: 10 - 40°C
• Z-Wave radio protocol
• Radio frequency: 868.4 MHz EU; 908.4 MHz US; 921.4 MHz ANZ; 869.2 MHz RU
• For installation in junction boxes: Ø ≥ 50 mm
• Radio signal power: 1 mW
• Range: up to 50 m outdoors, up to 30 m indoors (depending on building materials)
• Dimensions (length x width x height): 42 mm x 37 mm x 17 mm
• Power consumption: less than 0.8 W
