Fibaro Z-Wave Dimmer insert module retrofits into an existing light switch enabling you to wirelessly control lights. The Fibaro modules are the smallest available, measuring just 17mm high, and can be used in 2-wire (no neutral) lighting installations.

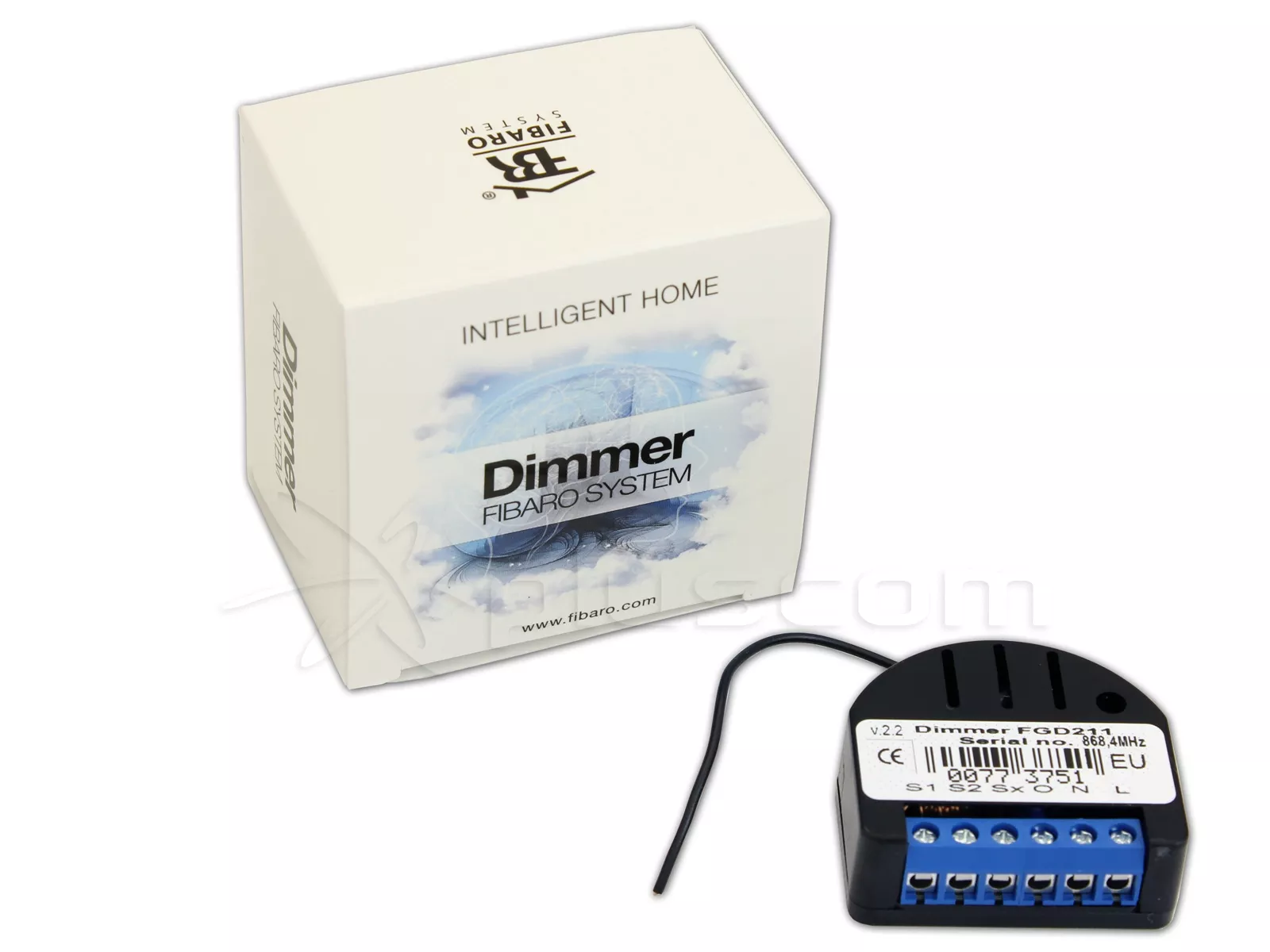

Fibaro 500W dimmer
Dimmer
automaticly recognizes connected load, is
protected from overcurrent and short circut, works noiselessly and has soft start function witch
allows soft brightening of connected load (in case of fluorescent lamps and other specific lamps i.e. with starter or some transformers of old type, it is possible only to turn on/off without possibility of dimming).
As the Dimmer it operates under the following loads:
- conventional incandescent
- halogen 230V
- low voltage halogen 12V (with electronic transformers)
- dimmable LED
- when used with FGB001 it may operate with any dimmable load up to 500W
Moreover, as an electronic switch it may work with:
- compact fluorescent lamps
- LED bulbs
- fluorescent lamps with electronic stabilisers and majority of conventional stabilisers
- when used with FGB001 it may operate with any dimmable load up to 500W
For loads other than resistive do not exceed 1.5A current.

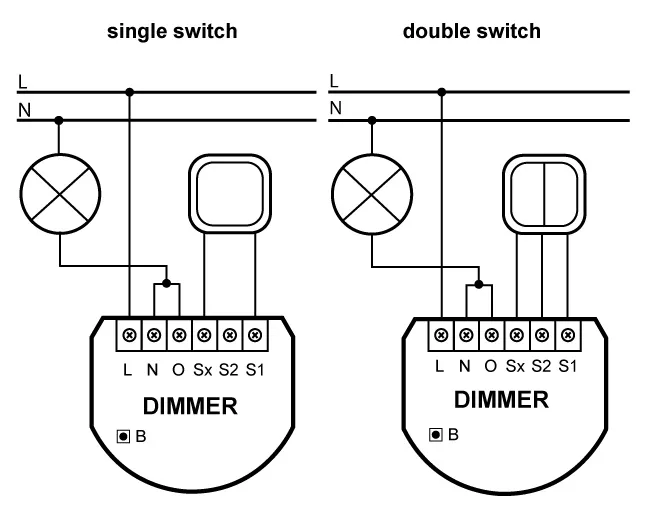

Fibaro universal dimmer 500W 2-wire connection

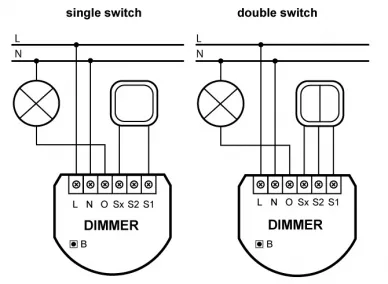

Fibaro universal dimmer 500W 3-wire connection
NOTES FOR THE DIAGRAMS:
L - terminal for live lead
N - terminal for neutral lead
O - output terminal of the Dimmer (controlling connected lighting device, or other load)
Sx - terminal for power supply to the switch connected to the Dimmer
S2 - terminal for key No. 2
S1 - terminal for key No. 1 (it has the option of entering the device in learning mode)
B- service button (used to add or remove a device from the system)
Fibaro product code: FGD-211
