Fadini NUPI 66 K66.2L Swing gate kit

1634,69 EUR including 23.00% VAT
Product code: #37288
Manufacturer: Fadini
  • Power supply: 230V AC

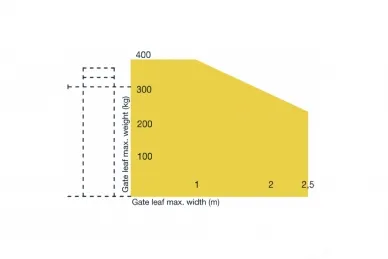

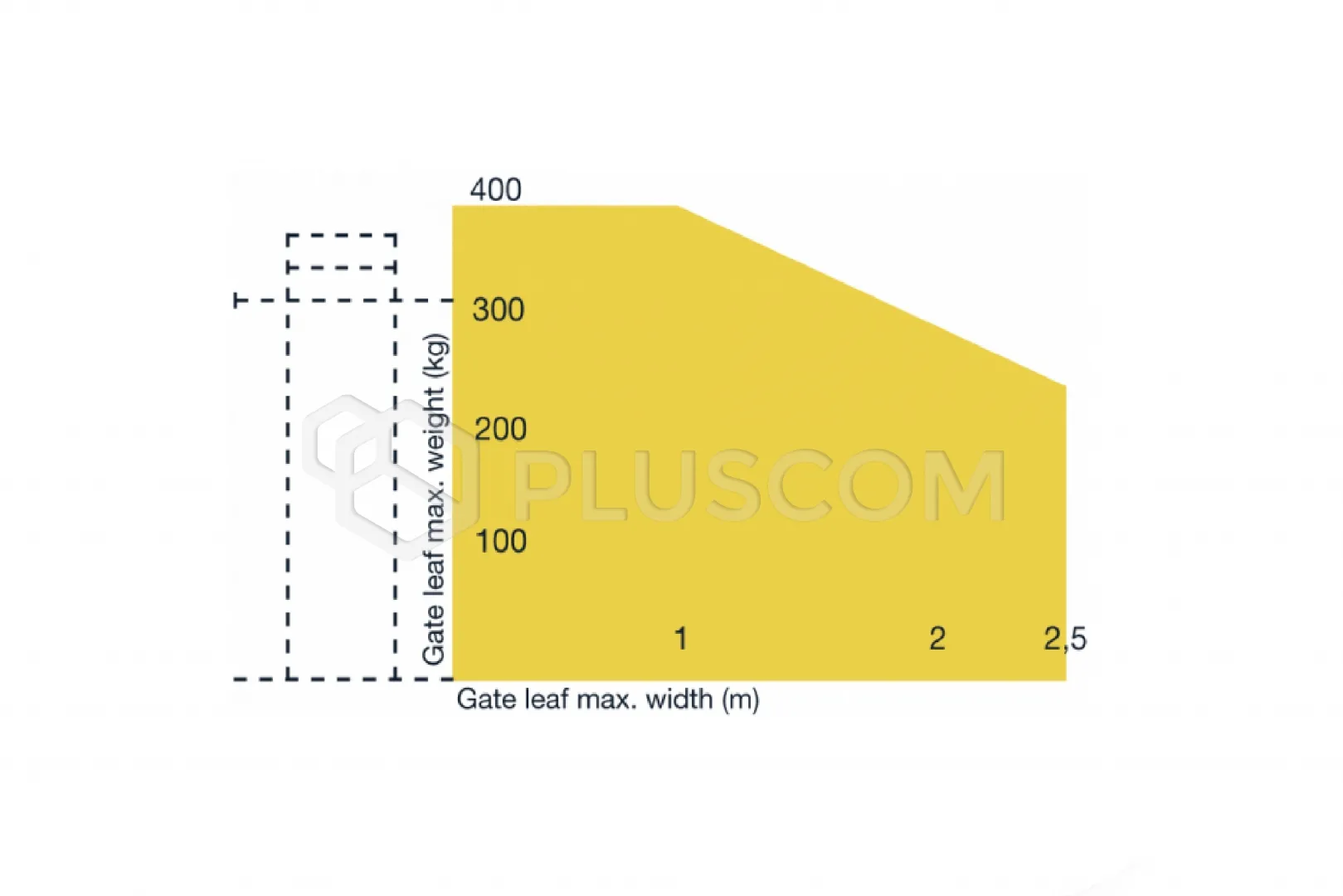

  • Max. leaf length: 2.5 m
  • Max. leaf weight: 400kg
  • For intensive use
  • Protection class: IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Fadini NUPI 66 K66.2L Set for swing gates

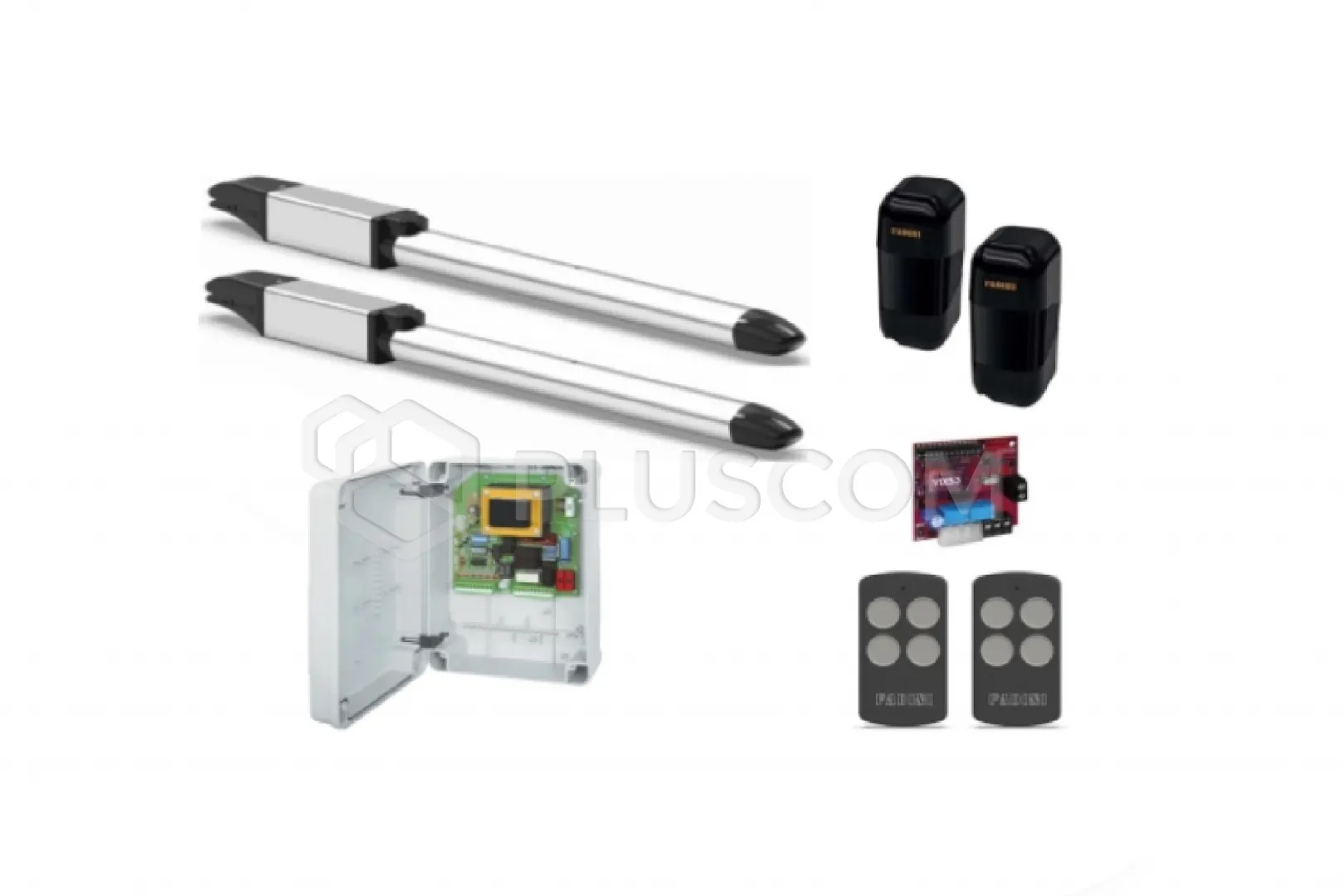

The set includes:

  • 2x FADINI NUPI 66 661L swing gate actuator lock on closing
  • 6610L ELPRO 7 RP control unit
  • 570L ORBITA 57 pair of adjustable photocells
  • 5311L VIX 53/2 R radio receiver
  • 2x TR 4-channel remote control, 868.19 MHz graphite 5313SL VIX 53/4
Fadini NUPI 66 K66.2L Swing gate kit

Fadini NUPI 66 K66.2L Swing gate kit

Complete oil-hydraulic actuator with mounting brackets from the rear and front for welding and two keys for emergency opening. For gates wider than 2 meters per leaf, an electric lock is recommended.

SAFE

Oil-hydraulic actuator with an innovative valve assembly allowing for electronic control of the thrust force. Built-in capacitor. Stylish design and selection of high-quality materials make it very resistant to weather conditions.

EASY TO INSTALL AND ADJUST

Available in a set with all accessories.

PRACTICAL

Key unlocking.

TESTED AND CERTIFIED

CE marking.

Technical data:

  • Power supply (Vac – Hz): 230 - 50
  • Power consumption (W): 250
  • Power efficiency (W): 180
  • Max. current consumption (A): 1.2

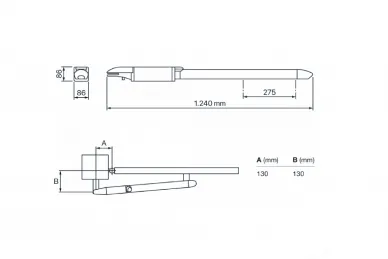

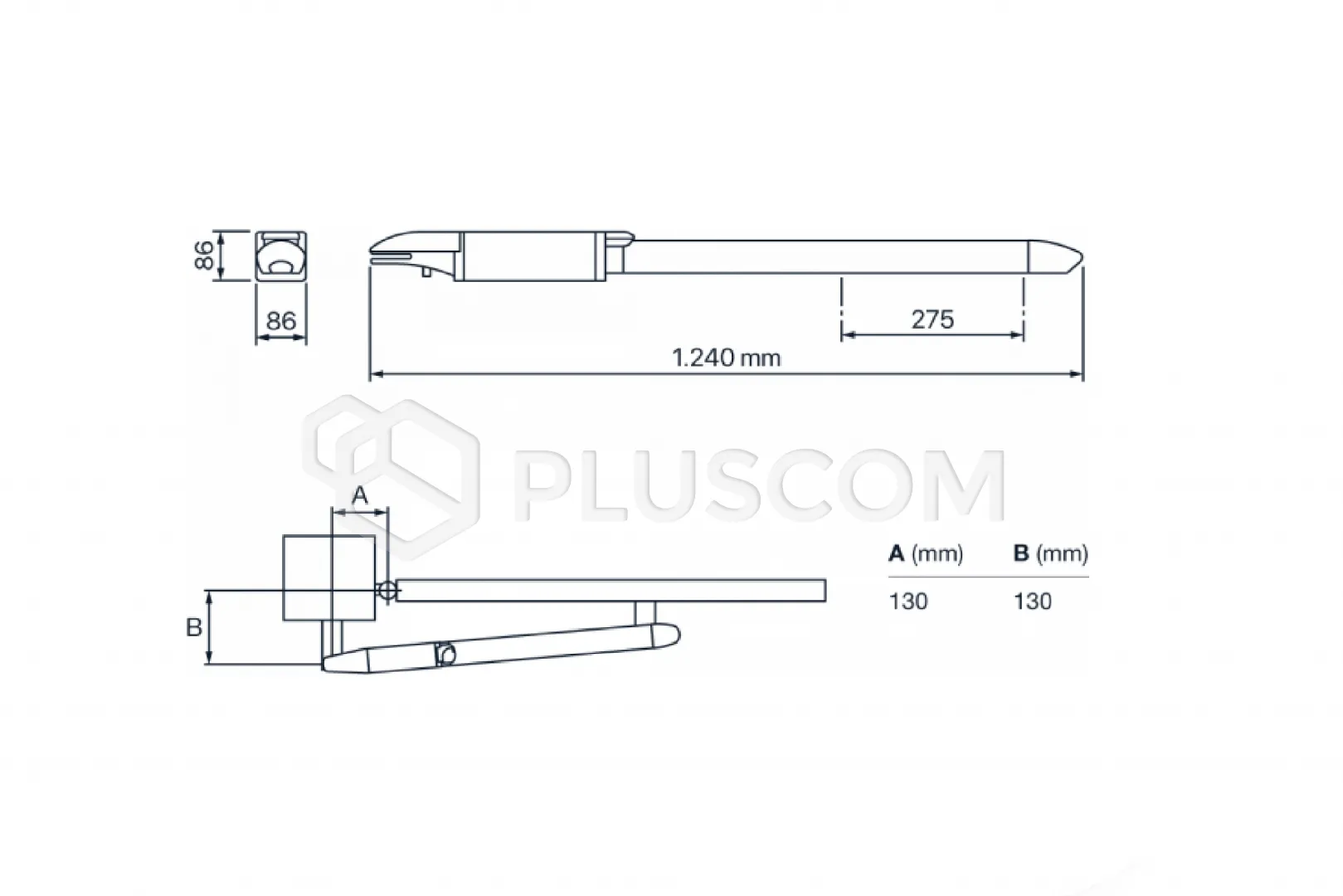

  • Rod stroke (mm): 275
  • Rod diameter (mm): 16
  • Linear opening/closing speed (mm/s): ~ 16
  • Opening force (N): 0 ÷ 5.100
  • Closing force (N): 0 ÷ 6.200
  • Operating temperature (°C): -25 ÷ +80
  • Oil type: 708L
  • IP protection class: 67
  • Use frequency: intensive
  • Weight (kg): 9.5
Download
User manual 1.76 MB
