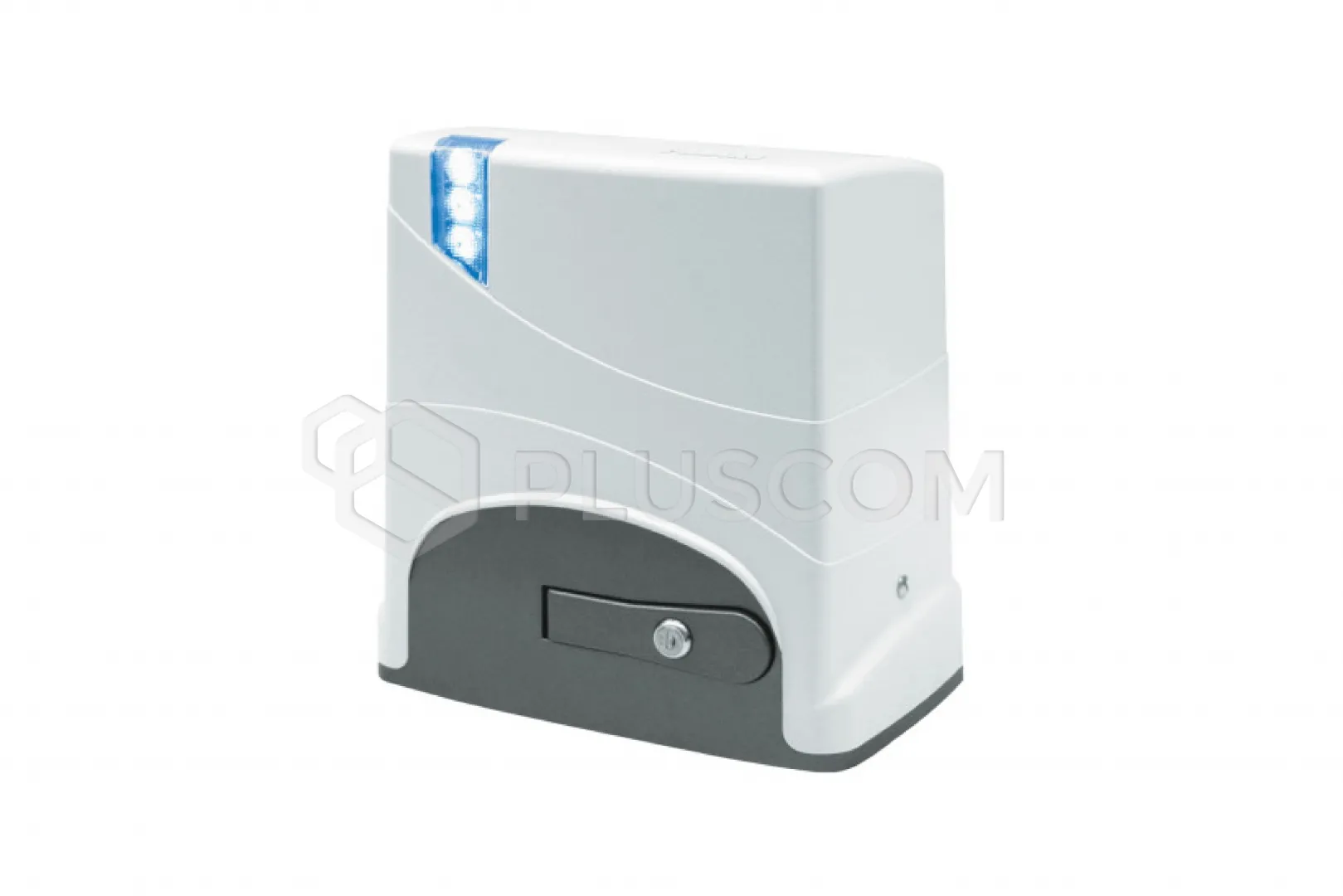

FADINI JUNIOR 633 Sliding gate operator 230V 1PH with built-in control unit
up to 600 kg
JUNIOR 633 230V 1PH (0.25 kW / 0.33 HP) electromechanical gear drive with
built-in ELPRO 65 control unit, rated for up to 600 kg, for residential and
industrial use.
An encoder for anti-crush safety, a gear for the rack, a mounting plate with
ground anchors, two keys for emergency opening, a magnetic limit switch, and a
pair of limit switch holders.
Design
Modern design with a blue LED on the housing to indicate the
automation status.
Quiet
230V AC gear motor, equipped with an oil-bath worm gear and
bronze gear wheel with ball bearings.
Intuitive and safe
Program gate movement with a single button,
accelerating and decelerating with each movement. Magnetic limit switch.
Anti-crushing system thanks to the combined action of an encoder and
amperometric obstacle detection, designed to reverse the movement.
Unlocking via an aluminum lever with a key.
Universal
For automating two gates with opposing leaves by selecting
the master/slave function in the ELPRO 65.
Tested and certified
Complies with European standards EN 12445 and EN
12453 and CE marking.
Safety device with automatic testing
Technology for automatic testing
of photocells connected to the system. If any fault is detected in a given
photocell, the system will cease operation until the problem is detected and
corrected.
This solution guarantees a high level of safety.
Device with automatic testing - safety edge strips
Safety edge strip
monitoring technology integrated into the system (meets the requirements of EN
12978 and EN 13849-1).
The actual integrity and correct operation of the safety system are constantly
monitored using a dedicated and separate microcontroller chip installed on the
board.
Any failures or loss of performance will be signaled by continuous flashing of
the diagnostic indicator lights on the safety edge strips.
Self-locking device
A hydraulic actuator with a self-locking device
that slows down the gate leaf, depending on the model, during the opening,
closing, or both phases.
Electromechanical actuator equipped with an electronic brake and a slowing
system during the opening and closing of the gate leaf.
RT DATA
A real-time control system capable of quickly responding to any
possible external events (weather conditions, temperature, mechanical friction,
etc.) that could compromise the proper operation of the system.
The microprocessor's data processing speed allows the control unit to
increase the pressure force (motor torque) to properly close and open the gate
leaf while maintaining safety conditions.
This real-time reading process is designed to provide effective support to the
installer during system adjustments.
LED DIODES
LED technology saves up to 95% energy and provides up to 50
times longer lifespan than incandescent bulbs.
High brightness and visibility. Environmentally friendly, compliant with
Directive 2005/32/EC.
Electromechanical Technology
The actuator uses a motion transmission
system using an electric motor and a speed reducer (worm and gear).
Technical Specifications:
- Power Supply: 230V - 50Hz
- Max. Power Consumption: 400W
- Max. Current Consumption: 2A
- Max. Torque: 600 N
- Motor Speed: 1,350 rpm
- Speed: 10 m/min
- Gear Ratio: 1:31
- Protection Rating: IP54
- Oil Type: 706L
- Operating Temperature: -20°C ÷ +50°C
- Motor Thermal Protection: 160°C
- Weight: 11 kg
- Use Frequency: Intensive
