FADINI HINDI 880 SPRINT K880T.2L Swing gate kit

FADINI HINDI 880 SPRINT K880T.2L Set for swing gates

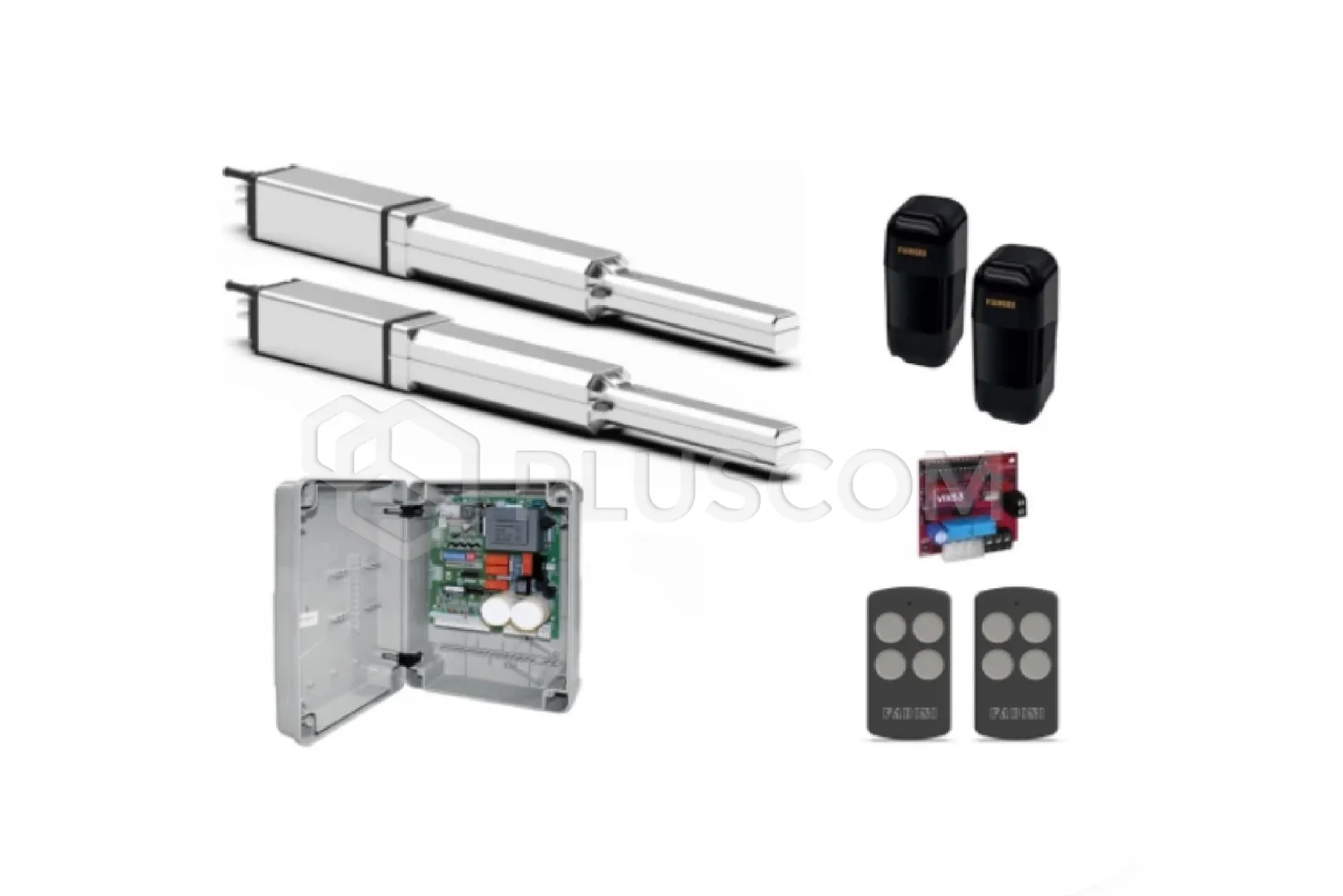

The set includes: 2x FADINI HINDI 880 889L swing gate actuator lock on closing and opening 7047L ELPRO 27 control unit 570L ORBITA 57 pair of adjustable photocells 5311L VIX 53/2 R radio receiver 2x TR 4-channel remote control, 868.19 MHz graphite 5313SL VIX 53/4

FADINI HINDI 880 SPRINT K880T.2L Swing gate kit

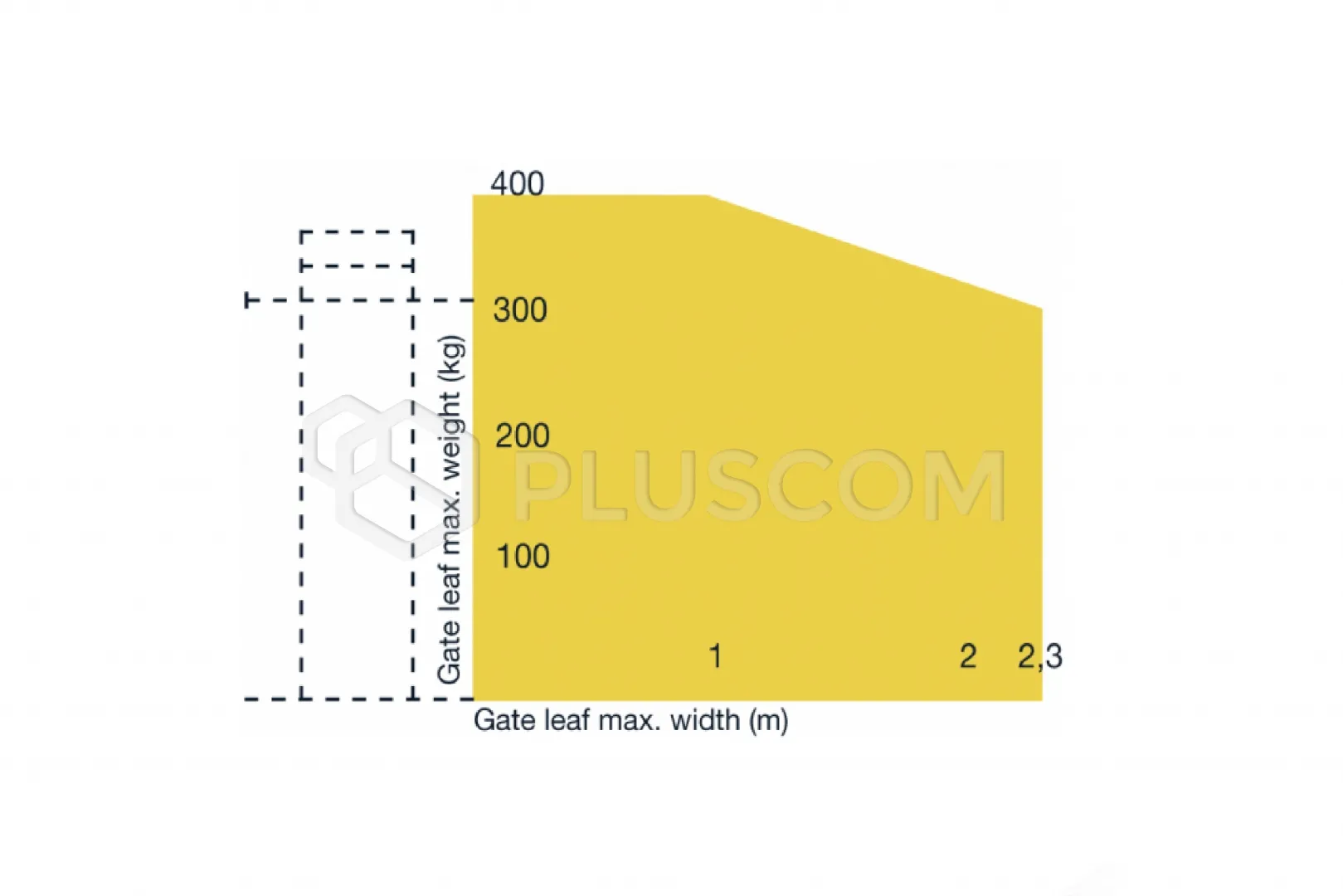

HINDI 880 SPRINT 230V 1PH oil-hydraulic actuator with manual opening function (not self-locking) for swing gates up to 400 kg and with a leaf length of up to 2.3 m.

HYDRAULIC

Safety is ensured by two valves built into the actuator. Easy release system using a key.

SOLID

Construction made entirely of aluminum. Easy to install and adjust. Available in a set with all accessories.Construction made entirely of aluminum. Easy to install and adjust. Available in a set with all accessories.

UNIVERSAL

Non-self-locking cylinders, without hydraulic lock, with hydraulic lock in closing phase or with bidirectional hydraulic lock.

Technical data:

• Power supply (Vac – Hz): 230 - 50
• Power consumption (W): 250
• Power efficiency (W): 180
• Max. current consumption (A): 1.2
• Rod stroke (mm): 235
• Rod diameter (mm): 16
• Linear opening/closing speed (mm/s): ~ 16
• Opening force (N): 0 ÷ 5.100
• Closing force (N): 0 ÷ 6.200
• Operating temperature (°C): -25 ÷ +80 [F]
• Oil type: 708L
• IP protection class: 67
• Use frequency: intensive
• Weight (kg): 9.5
