Fadini DARDO 430 K430.2L Swing Gate Kit

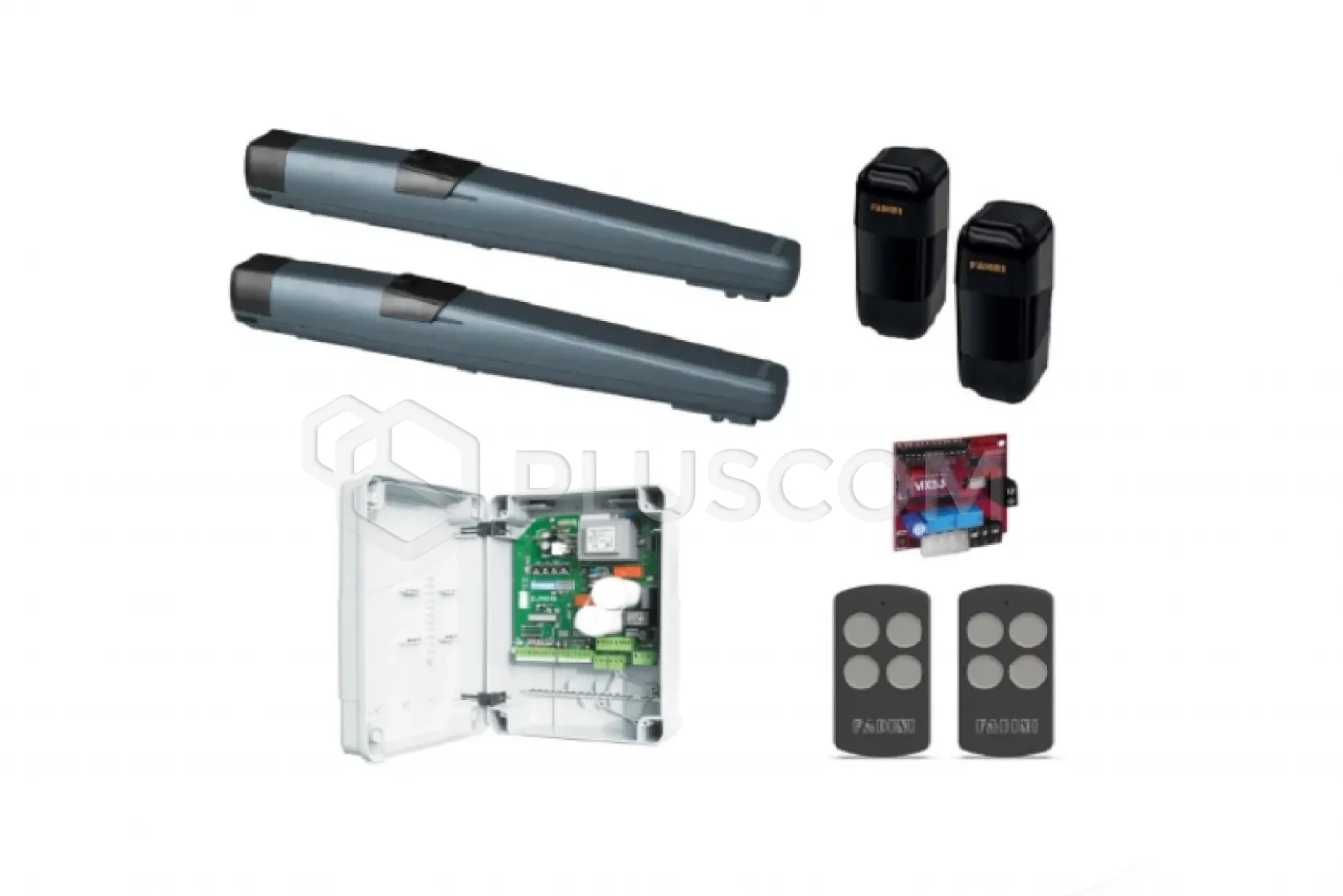

The kit includes:
- 2x FADINI DARDO 430L swing gate actuator
- 4300L ELPRO 43 control unit
- 570L ORBITA 57 pair of adjustable photocells
- 5311L VIX 53/2 R radio receiver
- 2x TR 4-channel remote control, 868.19 MHz graphite 5313SL VIX
53/4
|
Fadini DARDO 430 K430.2L Swing gate kit
|

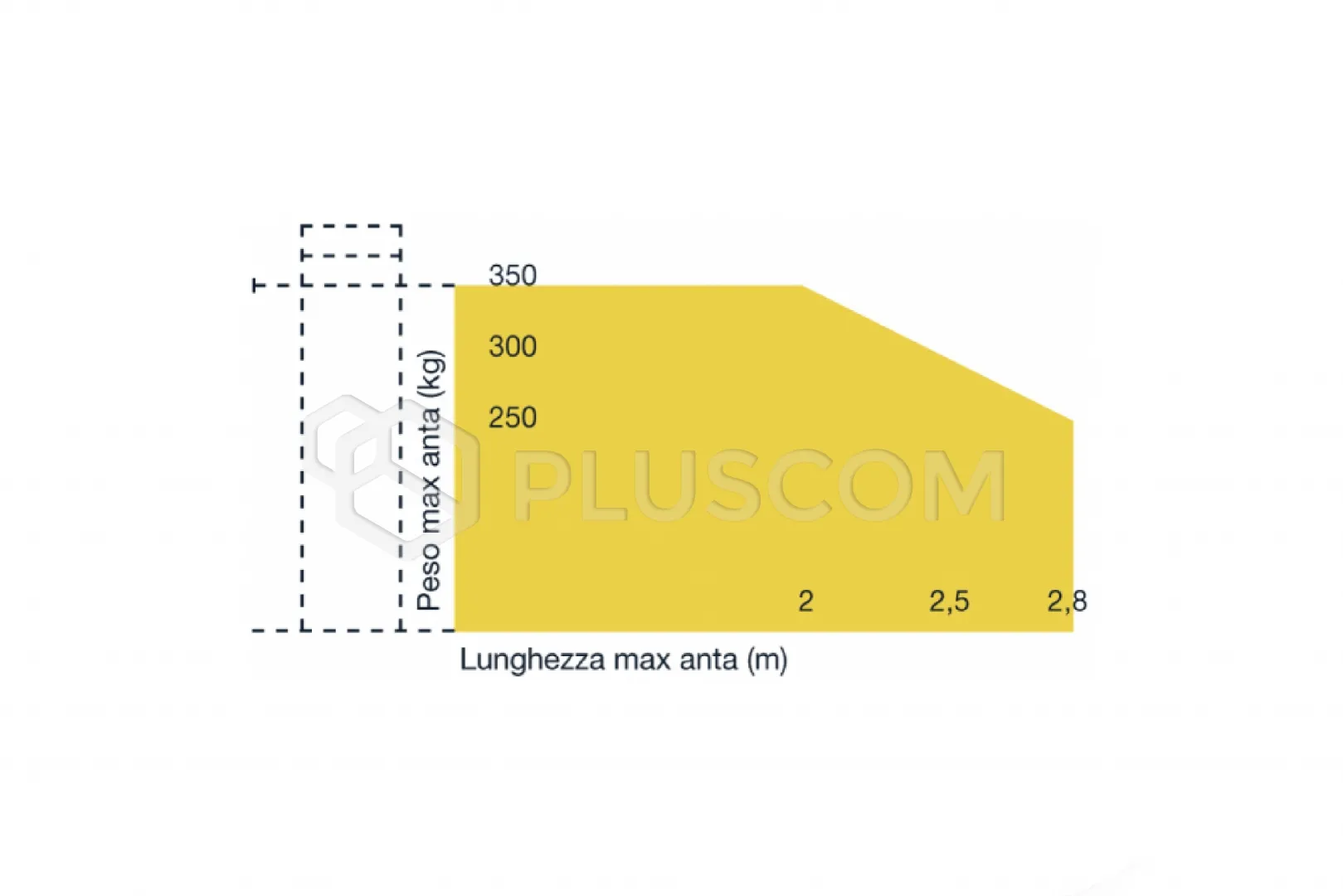

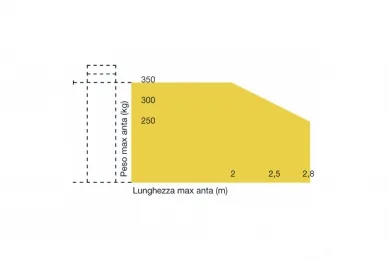

Electromechanical actuator with rear and front mounting brackets with screws, built-in limit switches for opening and closing, cable seal for power supply and encoder, two keys for opening the sliding cover protecting the emergency opening device. For gates wider than 2 meters per leaf, an electric lock is recommended.
SILENT
230 V AC self-locking electromechanical actuator. Mechanism with rolled steel screw, brass nut, Teflon gear wheel, cross bearing and lubricated slide bearing.
EASY TO USE
Unlocking that allows manual opening of the leaf using the same key used to open the protective housing.
INTUITIVE
Automatic programming of the leaf delay or manual programming using a simple button located on the ELPRO 43 control unit. Mechanical limit stops during opening and closing with adjustment on the housing.
SAFE
Anti-crushing system thanks to the combined action of the encoder and amperometric obstacle detection, aimed at correct operation of the actuator and reversal of the direction of movement. Acceleration and deceleration with each movement.
SOLID AND COMPACT
Die-cast aluminium protective housing with polyester powder coating.
Technical data:
- Power supply (Vac – Hz): 230 - 50
- Power consumption (W): 300
- Max. current consumption (A): 1.7
- Opening time 90° (s): 16 ÷ 20 [D]
- Maximum torque (N): 3.000
- Linear opening/closing speed (mm/s): 16 ÷ 20 [D]
- Operating temperature (°C): -20 ÷ +50 [F]
- Motor thermal protection (°C): 160

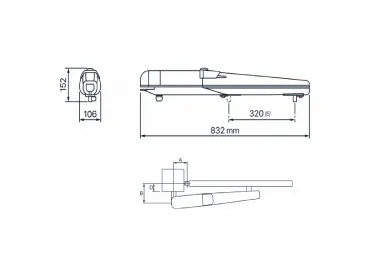

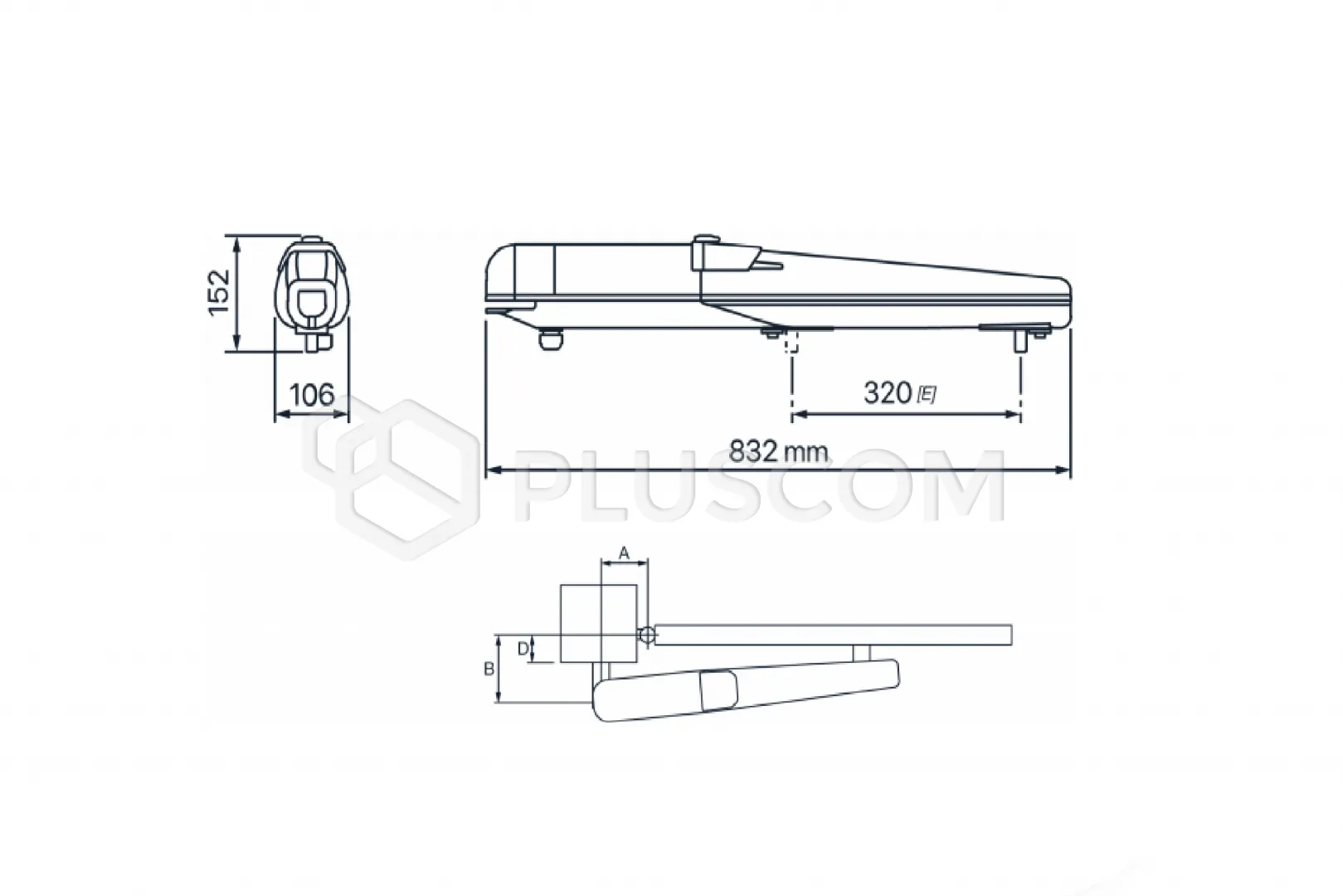

- Usable stroke (mm): 320 [E]
- IP protection class: 44
- Use frequency: residential
- Weight (kg): 8
