Fadini BART 350 K350.2L Swing gate kit

Fadini BART 350 K350.2L Swing gate kit

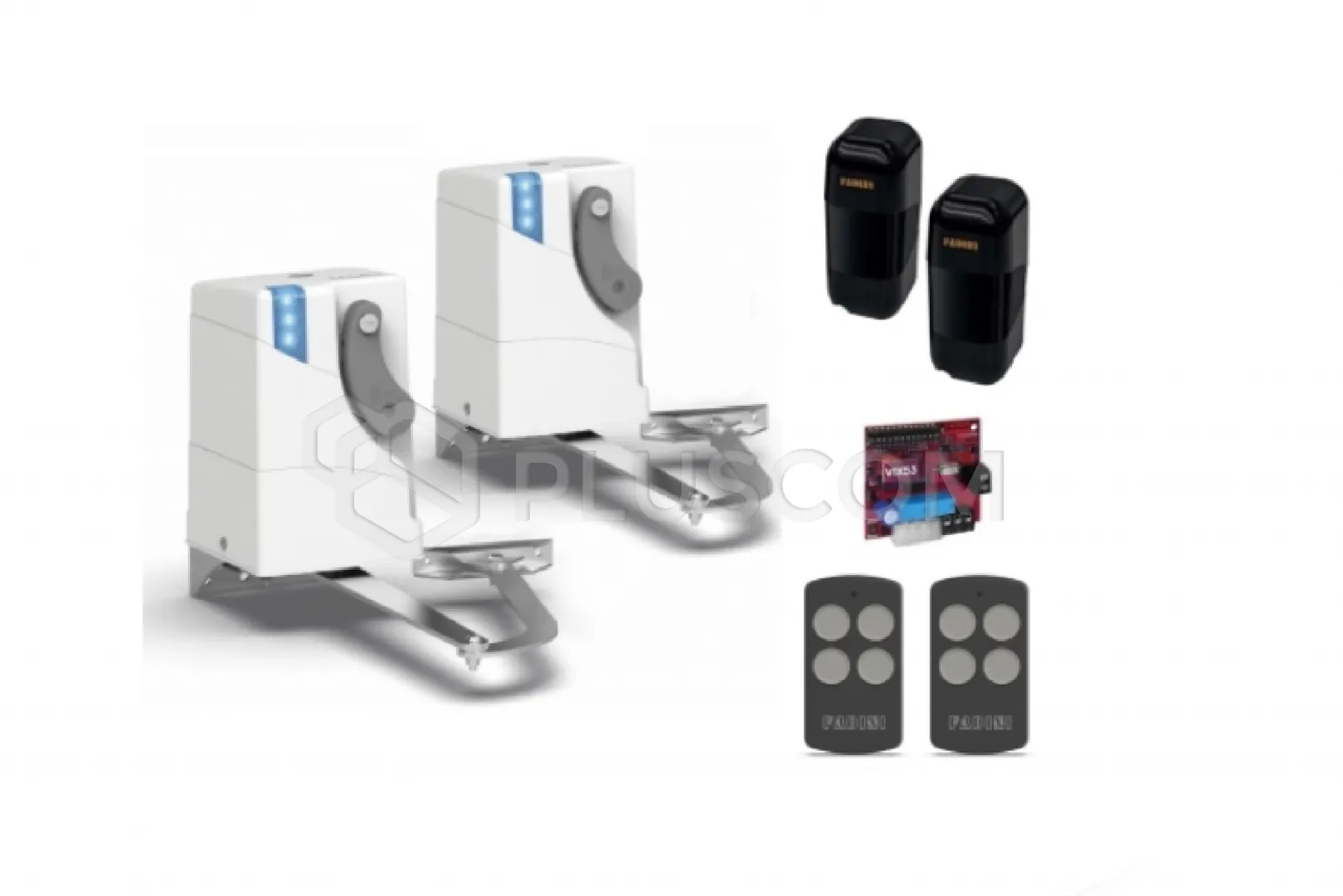

The kit includes: FADINI BART 350 351L swing gate actuator, built-in BART 350 Master 24 Vdc ELPRO 35M control unit FADINI BART 350 352L swing gate actuator, built-in ELPRO 35S control unit (slave) 2x 358L articulated arm 570L ORBITA 57 adjustable photocell pair Radio receiver 5311L VIX 53/2 R 2x TR 4-channel remote control, 868.19 MHz graphite 5313SL VIX 53/4

Fadini BART 350 K350.2L Swing gate kit

Complete gear drive with mounting plate, two cams and three limit microswitches, mechanical gate stop in open position, two keys for emergency opening and electronic control board (ELPRO 35M for code 351L or ELPRO 35S for code 352L).

DESIGN

Modern design with blue LED on housing to identify automation status.

SILENT

Self-locking actuator powered by 24 V DC with ball bearing.

INTUITIVE

Automatic programming of opening and slowing times on bumpers or limit switches using a single button. Manual setting of the leaf delay.

SAFE

Anti-crushing system thanks to the combined action of the encoder and amperometric obstacle detection, aimed at correct operation of the actuator and reversal of the direction of movement.

SOLID AND COMPACT

Mounting plate made of galvanized steel. Articulated arm made of galvanized steel. Microswitch of the limit switch and bumper when opening (standard) and when closing (optional). Unlocking using a lever and key.

TESTED AND CERTIFIED

Compliant with European standards EN 12445 and EN 12453.

Technical data:

• Power supply (Vac – Hz): 230 - 50
• Motor voltage (Vdc): 24
• Power consumption (W): 150
• Current consumption (A): 5
• Max. torque (Nm): 180
• Open-close time (s): 16 (95°)
• Operating temperature (°C): -20 ÷ +50
• IP protection class: 53
• Lubrication type: grease
• Weight (kg): 10
• Frequency of use: intensive
