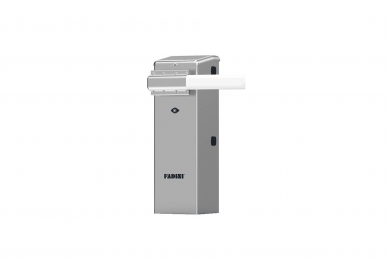

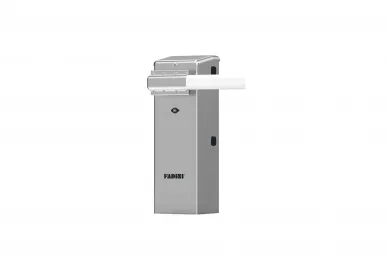

Fadini 9813SXL BAYT 980 Hydraulic Automatic
Left-Hand Barrier for a 6.4m arm in a stainless steel housing
KIT INCLUDES:
- Barrier unit with motor-pump-piston assembly COS 982
- ELPRO 980 electronic control unit
- 6.4m aluminum arm
- Arm mounting bracket
- Galvanized steel base with screws and nuts
- Blue LEDs on the housing
|
Fadini 9813SXL BAYT 980 Left-hand barrier for 6.4m arm
|
This automatic barrier is ideal for high-traffic installations: parking
lots, private entrances, public passages, and industrial, residential, and
urban areas.
Hydraulic actuator powered by 230 V AC, consisting of a housing with a door, a
set of two keys, a COS 982 control-piston unit, an ELPRO 980 control unit, a
power cut-off switch, a bracket for mounting the aluminum arm, a galvanized
anchor plate with anchor bolts and nuts, and a blue LED on the housing.
Reinforced structure made of brushed AISI 304 stainless steel.
The 6.4m long, anodized aluminum arm with an oval cross-section and a 6m clear
opening is highly wind-resistant. A wide range of accessories that can be added
to the boom provide greater safety and visibility:
- Boom with aluminum curtain
- Boom with integrated LED lighting
- Ensuring good visibility at night (flashing semaphore effect
optional)
- Joint for articulated boom allowing for installation in covered
areas
- Flange protecting the boom in the event of a collision with a
vehicle
QUICK INSTALLATION
The control unit is located in the upper part of the housing, in a dedicated
space. "Master/slave" function for operating opposing barriers.
TECHNICAL DATA:
- Power supply: 230V AC
- Power consumption: 510W
- Current consumption: 2.4A
- Power output: 0.37 - 0.5 kW – HP
- Operating temperature: -20°C ÷ +80°C
- Operating pressure: 20 atm
- Max. Pressure: 40 atm
- Piston: ø 40
- Opening time 8 sec
- Use frequency: very intensive
- Protection class: IP 65
- Oil type: 708L
- Tank capacity: 2.5L
- Weight without beam: 75kg
