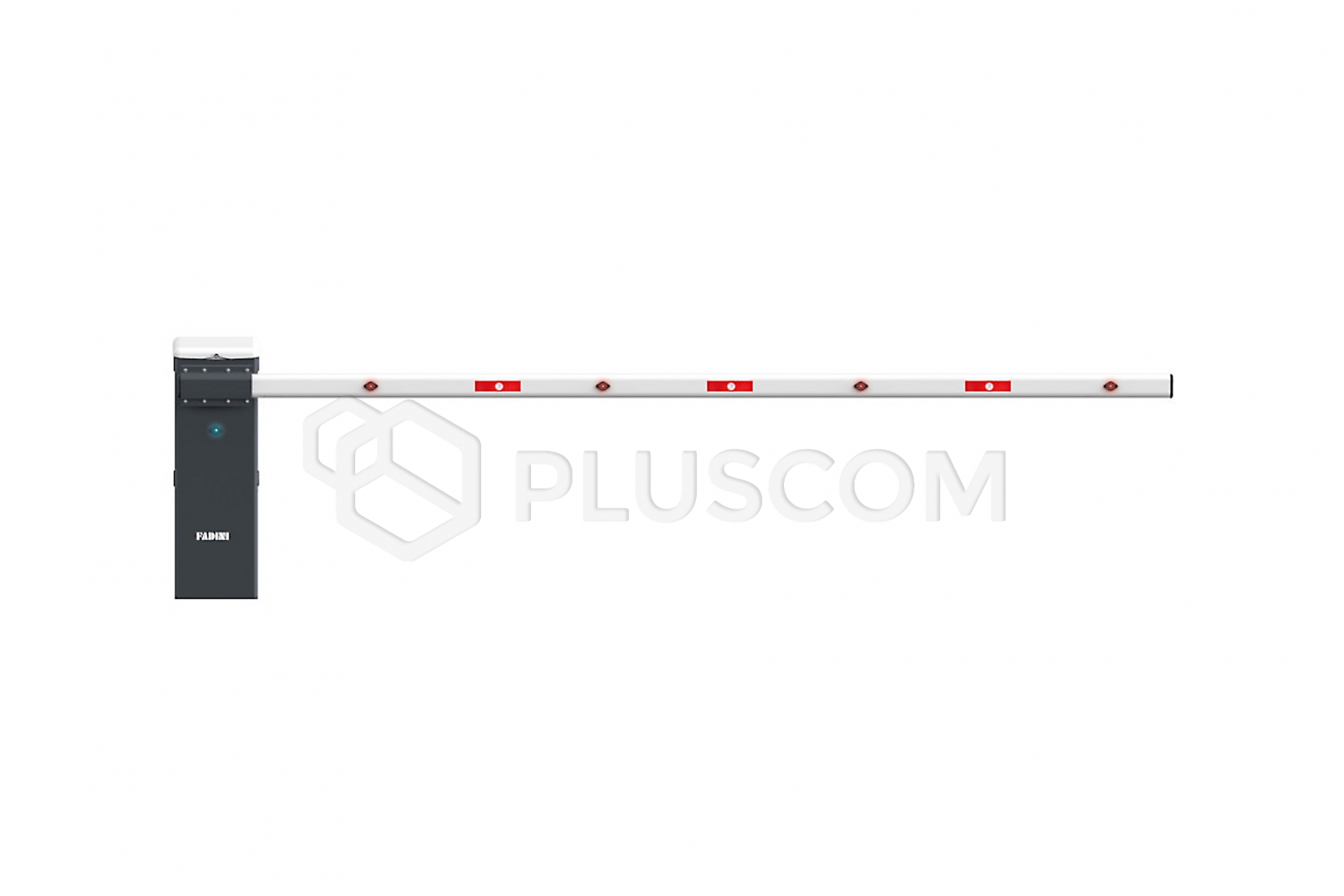

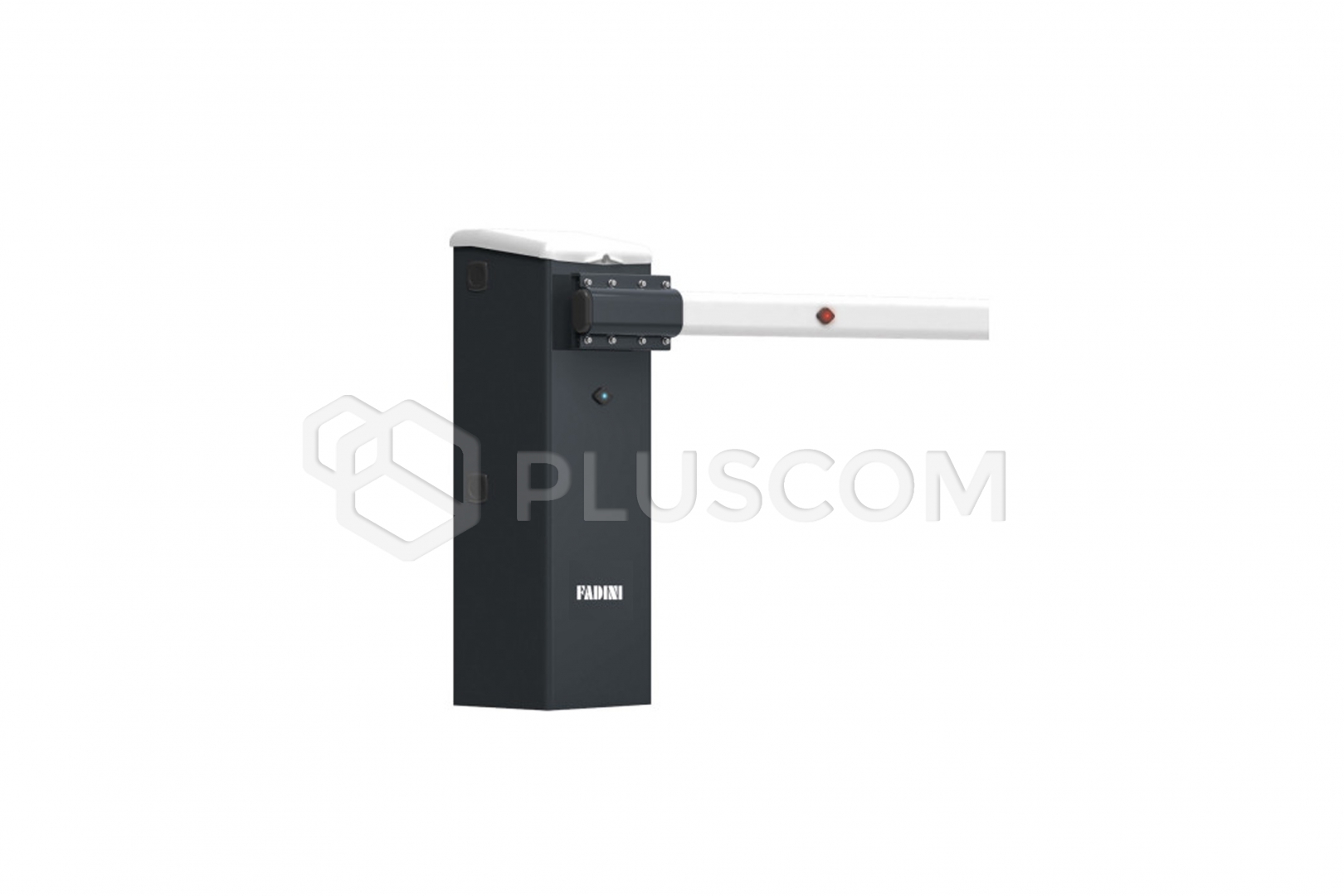

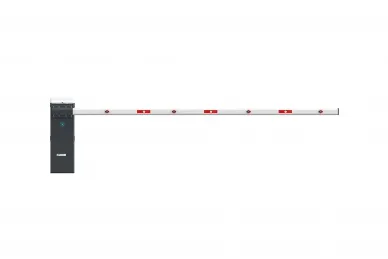

Fadini 9805SXL BAYT 980 Leeft-hand barrier for 8.5m arm

2872,51 EUR including 23.00% VAT
Product code: #37242
Manufacturer: Fadini
  • THE KIT:
  • Barrier unit with motor-pump-piston assembly COS 982
  • ELPRO 980 electronic control unit
  • 8.5m arm (8m wide passage light)
  • Power cut-off switch, blue LEDs on the housing
Delivery and tax:
Poland VAT: 23.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 9758L Fixed support with height adjustment for operating the BAYT 980 barrier electric lock Fadini 1968L Set of 6 Counterweights and Mounting Bracket Fadini ALA.180 9897L Balancing bracket for BAYT 980 barrier Fadini 1942L Elliptical aluminum arm 6.4 m for BAYT 980 barrier Fadini 9757L AISI stainless steel fixed support with height adjustment for operating the BAYT 980 barrier electric lock Fadini 1967L Set of 4 Steel Tension Cables Fadini 9888L Blue LED 24V AC with complete lens, bracket and power cord Fadini 1913L Set of 10 red reflective shoulder stickers for the BAYT 980 barrier Fadini 9756L Fixed support designed to operate the BAYT 980 barrier magnetic electric lock Fadini 1965L Set of 4 Counterweights and Mounting Bracket

Fadini 9805SXL BAYT 980 Left-Hand Hydraulic Automatic Barrier for 8.5m Arm


KIT INCLUDES:
  • Barrier unit with motor-pump-piston assembly COS 982
  • ELPRO 980 electronic control unit
  • 8.5m aluminum arm
  • Arm mounting bracket
  • Galvanized steel base with screws and nuts
  • Blue LEDs on the housing
Fadini 9805SXL BAYT 980 Leeft-hand barrier for 8.5m arm

Fadini 9805SXL BAYT 980 Leeft-hand barrier for 8.5m arm
This automatic barrier is ideal for high-traffic installations: parking lots, private entrances, public passages, and industrial, residential, and urban areas.

Hydraulic actuator powered by 230 V AC, consisting of a housing with a door, a set of two keys, a COS 982 control-piston unit, an ELPRO 980 control unit, a power cut-off switch, a bracket for mounting the aluminum arm, a galvanized anchor plate with anchor bolts and nuts, and a blue LED on the housing.

Reinforced construction made of powder-coated steel with high resistance to weather conditions (polyester paint in two colors: RAL 7016 anthracite and 9006 SW306I finely textured gray, for the top housing and door).

The 8.5m long, anodized aluminum arm with an oval cross-section and a 8m clear opening is highly wind-resistant. A wide range of accessories that can be added to the boom provide greater safety and visibility:
  • Boom with aluminum curtain
  • Boom with integrated LED lighting
  • Ensuring good visibility at night (flashing semaphore effect optional)
  • Joint for articulated boom allowing for installation in covered areas
  • Flange protecting the boom in the event of a collision with a vehicle
QUICK INSTALLATION
The control unit is located in the upper part of the housing, in a dedicated space. "Master/slave" function for operating opposing barriers.

TECHNICAL DATA:

  • Power supply: 230V AC
  • Power consumption: 510W
  • Current consumption: 2.4A
  • Power output: 0.37 - 0.5 kW – HP
  • Operating temperature: -20°C ÷ +80°C
  • Operating pressure: 20 atm
  • Max. Pressure: 40 atm
  • Piston: ø 60
  • Opening time 19 sec
  • Use frequency: very intensive
  • Protection class: IP 65
  • Oil type: 708L
  • Tank capacity: 2.5L
  • Weight without beam: 75kg
