Fadini 9697L TALOS M30 Automatic post for area protection 800/275

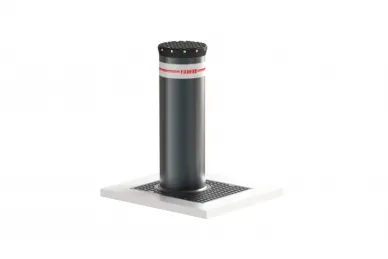

FADINI TALOS fixed post with a height of 800mm and a diameter of 275mm in anthracite grey colour. Flat head. Impact resistance 150,000J. Breakage resistance 700,000J. Thickness 12mm. S355J steel.
AREA SECURITY
Created for the needs of vehicle access control and protection of particularly sensitive areas, where a high level of area protection is required. Designed in accordance with the requirements of ASTM F2656-07, PAS 68:2013, IWA 14-1.
HYDRAULIC MECHANISM
Hydraulic locking that holds the post column in the extended position (as standard) and emergency manual lowering using the key supplied with the device. Anti-theft cover that prevents access to the lock release mechanism for unauthorized lowering of the post.
DURABLE CONSTRUCTION
Scratch-resistant steel cylinder protected by cataphoresis and covered with a polyester powder coating. Also available with a cover made of satin AISI 304 stainless steel, 12/10 thickness. Resistance to breakage: 700,000 J. IP 66 connector and junction box. Hall effect limit switches, rubber seal on the cover of the post, integrated LED warning lights.
VERSALITY
A wide range of control and safety accessories enables reliable and precise control of devices. An audible signal that activates when the post is raised or lowered. A heater that allows the post to operate at low temperatures down to -40 °C in areas where weather phenomena such as snow and frost often occur. The control unit can be configured to operate several posts simultaneously.

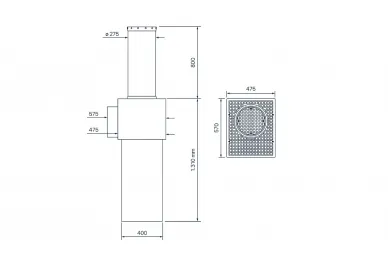

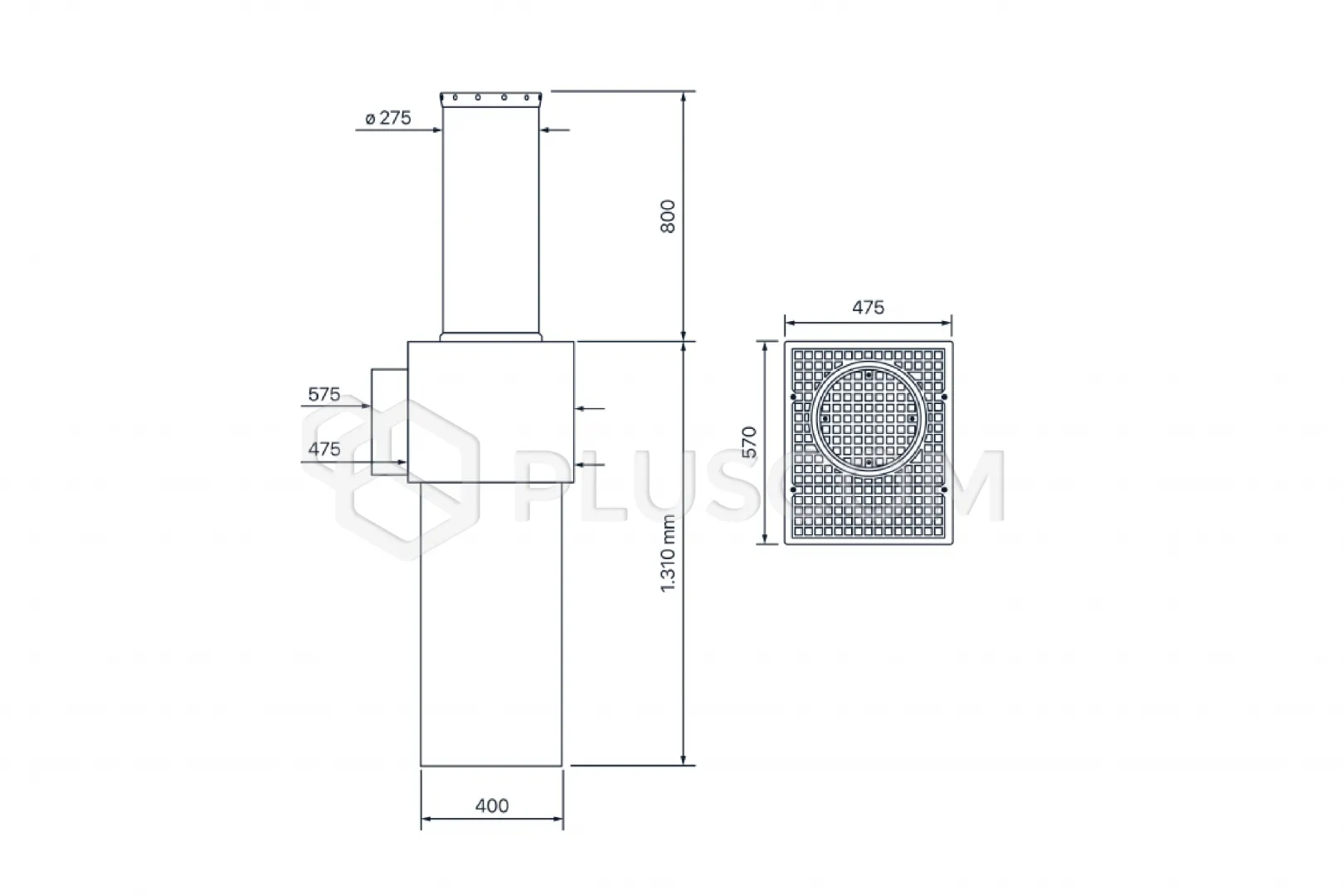

Technical data:
- Cylinder diameter (mm): 275
- Cylinder thickness (mm): 12
- Cylinder height above ground (mm): 800
- Cylinder material: S355J2H steel
- Cylinder treatment and finish: cataphoresis and powder coating
- RAL 7016 polyester | AISI 304 brushed steel sleeve
- Housing: hot-dip galvanized
- Lifting time (s) [cm/s]: ~4.50 [18]
- Falling time (s) [cm/s]: ~3.42 [23]
- Operating temperature (°C): -20 ÷ +80 (-40 with heater)
- Oil type: 708L
- Power supply (Vac – Hz): 230 - 50
- Power consumption (W): 1.100
- Current consumption (A): 1.8 ÷ 3.5
- IP protection class/engine-pump: 67
- Frequency of use (cycles/day): very heavy load / 2.000
- Impact resistance (J): 150.000
- Break resistance (J): 700.000
- Max. static load (kg): 20.000
