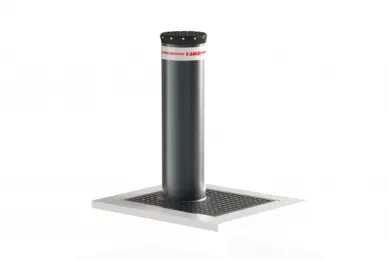

Fadini 9695L Fixed anti-terrorist parking bollard TALOS M50 275/1000
Anti-terrorist fixed bollard for the protection of sensitive areas such as: military bases, airports, embassies, consulates, banks. Ideally suited to the automatic version of the TALOS M30 bollard. Designed for concreting the foundation and formwork with appropriate reinforcement - according to the required crack resistance characteristics.
S355J steel cataphoretically coated and polyester powder coating. (All pre-configured as standard to mount 9 LEDs; the holes are plugged with plastic plugs of the same shape as the LEDs).
PERIMENTAL SECURITY
Designed for vehicle access control and protection of facilities exposed to terrorist attacks (embassies, military bases, ministerial buildings, banks, etc.), where a high level of perimeter security is required.
Designed and tested to independently stop a 7.5 t vehicle moving at 80 km/h; as a result of a collision, the bollard remains fully functional and its structure remains intact. Also available with the EFO (Emergency Fast Operation) function, enabling rapid extension of the bollard in emergency situations.
HYDRAULIC MECHANISM
- Hydraulic locking system that keeps the post column in the extended position (as standard) and emergency manual lowering using the key supplied with the device.
- Hydraulic unit with two cam pumps
- Anti-theft cover that prevents access to the lock release mechanism for unauthorized lowering of the post
RUGGED CONSTRUCTION
Scratch-resistant steel cylinder protected by cataphoresis and covered with a polyester powder coating.
Also available in a version with a cover made of 12/10 thick AISI 304 satin stainless steel. Break-resistant: 2,000,000 J. IP 66 connector and junction box. Hall effect limit switches, rubber seal on the column cover, integrated LED warning lights.
VERSALITY
A wide range of control and safety accessories enables reliable and precise control of the devices.
- Audible signal that activates when the post is raised and lowered
- A heater that allows the post to operate at low temperatures down to -40 °C in areas where weather phenomena such as snow and frost often occur
- The control unit can be configured to operate several posts simultaneously
CERTIFICATES
Strength parameters: K12 / M50 / C750
Certified:
- ASTM F2656-15 C750
- PAS 68:2013 V/7500 (N3)/80
- IWA 14-1:2013 V/7200 [N3C]/80

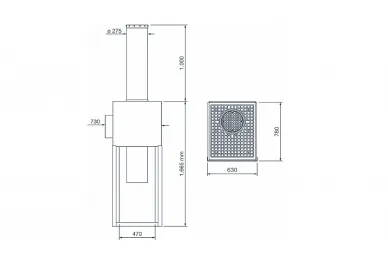

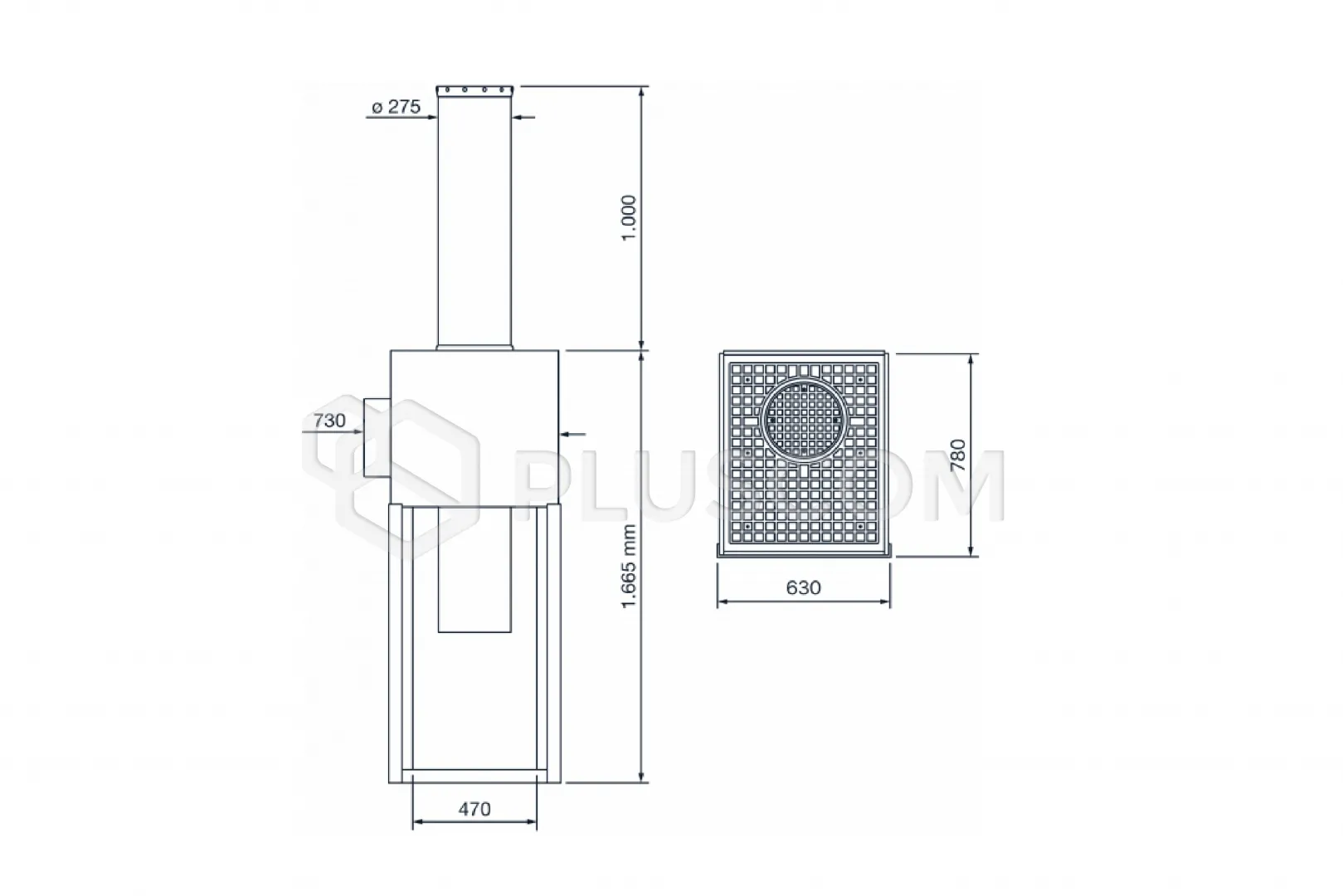

Technical data:
- Cylinder diameter (mm): 275
- Cylinder thickness (mm): 20
- Cylinder height above ground (mm): 1.000
- Cylinder material: S355K2H steel
- Cylinder treatment and finish: cataphoresis and powder coating
polyester RAL 7016 | Brushed SS AISI 304 steel sleeve

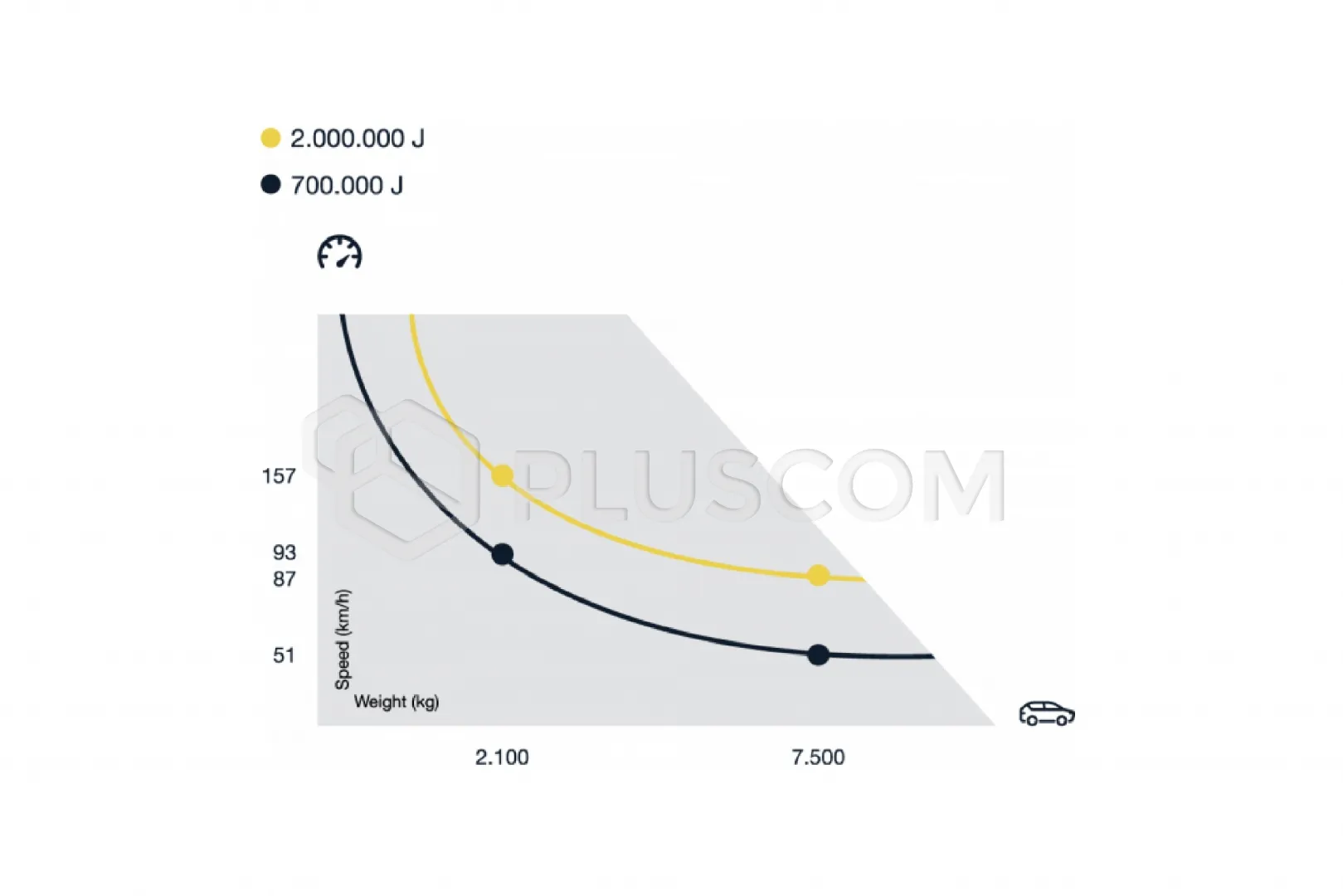

- Impact resistance (J): 700.000
- Break resistance (J): 2.000.000
- Weight (kg): 300
