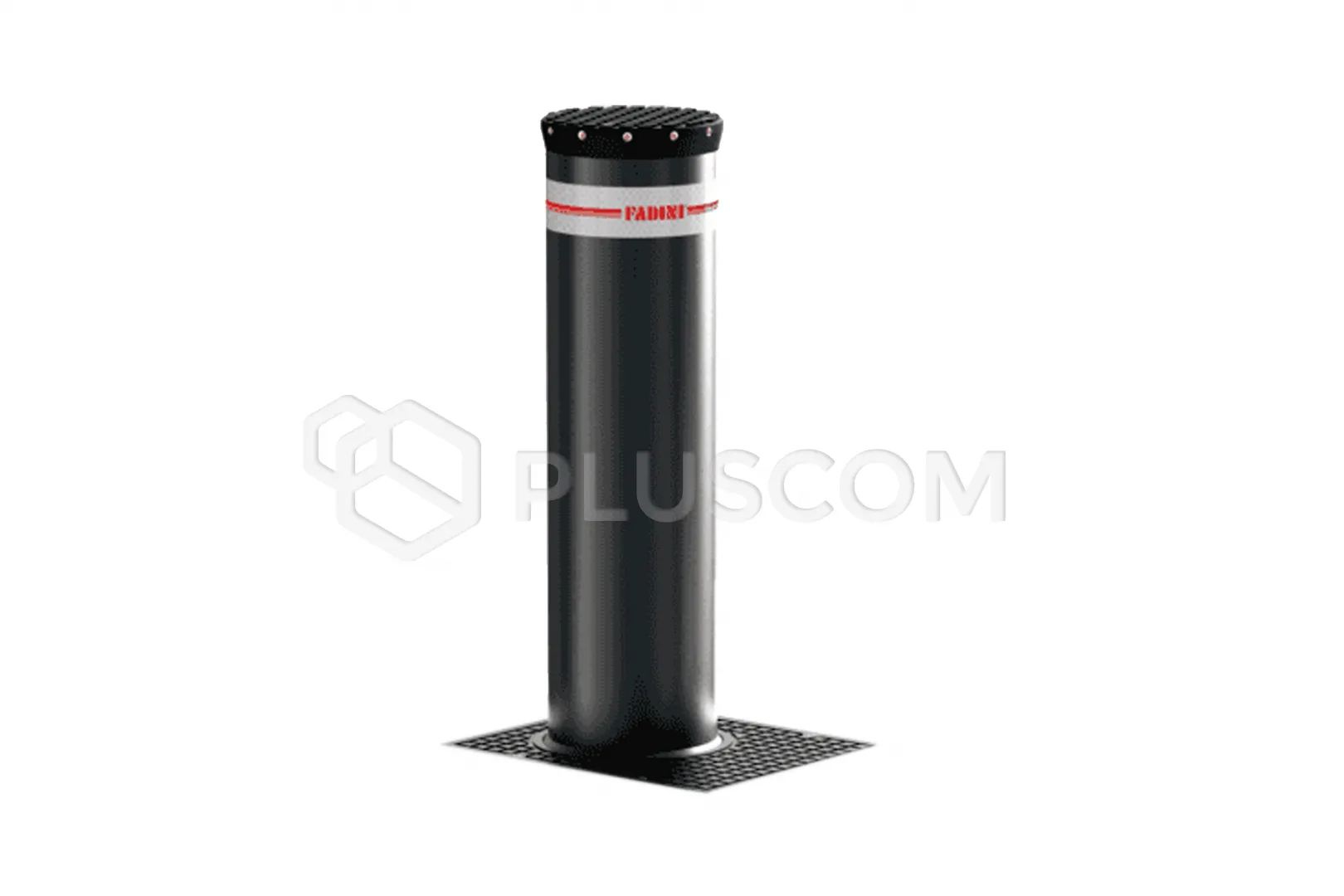

Fadini 9690L TALOS M50 Automatic Parking Bollard, 275mm diameter, 1000mm
height
Designed for vehicle access control and the protection of facilities vulnerable
to terrorist attacks (embassies, military bases, ministerial buildings, banks,
etc.), where a high level of perimeter security is required. Designed and
tested to independently stop a 7.5-ton vehicle traveling at 80 km/h, the
bollard remains fully functional and structurally intact in the event of a
collision.
Scratch-resistant steel cylinder treated with cataphoresis and polyester powder
coating. Impact resistance: 2 000,000 joules. IP 66 connector and junction box.
Hall effect limit switches, rubber gasket on column cover, integrated LED
warning lights.

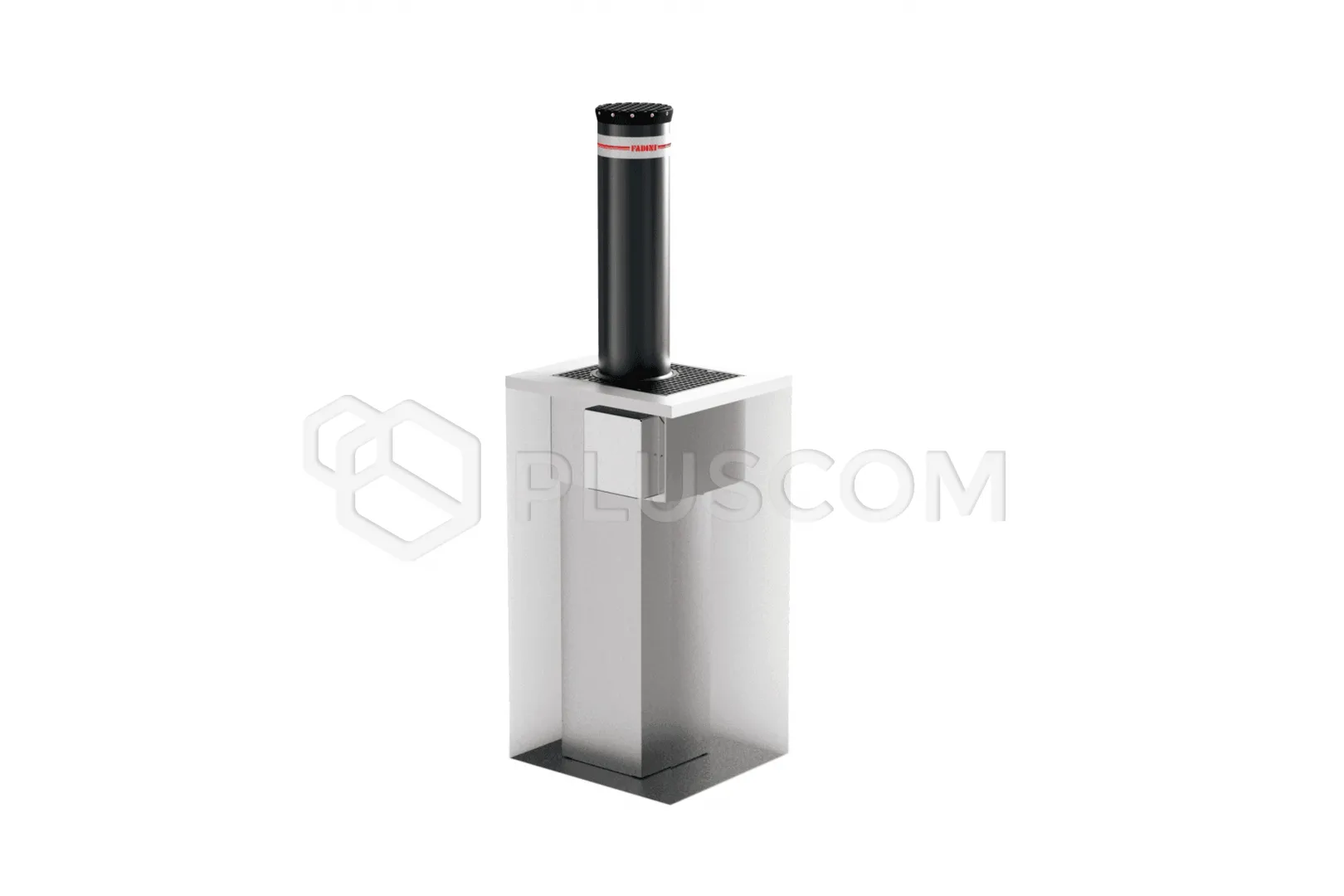

The is located inside the post, which is maintained at a depth of 50 cm.
A hydraulic lock holds the post column in the extended position (standard) and
allows for emergency manual lowering using the key supplied with the device. A
cover with anti-burglary protection that prevents access to the lock release
mechanism to allow unauthorized lowering of the post.
A wide range of control and safety accessories enables reliable and precise
device control. An audible signal activates when the bollard is raised or
lowered. A heater enables the bollard to operate at temperatures as low as
-40°C in areas prone to snow and frost. The control unit can be configured to
operate multiple bollards simultaneously.
TECHNICAL DATA:
- Post diameter: 275mm
- Post thickness: 20mm
- Post height: 1000mm
- Limit: 500mm
- Power supply: 230Vac - 50Hz
- Power consumption: 3.100 (1.550 + 1.550)W
- Current: 10 ÷ 13A
- Impact resistance: 700,000J
- Break resistance: 2 000,000J
- Lifting time: ~5s
- Drop time: ~3.2s
- Operating temperature: -20°C + 80°C
- Oil type: FADINI oil - code 708L
- Oil pump protection class: IP67
- Use frequency: intensive
- Weight: 770kg
